– 42 –

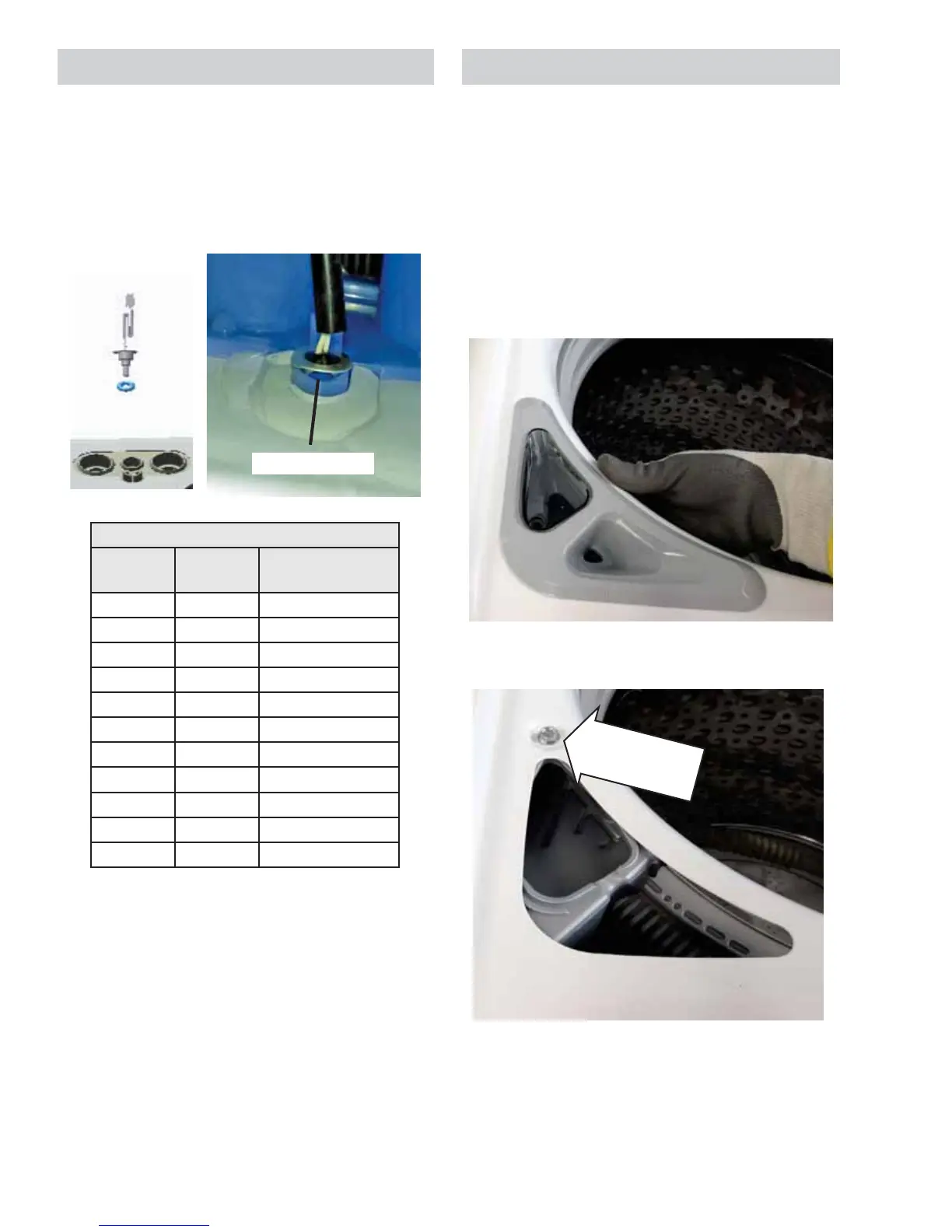

The thermistor and harness comes as one
assembly that connects to the control board.
The thermistor also comes with an O-ring that
creates a water tight seal around the probe.
When reinstalling the thermistor, ensure that the
thermistor is seated properly. If it bulges, it will not
seal properly.
Thermistor
Bulging O-ring
Thermistor Resistance Table
Temp
(°C)
Temp
(°F)
5HVLVWDQFH
10 50 19901
15 59 15713
20 68 12493
28 82.4 8833
32 90 7446
38 100 5807
44 111 4558
50 122 3601
54 130 3108
66 150 2016
76 169 1435
Bleach/Bulk Tank Funnel
The bleach portion of the funnel directs the liquid
bleach to the top cover, dispensing it between the
outer tub and the basket. There is no water valve
to rinse the funnel after use. The bulk tank portion
of the funnel directs the liquid detergent into the
bulk tank.
Bleach/Bulk Tank Funnel Removal
1. To remove the bleach/bulk tank funnel, reach
between the top cover and tub cover and
push up on the bottom of the funnel.
2. Removing the funnel gives access to the bulk
tanks 3/8 in. mounting bolt.
3. To install the funnel onto the top cover, push
down on the funnel to seat it into position.
B u l k Ta n k
Mounting Bolt
