Dispenser Box
The dispenser box only has one drawer that
slides out. It is for the fabric softener. There
is no drawer for detergent. DO NOT TRY TO
PULL THE WATER STATION SIDE OF THE
DISPENSER BOX OUT. If the bulk tank is not
being utilized, detergent will need to be added
directly into the basket before adding clothing.
Dispenser Removal
To remove the dispenser; the backsplash, water
YDOYHDQGWRSFRYHUZLOOQHHGWREHUHPRYHG¿UVW
Before raising the top cover, if there is detergent
in the bulk tank, reach under the dispenser
box and feel for the rubber tube. Pull the tube
downwards to disengage it from the dispenser
box.
Dispensers
DOES NOT OPEN
Fabric Softener Tray
To support the top cover while servicing, this
method of support has proven to be helpful.
1. Tape the lid securely to the top cover. The lid
will come open while servicing if not taped in
place or removed.
2. Remove the two 1/4 in. hex head screws that
secures the backsplash assembly from the
top cover. Set these screws within reach as
they will be used in this application.
3. After removing the backsplash assembly,
remove the two 1/4 in. hex head screws at
the rear of the top cover that secures the top
cover to the cabinet.
4. Disengage the top cover from the front clips
that secures the top cover to the front of the
cabinet.
,03257$177RS&RYHU6XSSRUW:KLOH
6HUYLFLQJ

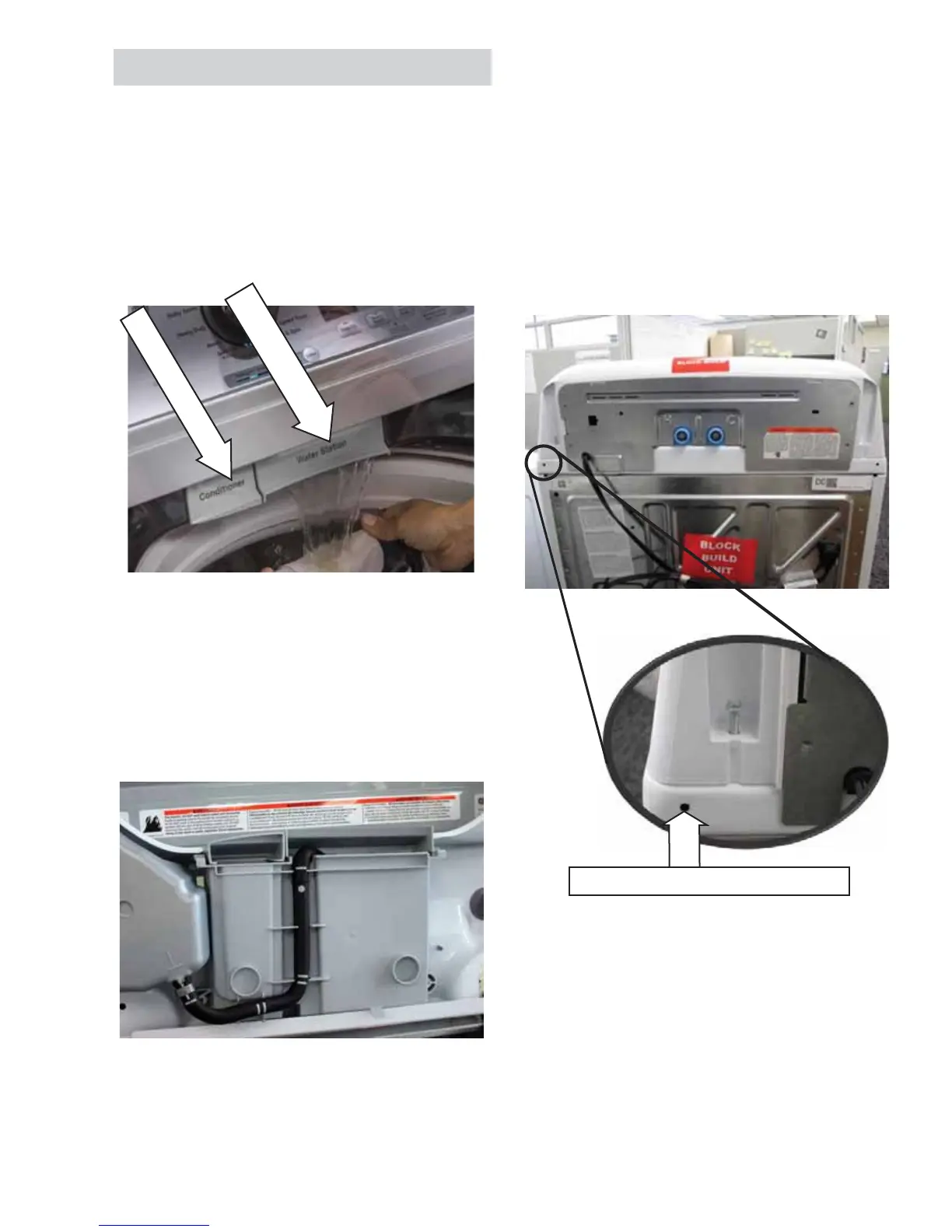

Existing Hole At Rear Of Top Cover
