– 58 –
1
3
6
5
4 7
8
2
Guide Post

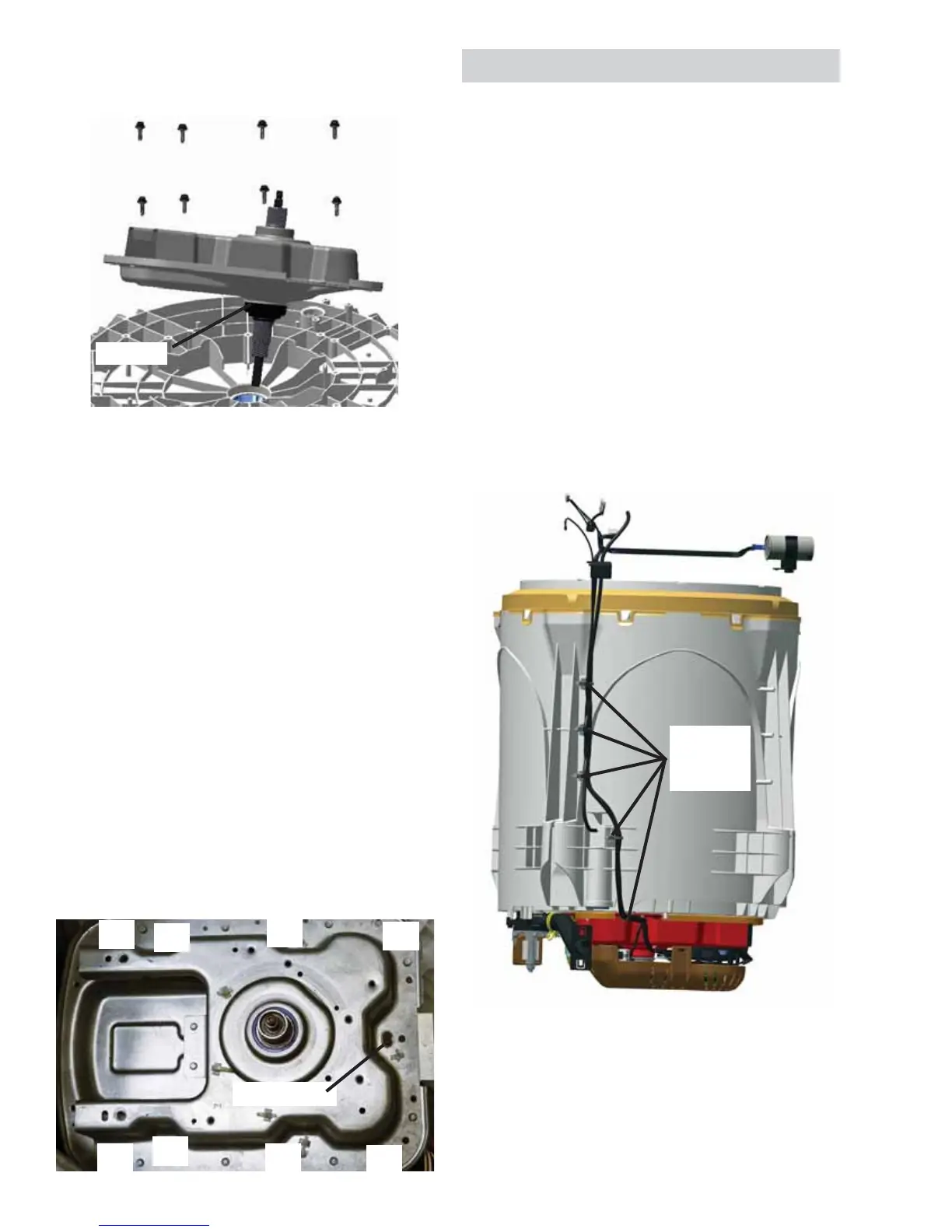

Main Harness Assembly
The main harness assembly supplies AC and DC
voltage to all components on the washer. If a wire
or connector should fail, it will need to be repaired
or replaced.
If replacing the complete harness assembly,
two technicians will be needed to complete this
repair. The main harness is secured to the side
RIWKHWXEXVLQJ¿YHKH[KHDGVFUHZVWKDWJR
WKURXJKVSHFL¿FDOO\SODFHGZLUHWLHVZLWKH\HOHWV
Main Harness Removal
1. Remove the backsplash, top cover and
cabinet/apron assembly.
2. 5HPRYHWKH¿YHLQKH[KHDGVFUHZV
(four down the side of the tub and one on the
bottom) that secure the harness to the tub
assembly.
1/4 in.
Hex Head
Screws
The tub seal is pressed onto the shaft. Prying
against the tub bottom to remove the platform
assembly may be necessary.
5HLQVWDOOLQJWKHPlatform/Transmission
Assembly
1. Slide the shaft of the transmission into the
opening on the bottom of the tub.
2. Line the guide post with the opening in the
platform.
3. Press down on the platform to get the seal in
position.
4. Tighten the eight hex bolts in a crisscross
pattern (about 1/4 of the way in at a time) so
that the tub seal is pulled into the tub evenly.
5. Once all of the bolts are in, torque to 65 in.
pounds.
6. Reinstall the basket assembly.
7. Reinstall the Belleville washer and hub nut.
The hub nut has reverse threads, and needs
to be turned counter-clockwise to tighten.
Torque to 100 ft. pounds.
Tub Seal
(Continued next page)
To Next Page
