Innova
2000 Cardiovascular Imaging System
GE Medical Systems
Pre–Installation
Manual
REV 5
pim 2337741–100
157
2

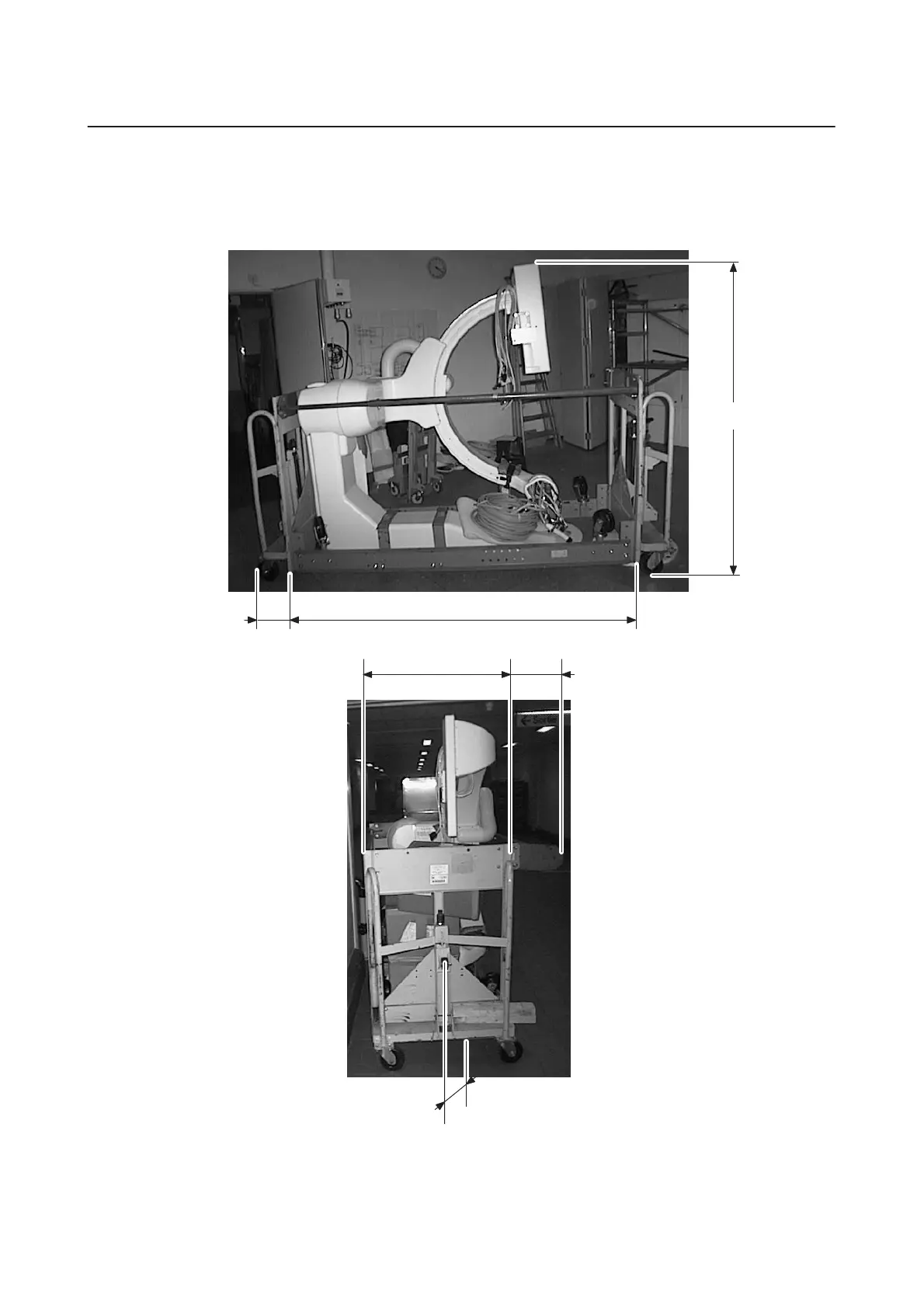

DET
AIL OF INNOV
A SHIPPING
INFORMA
TION
Illustration
2
–
INNOV
A LC POSITIONER GANTR
Y ON SHIPPING DOLL
Y
300 mm
(12) with caster
All dimensions are in mm (in inches)
2190
(86.22)
250
(10)
Height
mini
1950 (77)
865
(34)
290
(1
1.5)
156
158
Table of Contents
Table of Contents
3
Default Chapter
5
Rev
5
Chapter 1 - Introduction
9
Objective and Scope of this Manual
9
Description of Innova 2000 System
9
Description of the Innova LC Positioner
9
Description of the Innova Patient Table
9
Description of the X-Ray Generator
10
Description of the X-Ray Head
10
Description of the Innova 2000 Imaging System
11
Description of the TV Monitor & Rad Shield Suspensions
11
Description of the DL
11
TV Monitors
12
Gemnet Option
12
2-10 Injectors
12
Innova Lc Product Identification
13
Innova LC Positioner
13
Product Options
20
Responsibilities of the Purchaser/Customer
21
Pre-Installation Process
23
Chapter 2 - System Compatibility
25
Basic Innova Lc System Compatibility
25
Optional Innova Lc System Components
28
Chapter 3 - Physical Requirements of Room
29
Environmental Requirements/Limitations
31
Room Climate
31
Equipment Heat Output (Dissipation)
33
IEC601-1-2 Electromagnetic Standard Compliance & Documentation
34
General Scope
34
Electromagnetic Emission
34
Electromagnetic Immunity
35
Limitations Management
37
Use Limitation
37
Installations Requirements & Environment Control
38
Radiation Protection
40
Mobile Requirements
40
Pim 2337741-100
40
Audible Noise
40
Windows and Curtains
40
Preference Cabinet Location
41
Structural Requirements
43
Room Size
43
Door Size Requirements
43
Floor
43
Ceiling
49
Walls
52
Electrical Requirements
52
Grounding
52
Insite
53
- Physical Characteristics 1 Dimension Drawings
55
Chapter 4 - Physical Characteristics
55
Dimension Drawings
55
Illustration 19 B
58
Illustration
64
Swept Volume Curves
74
Mounting Requirements
79
Floor Loading and Recommended Mounting Methods
79
Illustration
79
Positioner and Table Floor Mounting
80
Innova LC Positioner and Omega Table Floor Preparation Kits (GEMS Supplied)
87
Illustration 41
89
Illustration 41
90
Illustration 43
91
Ceiling Loading and Recommended Mounting Methods
92
Wall Loading and Recommended Mounting Methods
92
Chapter 5 - Room Layouts
93
Room Layout Considerations
95
Radiation Protection
95
Service Access
95
Clinical Access
95
Peripheral Equipment
95
Emergency Stop
95
Room Layout Drawings
97
Room Speaker
97
Room Lighting
97
Requirements for Lighting
97
Emergency
97
Main Power Supply Cut
97
Omega IV Compact Patient Table
99
Illustration
106
Illustration 2
140
Illustration 3
141
Illustration 4
142
Illustration 1
144
Illustration 2
157
Illustration 4
159
Illustration 5
160
Illustration 6
161
5
