Innova 2000 Cardiovascular Imaging System
GE Medical Systems
Pre–Installation Manual
REV 5 pim 2337741–100
74

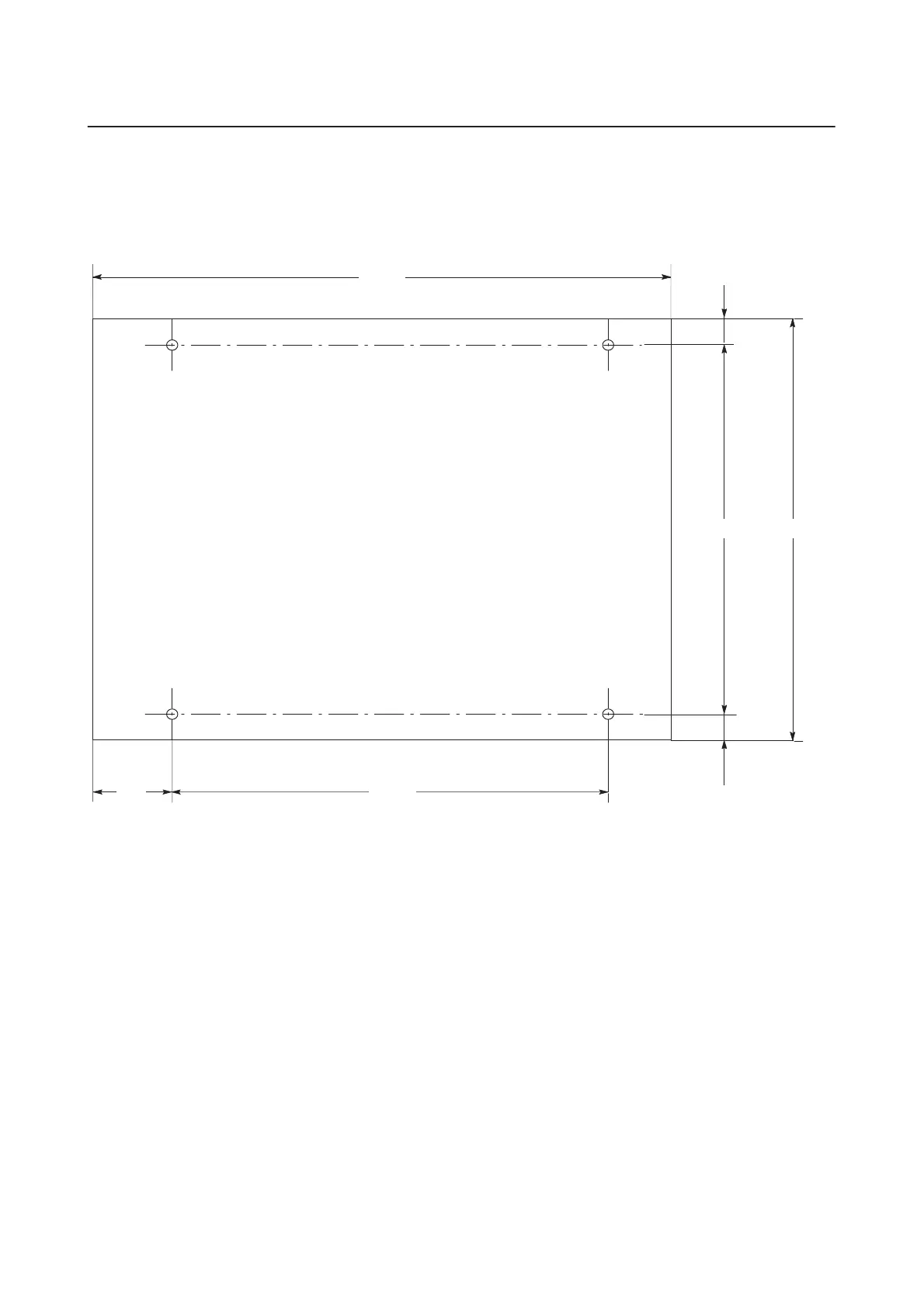

Illustration 35 – VCR MOUNTING HOLES LOCATION
Note: Unscrew the four “feet” on the bottom. Use these four holes to fix the VCR. The mounting
holes accommodate M3 x 10 mm screws. The holes are 0.4 inches (10 mm) deep.
All dimensions are in mm (inches)
2 SWEPT VOLUME CURVES
Refer to this section for details on the mechanical curve dimensions for the Innova LC Positioner and
OMEGA IV Vascular tables. These dimensions represent the interference zones for the rotating parts
of the positioner and table.
Refer to Illustration 36 and Illustration 37.
