GE JVM1430 User Manual

Installation Instructions

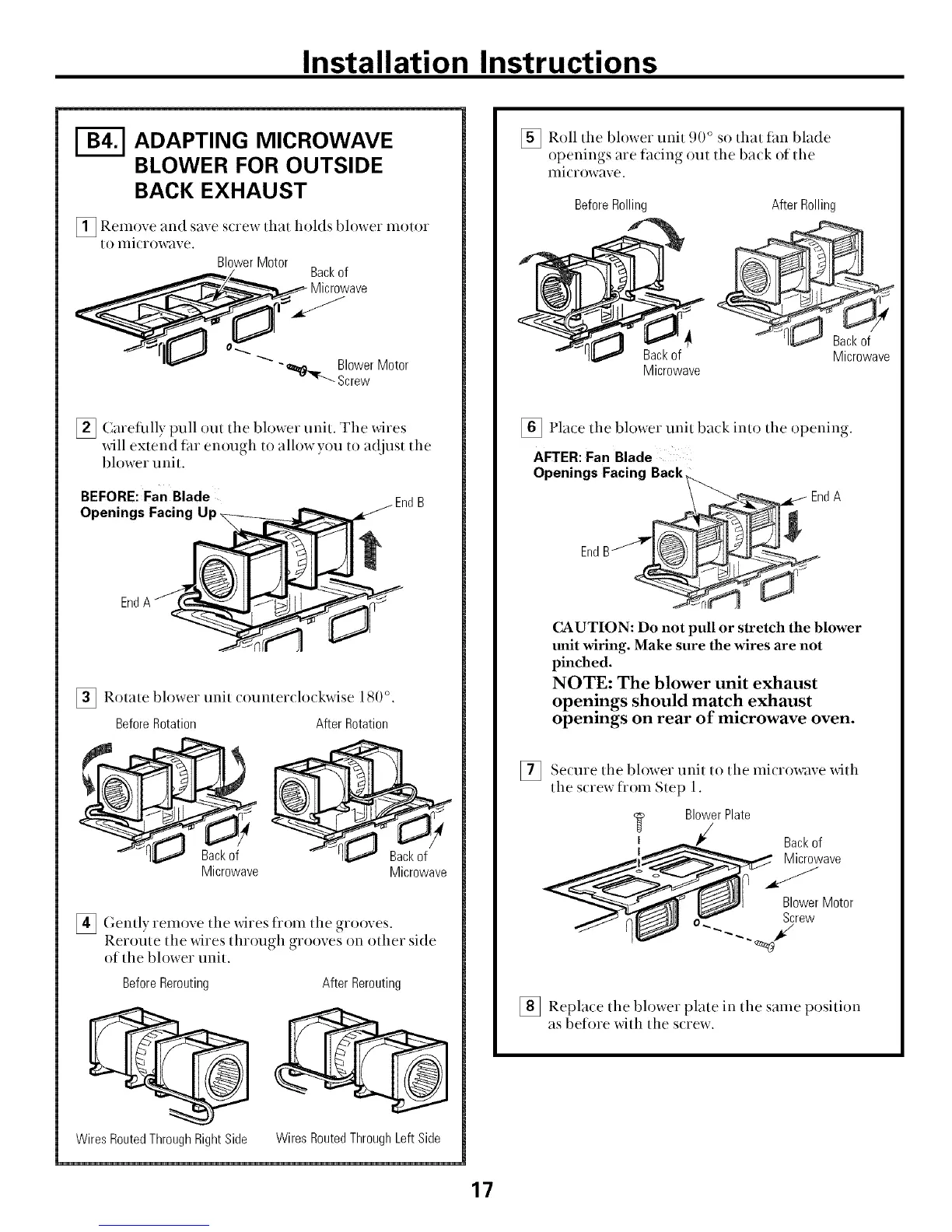

I-_ ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST
Remove and save screw that holds bh)wer motor
t 0 UlI( I'OW}lVe,
Blower Motor
__ Backof
_ Micr0wave
-_ BI0werM0t0r
- "_ Screw
[] Careflflly pull out the bh)wer unit. The _dres
_dll extend far enough to alh)w you tr) adjust the
1)lower unit.
BEFORE: Fan Blade
Openings Facing
EndA
[] Rotate bh)wer unit counterch)ckwise 180 °.
BeforeRotation After Rotation
Microwave Microwave
[] (;ently remove the xdres flom the grooves.
Reroute the _dres through grooves on other side
of the bh)wer unit.
BeforeRerouting
Wires R0uted ThroughBight Side
After Rerouting
Wire, Routed ThroughLeft Side
[] Roll the blower unit 90 ° so that fan blade
openings are lacing out the back of the
uliciowave,
BeforeRolling
Backof
Microwave
AfterRolling
Microwave
[] Place the blower unit back into the opening.
AFTER: Fan Blade
Openings Facing Back
EndB __ Ej/_I_jT_____,, _rrd A
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched.
NOTE: The blower unit exhaust
open!ngs should match exhaust
openings on rear of microwave oven.
[]
Se(ure the bh)wer unit tr) the mi(rowave xdth
the screw fl'om Step 1.
Blower Plate
I
I
Backof
Microwave
BlowerMotor
Screw
[] Replace the bh)wer plate in the same position
as before with the screw.
17
