31-7000173 Rev. 0 33
Attach the exhaust adaptor to the oven rear
panel by sliding it into the guides at the top
center of the back of the oven.

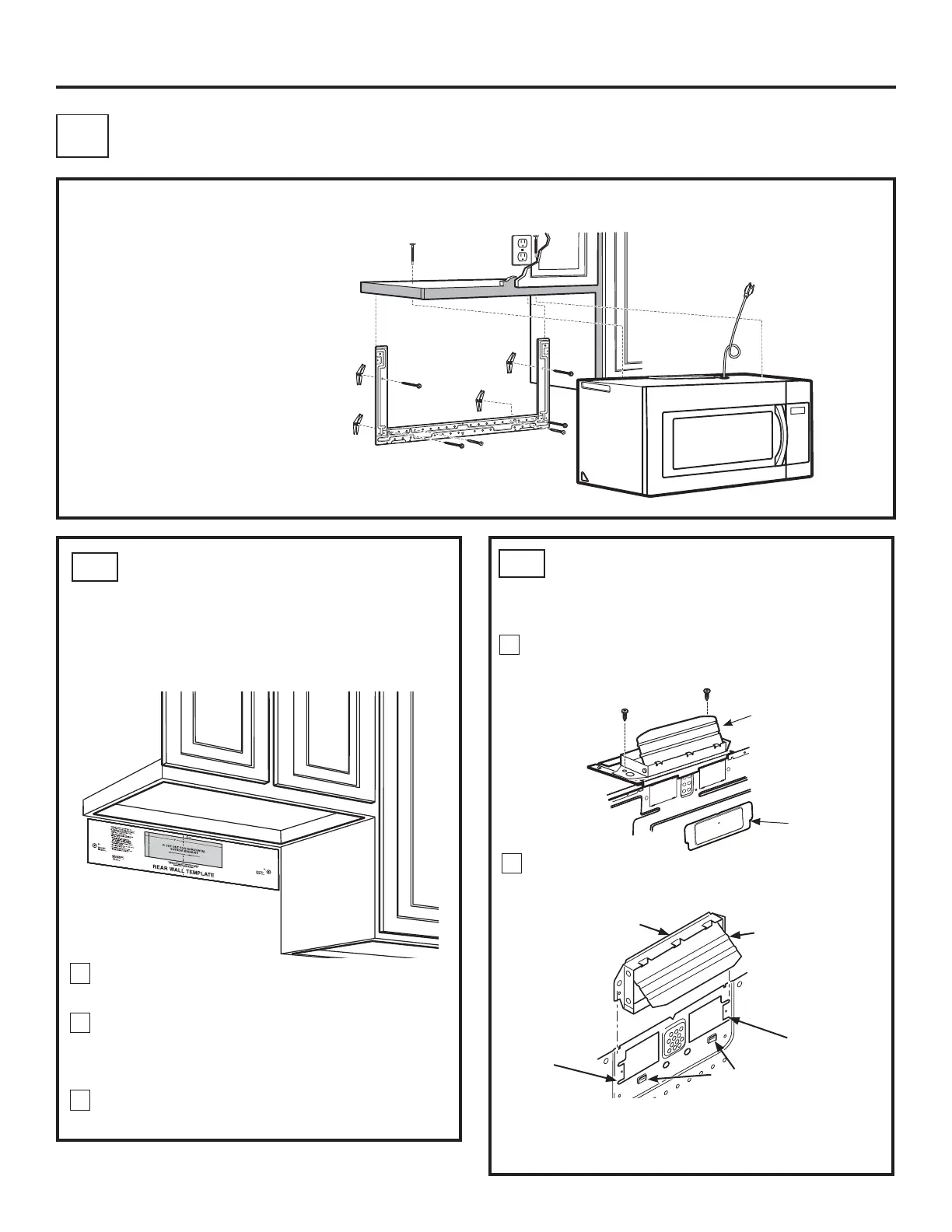

OUTSIDE BACK EXHAUST
(Horizontal Duct)
INSTALLATION
OVERVIEW
B1. Prepare Rear Wall
B2. Attach Exhaust Adaptor to
Wall Plate
B3. Attach Mounting Plate
to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Oven
Installation Instructions
B
Unscrew and remove the exhaust adaptor
assembly from the top of the oven. Remove the
cover plate installed on the back.
1
2
Exhaust Adaptor
Damper
(hinge side up)
Locking
Tabs
Guide
ATTACH THE EXHAUST
ADAPTOR TO THE OVEN REAR
PANEL
B2.
Guide
Push in securely until it is in the lower locking tabs.
Take care to assure the damper hinge is installed so
that it is at the top and that the damper swings freely.
PREPARING THE REAR
WALL FOR OUTSIDE BACK
EXHAUST
B1.
Read the instructions on the REAR WALL
TEMPLATE.
Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall plate.
Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
3
2
1
You need to cut an opening in the rear wall for
outside exhaust.
Exhaust
Adaptor
Cover Plate
To Next Page
