GE JVM3162RJSS User Manual

4 31-7000173 Rev. 0
Installation Instructions

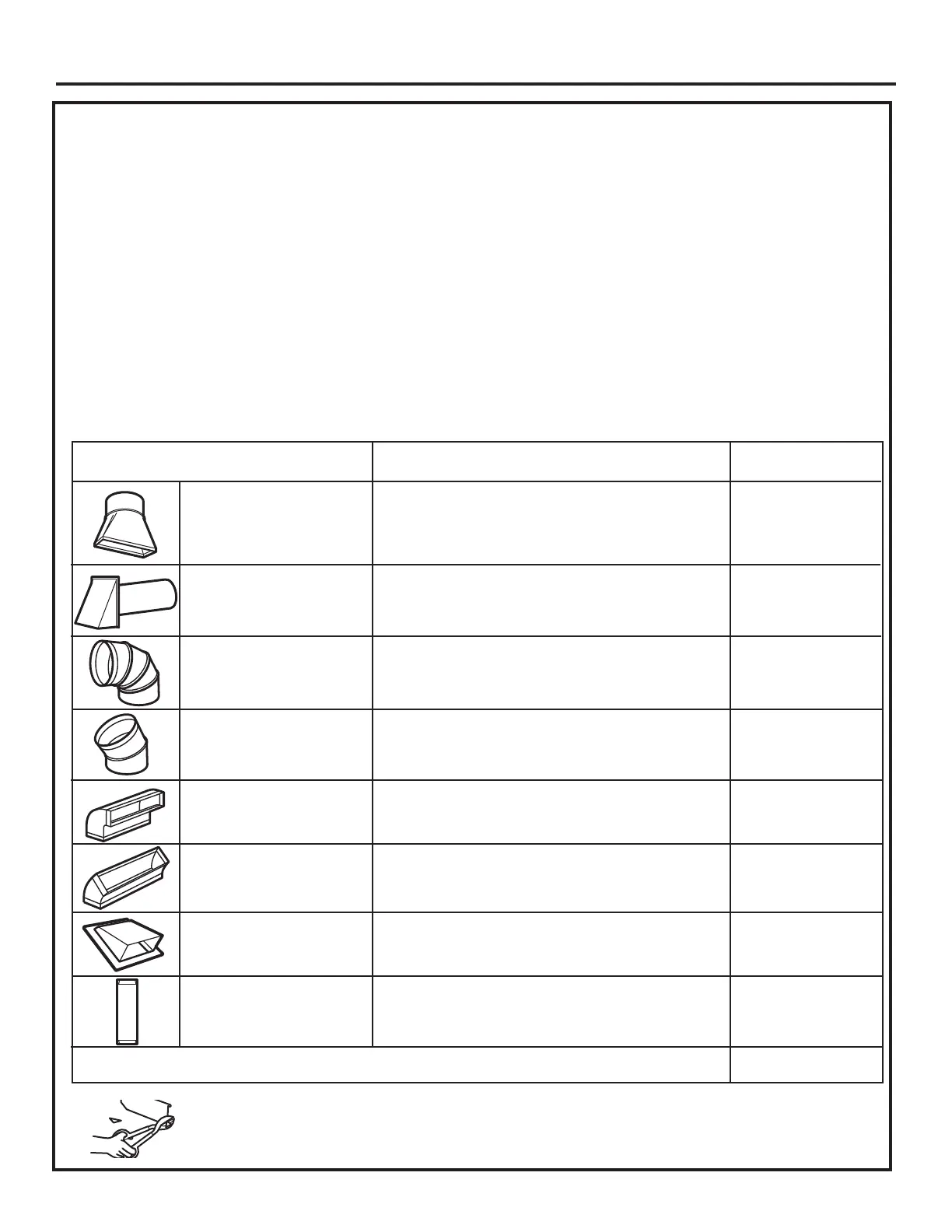

EQUIVALENT NUMBER
DUCT PIECES
LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. x ( ) = Ft.
Transition Adaptor*
Wall Cap 40 Ft. x ( ) = Ft.
90° Elbow 10 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
90° Elbow 25 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
Roof Cap 24 Ft. x ( ) = Ft.
   6WUDLJKW'XFWƎ5RXQGRU )W  [      )W
3
1
»4Ǝ[Ǝ5HFWDQJXODU
Total Ductwork = Ft.
Equivalent lengths of duct pieces are based on actual tests
and reflect requirements for good venting performance with
any vent hood.
* IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the
damper will have to be cut to fit, using the tin
snips, in order to allow free movement of the
damper
.
NOTE: If you need to install ducts, note that the total
duct length of 3
1
»4Ǝ[ƎUHFWDQJXODURUƎGLDPHWHUURXQG
duct should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 3
1
»4Ǝ[ƎUHFWDQJXODUGXFW
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6Ǝ diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
3
1
»4Ǝ[ƎUHFWDQJXODURUƎGLDPHWHUURXQGGXFWshould
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps,
etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the total
duct length, add the equivalent lengths of all transitions
and adaptors plus the length of all straight duct sections.
The chart below shows you how to calculate total
equivalent ductwork length using the approximate feet of
equivalent length of some typical ducts.

GE JVM3162RJSS Specifications

General

Style	over the range
Color	stainless steel
Total Capacity	1.6 cu. ft.
Convection	no
Power Levels	10
Fan Speeds	2
Venting Type	convertible
Sensor Cooking	no
Quick Start	1-6 minutes
Timer	yes
Interior Light	bright/night/off; incandescent; yes
Microwave Power	1, 000 watts
Electrical Requirements	120 v / 60 hz
Voltage	120 volts
Current	14

Weight and Dimensions

Depth	15 7/8 inch
Height	16 7/16 inch
Width	29 7/8 inch
Net Weight	56 lbs.
