16 31-7000173 Rev. 0
VENTILACIÓN SUPERIOR EXTERIOR (Conducto Vertical)
B
ADHIERA LA PLACA DE
MONTAJE A LA PARED
B1
Adhiera la placa a la pared usando tornillos con
resortes. Por lo menos un tornillo de madera deberá
ser usado para adherir la placa al montaje de pared.
Las ubicaciones recomendadas sobre la placa de
pared están indicadas por A, B, C y D.
Retire las tuercas mariposa de los tornillos.
Inserte los tornillos en la placa de montaje a
través de los agujeros designados para entrar en
la placa de yeso y vuelva a ajustar las tuercas
mariposa a 3/4” sobre cada tornillo.
1
CUT HOLE THROUGH REAR WALL FOR EXHAUST ADAPTOR
12"
4"
NOTE: IT IS VERY IMPORTANT TO
READ AND FOLLOW THE DIRECTIONS
IN THE INSTALLATION INSTRUCTIONS
BEFORE PROCEEDING WITH THIS
REAR WALL TEMPLATE.
This Rear Wall Template serves to position the bottom
mounting plate and to locate the horizontal exhaust
outlet.
1. Use a level to check that the template is positioned
accurately.
2. Locate and mark at least one stud on the left or
right side of the centerline.
NOTE:
It is important to use at least one wood
screw mounted firmly in a stud to support the weight
of the microwave. Mark two additional, evenly spaced
locations for the supplied toggle bolts.
3. Drill holes in the marked locations. Where there is
a stud, drill a 3/16" hole for wood screws. For holes
that do not line up with a stud, drill 5/8" holes for
toggle bolts.
NOTE::
DO NOT INSTALL THE MOUNTING PLATE
AT THIS TIME.
4. Remove the template from the rear wall.
5. Review the Installation Instruction book for your
installation situation.
Darle vuelta a la hoja para consultar la
versión en Español.
CAUTION - IF EXHAUST ADAPTOR IS POSITIONED OUTSIDE
RECOMMENDED DIMENSION, GREASE-LADEN AIR WILL
DISCHARGE INTO HOUSE STRUCTURE
30” MINIMUM WIDTH REQUIRED
REAR WALL TEMPLATE
F. CUT OUT FOR HORIZONTAL
OUTSIDE EXHAUST
Locate and mark holes to align with holes in the
mounting plate.
IMPORTANT:
LOCATE AT LEAST ONE STUD ON EITHER SIDE OF
THE CENTERLINE.
MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY
SPACED TOGGLE BOLTS IN THE MOUNTING PLATE
AREA.
Trim the rear wall template along the dotted line.
3/8" TO EDGE
C
A
C
D
B
NOTES:
- 13” Max Cabinet Depth
- 15” deep cabinets require additional steps using
an additional installation kit: JX36BUMP
OPTION 1
OPTION 2
STEP 1:
Installer uses bracket to make 2 marks. First
mark is made by using the stampled slot in bracket.
Second mark is made on the ouside edge of bracket.
STEP 2:
Installer moves bracket to the other side of
the cabinets and makes 2 more marks. Marks are the
same as STEP 1, just opposite side.
STEP 4:
Make a mark here, along
inside bottom of the
stamped slot provided.
Make a mark
here,
even with
bottom of
stamped
slot
Make a mark here, along
inside bottom of the
stamped slot provided
(same as Step 1).
Make a
mark here,
even with
bottom of
stamped
slot
Horizontal line
A
C
D
B

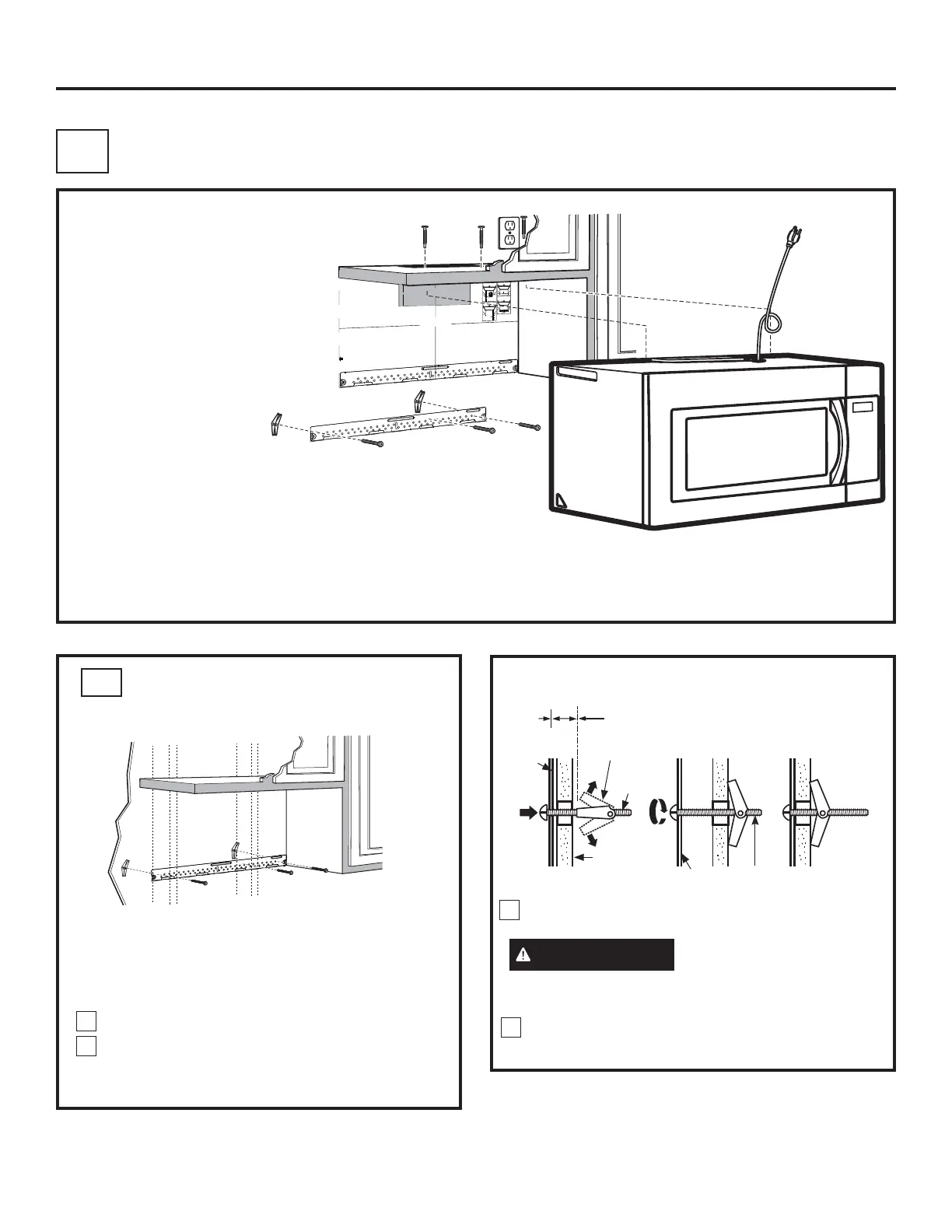

VISIÓN GENERAL DE LA
INSTALACIÓN
B1. Adjunte la Placa de Montaje a la
Pared
B2. Prepare el Gabinete Superior
B3. Ajuste el Motor del Calentador
B4. Ventilación Externa
B5. Nstalación Del Adaptador
B6. Montar El Horno
B7. Cómo Ajustar El Adaptador
De Escape
B8. Cómo Conectar
El Conducto
2
Instrucciones de Instalación
IMPORTANTE: NO retire los
espaciadores de cartón entre el
protector de calor y la puerta.
A
C
D
B
Inserte las tuercas mariposa en los agujeros de la
pared y coloque la placa de montaje contra la pared.
PRECAUCIÓN
Tenga cuidado para evitar
pellizcos en los dedos
entre la parte trasera de la placa de montaje y la
pared.
Ajuste todos los tornillos. Empuje la placa hacia
afuera de la pared para ayudar a ajustar los
tornillos.
3
4
Pared
Placa
de
Montaje
Placa de Montaje
Espacio para Tornillos con Resorte
Superior al Grosor de la Pared
Extremo del Tornillo
Tornillo con
Resorte
Tuercas Mariposa
PARA USAR TORNILLOS CON RESORTE:
