MA-001 – TRANSFIX-family Installation Manual – Rev 3.0 18-Jan-16 Page 48 of 55
Appendix G Mounting Stand Dimensions

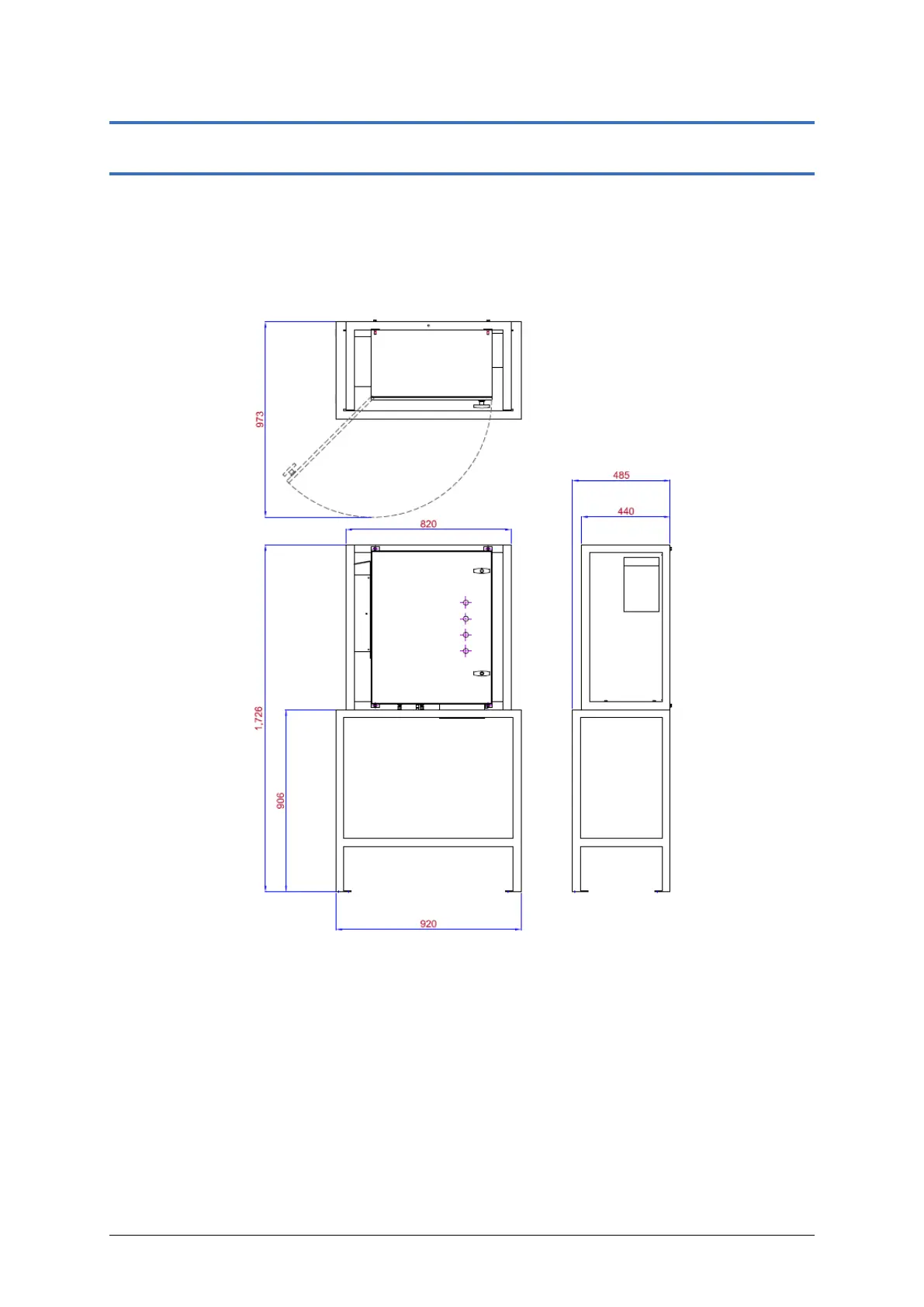

Figure G—1 shows the TRANSFIX 1.6 and MULTITRANS mounting stand dimensions with
the product mounted. The mounting stand weighs 20 kg (45 lb). All dimensions are in
millimetres (mm). Tolerance is ±5 mm.
Figure G—1: TRANSFIX 1.6 & MULTITRANS mounting stand dimensions – top, front & side
