Figure G—2 shows the TAPTRANS mounting stand dimensions with the product mounted.

The mounting stand weighs 16 kg (36 lb). All dimensions are in millimetres (mm).

Tolerance is ±5 mm.

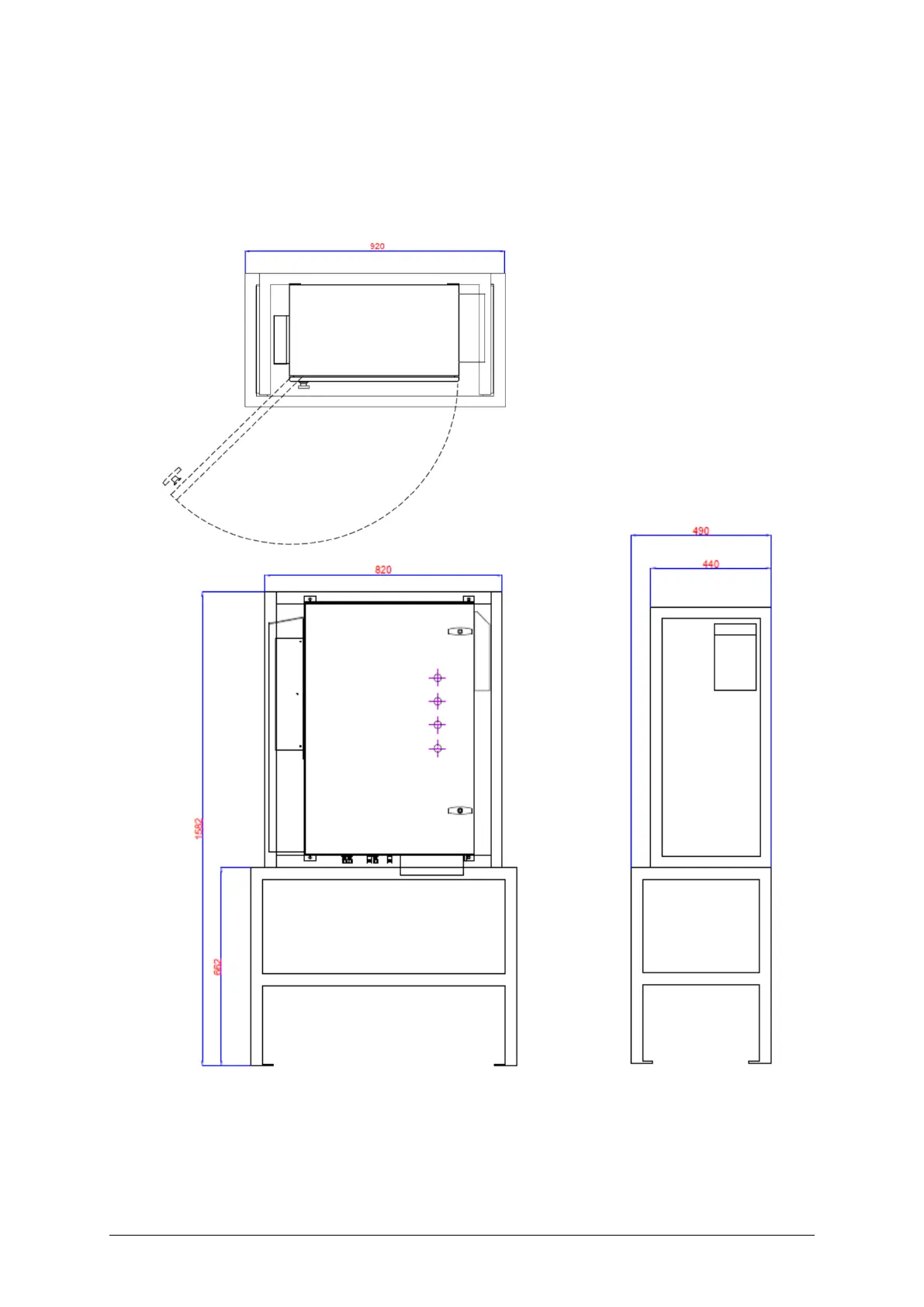

Figure G—2: TAPTRANS mounting stand dimensions – top, front & side
