DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 7-6 - Diagnostics 7 - 13
Section 7-6
Diagnostics
As described in - Components and Functions (Theory), the service platform uses a web-based user
interface (UI) to provide access to common service components.
The Diagnostic home page displays a listing of test categories consisting of Common Diagnostics, and
LOGIQ™ P6/P6 Pro Diagnostics. Expand the desired main category to select groups or individual tests.

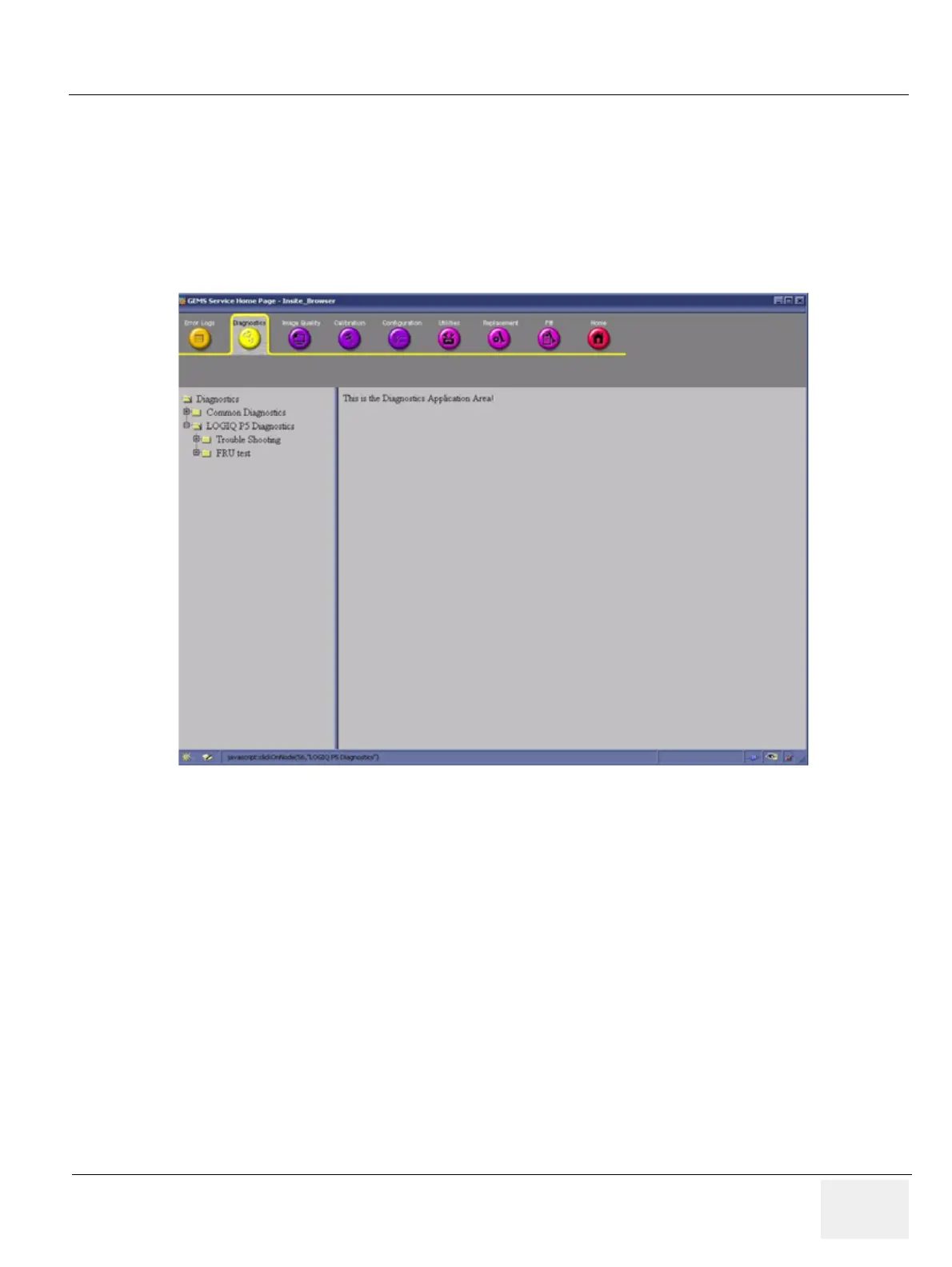

Figure 7-11 Global Service User Interface Diagnostic Screen
