DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
4 - 4 Section 4-3 - General Procedure
4-3-2-2 Switch off the System
1.) Switch OFF the Circuit Breaker at the back of the scanner.
2.) Unplug the power cord if necessary. For example : Servicing or relocating the scanner.
4-3-3 System Features
4-3-3-1 Control Panel for LOGIQ™ P6/P6 Pro
1.) Power ON/OFFf switch
2.) Patient Key
3.) Alpha Numeric key
4.) TGC
5.) Track Ball
6.) Naviagtion key
7.) User Define Key
8.) Function Select key
9.) Gain Knob
10.)Freeze Key

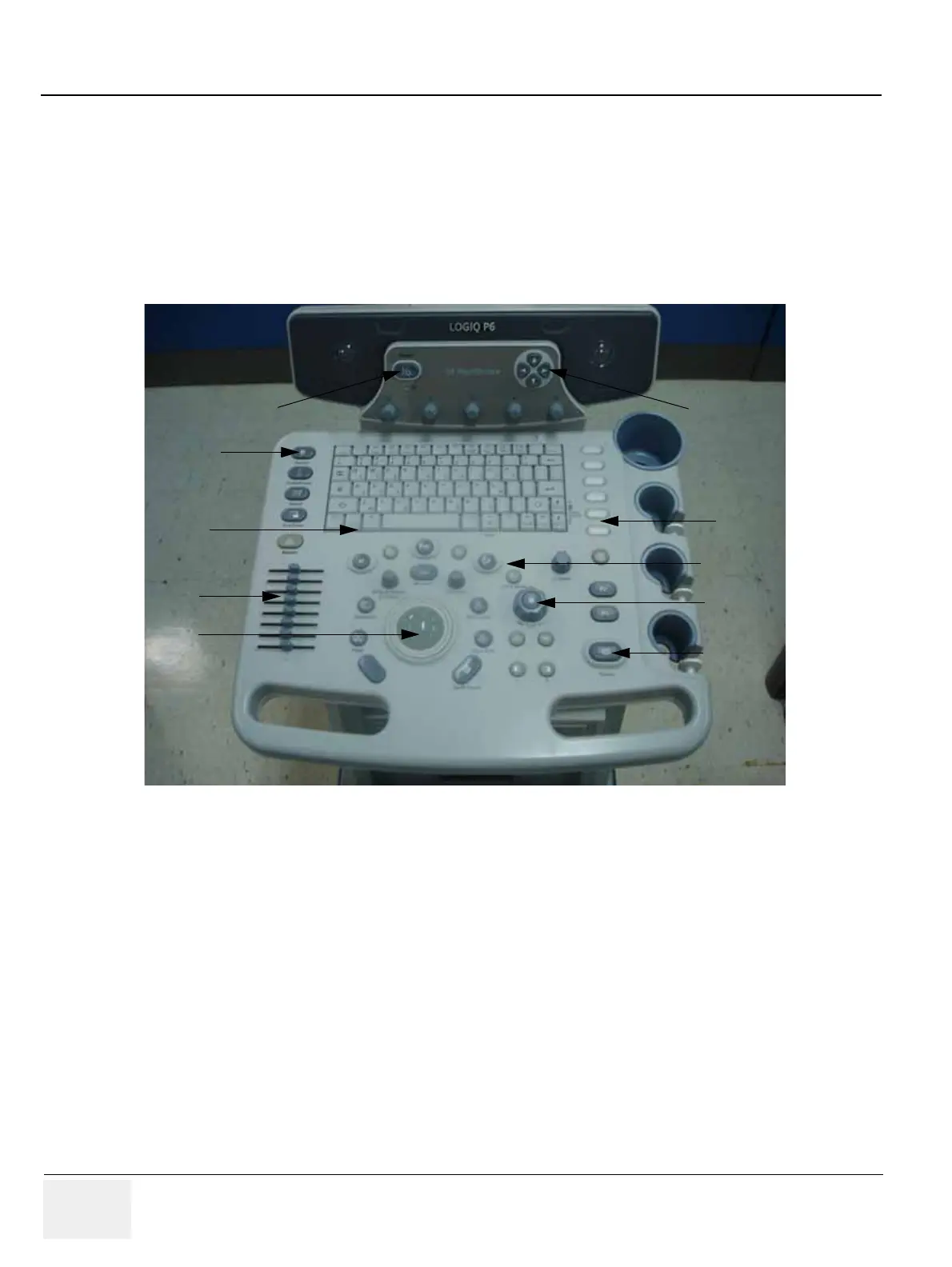

Figure 4-4 Control Panel Tour LOGIQ™ P6/P6 Pro
1
2
4
5
3
10
9
8
7
6
