Chapter4: Installation and Setup
Setting up the Transmitter
Connecting Battery to Circuit Board
NOTE: The battery of Mini-telemetry transmitter is shipped without being connected to the circuit board.
Before using the telemetry transmitter, ensure that battery is connected to the circuit board.
SENSITIVE TO ELECTROSTATIC DISCHARGE CAUTION
This procedure involves handling of ESD sensitive parts. ESD control guidelines must be followed
during this procedure to ensure that static charges are safely conducted to the ground and not
through the sensitive device, to prevent damage to the equipment.
Step Instructions

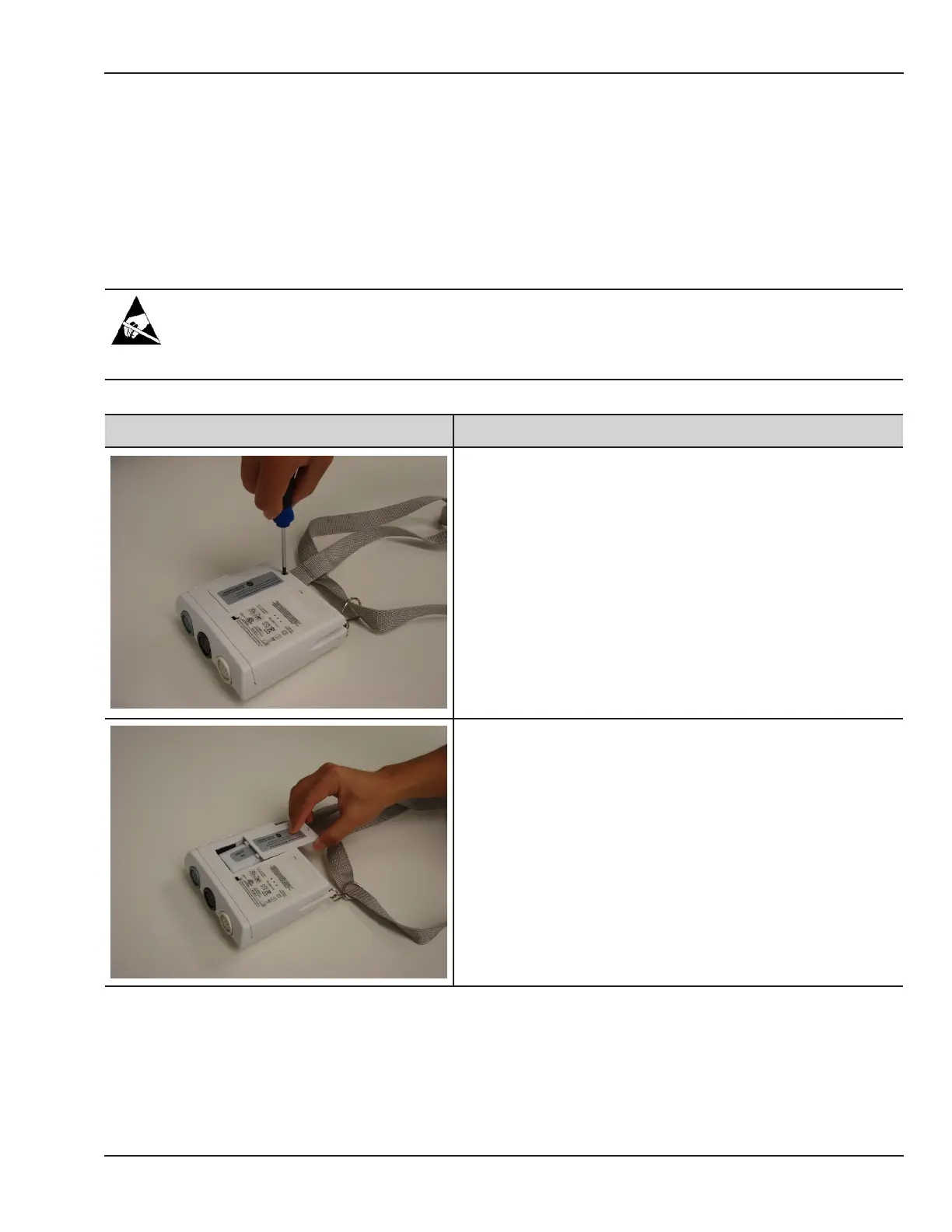

Instructions to connect battery to circuit board:
1. Use a T10 Torx screwdriver to remove the battery
compartment screw and washer.
2. Slide the battery cover out.
To Next Page
