46 3 SERIES RETROFIT – INSTRUCTION MANUAL
MLJ AND TOV DIMENSIONS AND MOUNTING CHAPTER 3: INSTALLING THE 3 SERIES RELAY
3.5 MLJ and TOV dimensions and mounting
The MLJ and TOV relays do not have panel cutouts compatible with the 3 Series relays.
Both the large MLJ models with communications (1006 and 1007, shown below) and the
smaller MLJ and TOV models shown on the following pages require panel modification in
order to retrofit with 3
Series relays. Refer to section 3.1 3 Series dimensions and mounting
for details.

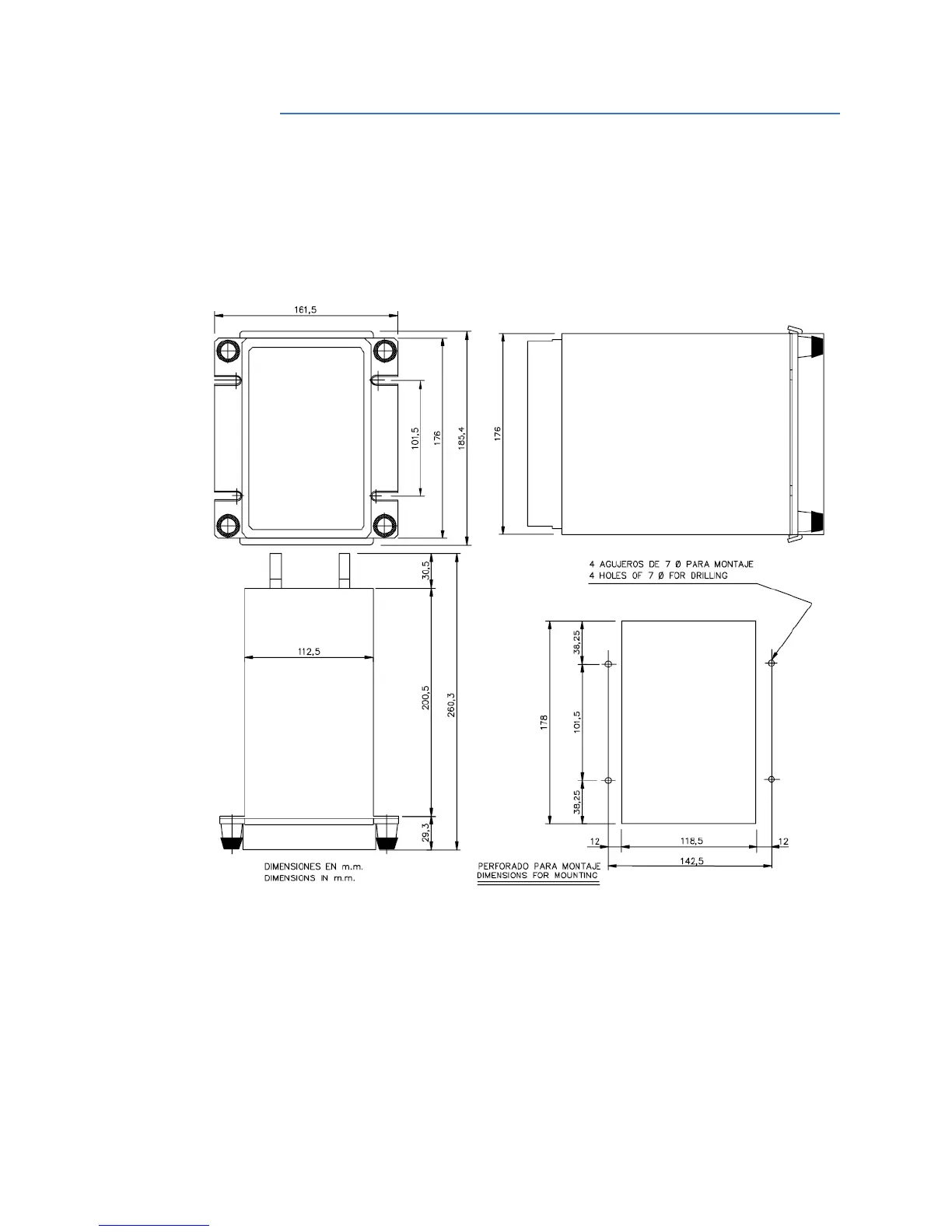

Figure 3-8: MLJ 1006 and 1007 (226B6086H2)
