CHAPTER 4: ELECTRICAL INSTALLATION MIV II WIRING
3 SERIES RETROFIT – INSTRUCTION MANUAL 57
4.5 MIV II Wiring

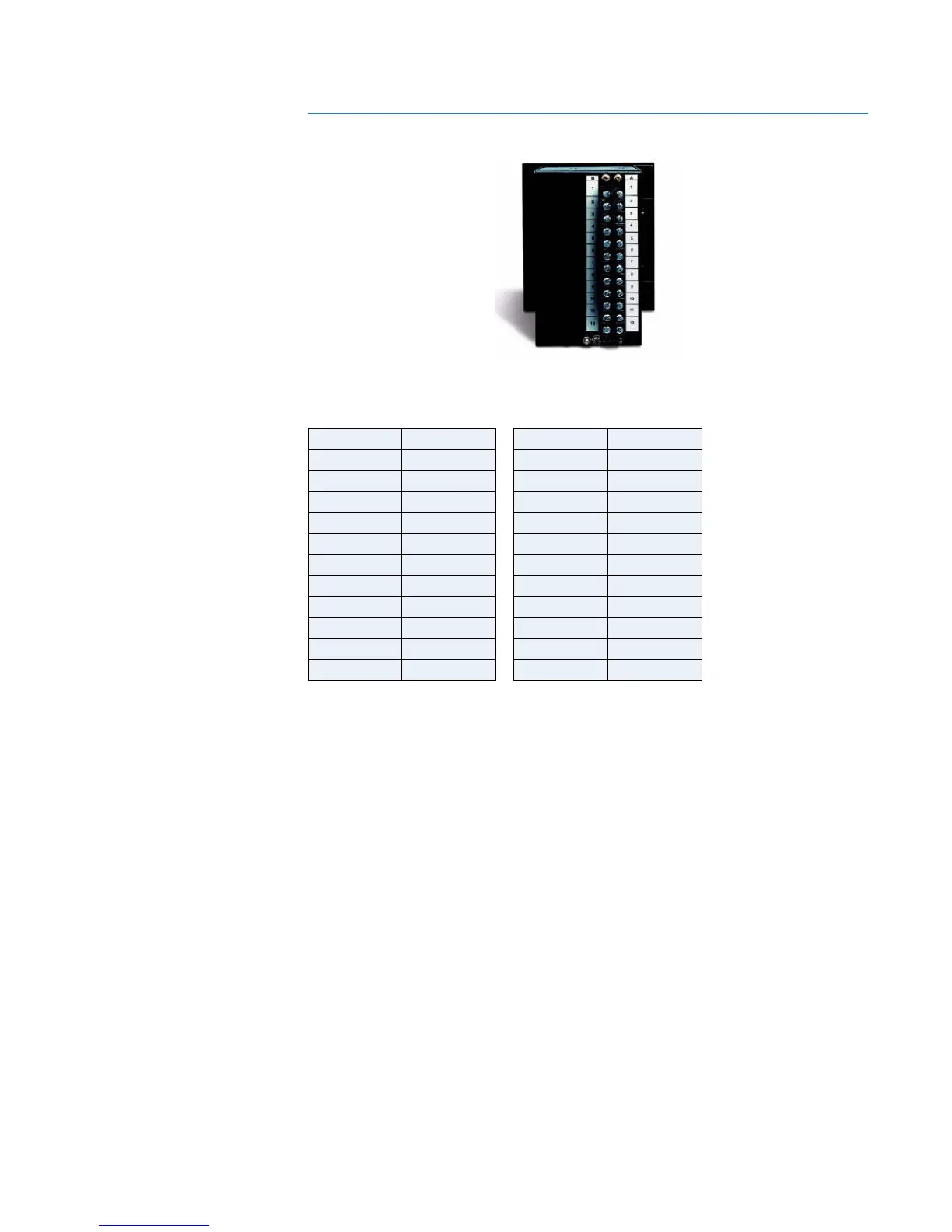

Table 4–6: MIV II Terminal Blocks
A1 +/L B1 VI
A2 -/N B2 N
A3 VIII B3 VII
A4 N B4 N
A5 TRIP B5 READY CO
A6 TRIP B6 READY CO
A7 COM (DO) B7 OUT1 (DO)
A8 CC1 (DI) B8 OUT2 (DO)
A9 CC2 (DI) B9 OUT3 (DO)
A10 COM (DI) B10 OUT4 (DO)
A11 B11 RS485 GND
A12 RS485 SDB B12 RS485 SDA
