56 3 SERIES RETROFIT – INSTRUCTION MANUAL
MIF II WIRING CHAPTER 4: ELECTRICAL INSTALLATION

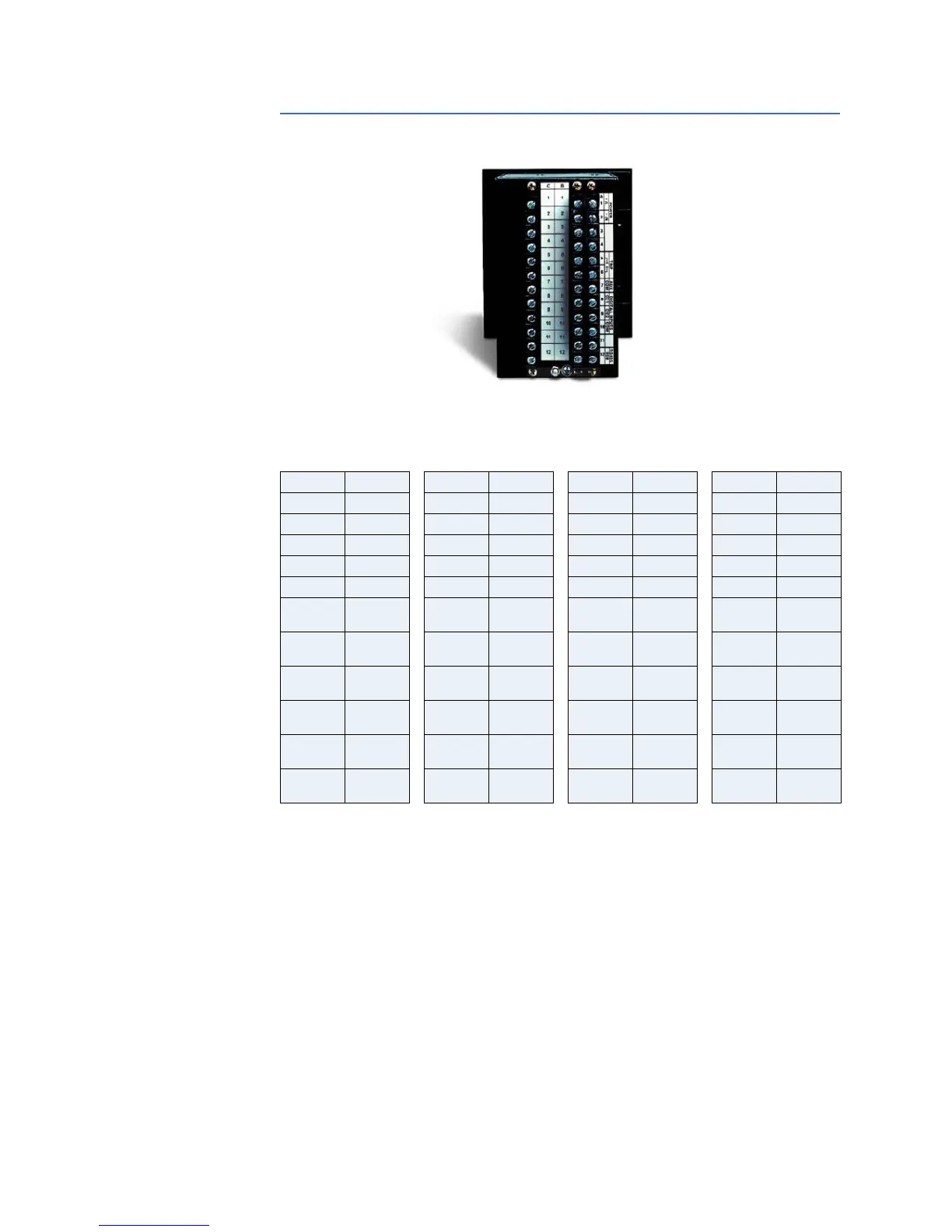

4.4 MIF II Wiring
Table 4–5: MIF II Terminal Blocks
A1 +/L B1 C1 IA D1 IA
A2 -/N B2 C2 N D2 N
A3 B3 C3 IB D3 IB
A4 B4 C4 N D4 N
A5 TRIP B5 C5 IC D5 IC
A6 TRIP B6 C6 N D6 N
A7 COM (DO) B7 OUT1
(DO)
C7 IG D7 IG
A8 CC1 (DI) B8 OUT2
(DO)
C8 N D8 N
A9 CC2 (DI) B9 OUT3
(DO)
C9 D9
A10 COM (DI) B10 OUT4
(DO)
C10 D10
A11 B11 RS485
GND
C11 D11
A12 RS485
SDB
B12 RS485
SDA
C12 D12
