CHAPTER 3: INSTALLING THE 3 SERIES RELAY P40 AGILE DIMENSIONS
3 SERIES RETROFIT – INSTRUCTION MANUAL 49
3.6 P40 Agile Dimensions
In some cases a P40 Agile P14x relay may be the preferred replacement option.
Dimensions of the two P40 Agile P14x case sizes are provided for reference. For additional
information, refer to the P40 Technical Manual.

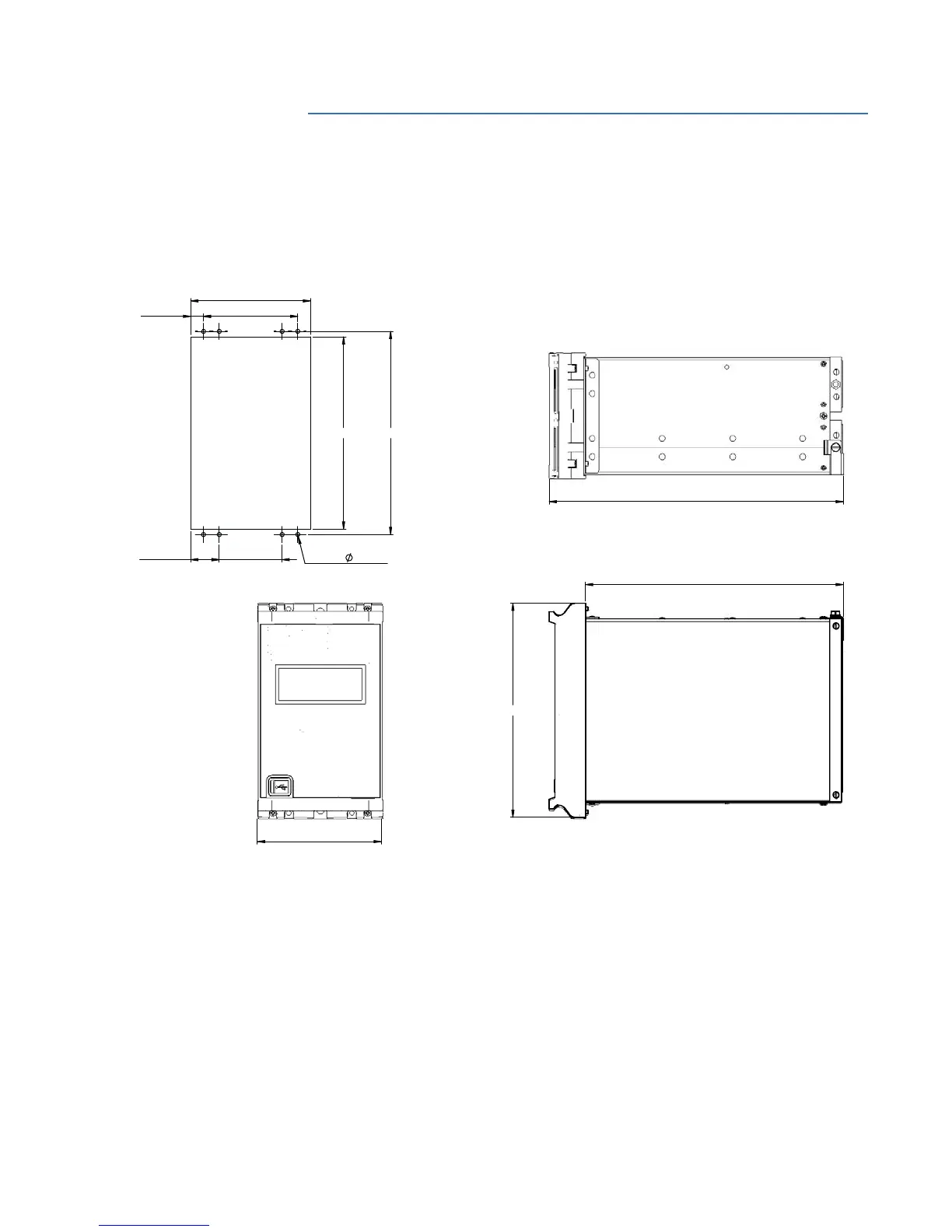

Figure 3-11: P40 Agile P14x 20TE case dimensions
99.0mm
159.0mm 168.0mm
78.0mm
8 holes 3.4mm
52.0mm 23.5mm
10.5mm
102.4mm
177.0mm
213.1mm
243.1mm
AA
AA
BB
BB
A = Clearance holes
B = Mounting holes
E01403
