– 46 –

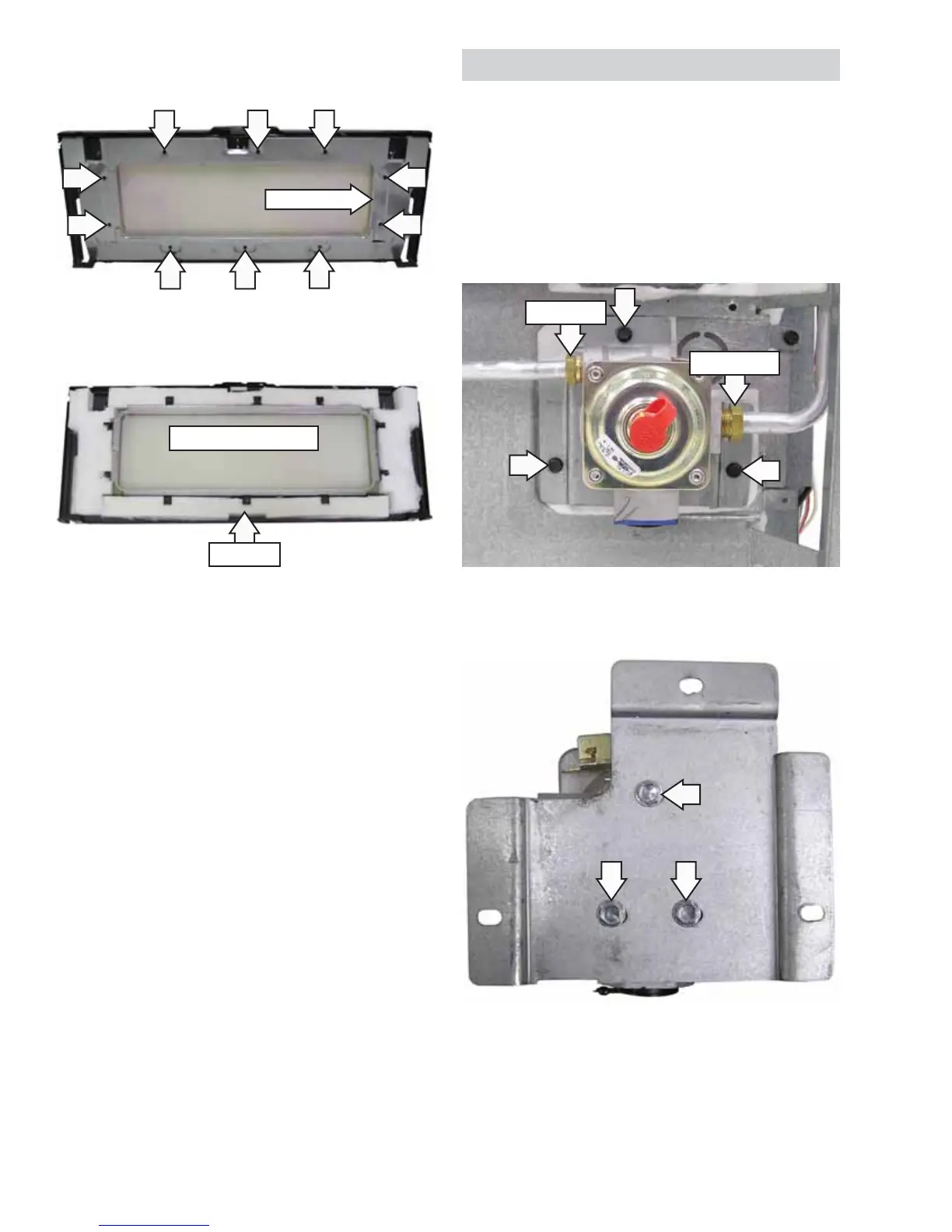

3. Remove the 10 Phillips-head screws and the
heat barrier from the inner door.
4. Remove the inner glass assembly and insulation
from the inner door.
Heat Barrier
Inner Glass Assembly
Insulation
Regulator
To remove the regulator:
1. Remove the range from its installation.
2. Remove the 9/16-in. and 11/16-in. hex-head
nuts holding the gas lines to the regulator.
3. Remove the three 1/4-in. hex-head screws and
the regulator bracket.
9/16-in. Nut
11/16-in. Nut
4. Remove the three 1/4-in. hex-head screws from
the regulator bracket.
