Renewal Parts Lists
Venue 50 – Ba
sic Service M
anual
9-
13
5447566-100
English Rev. 7

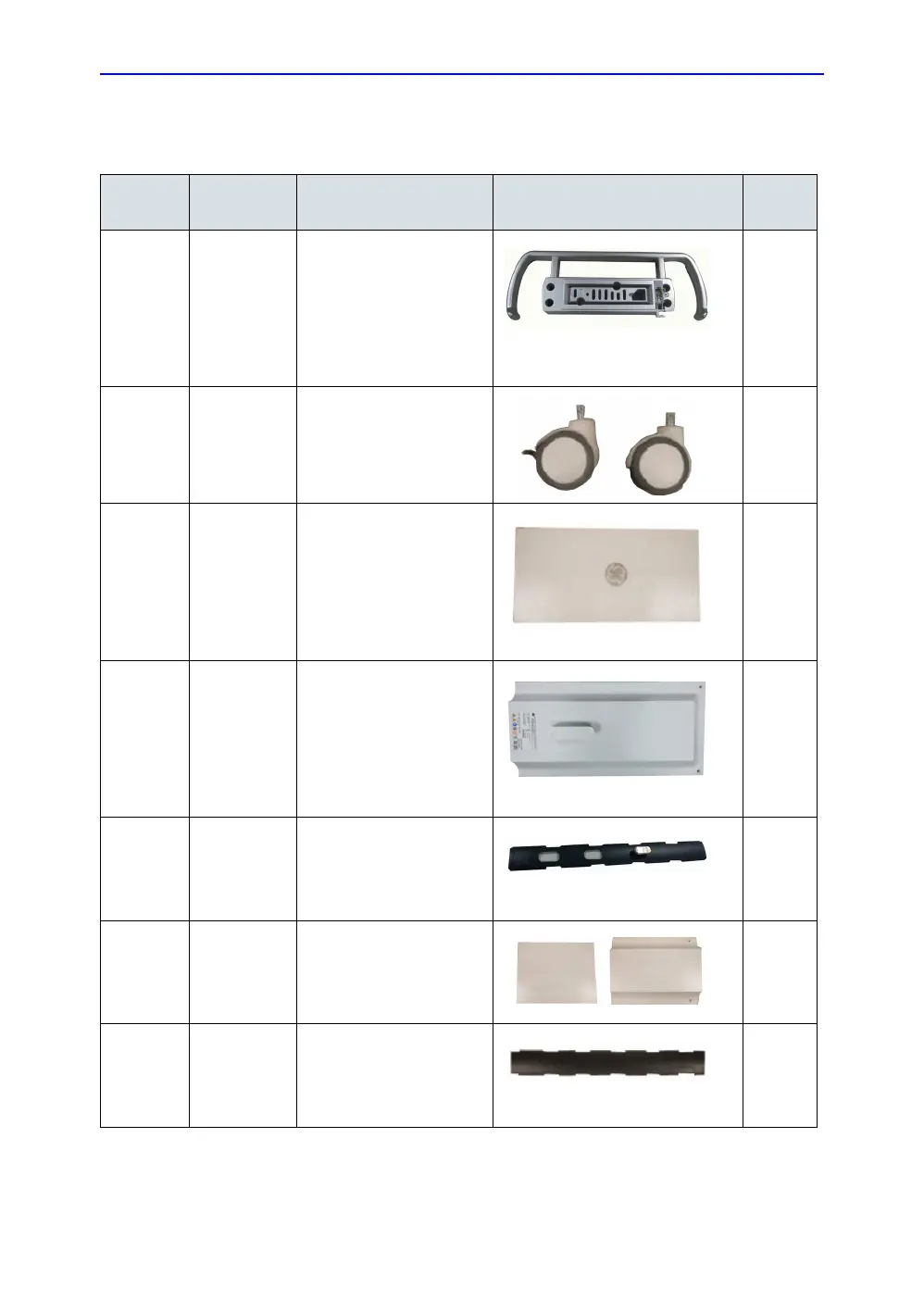

Docking Cart Assy
T
a
ble
9-9:
Docking Cart Ass
y
Item
Part
Number
Part Name
Corresponding graphic
Qty
500
5459463-S
C
art Handle Assy
1
501
5321852
2 front wheels and 2 back
wheels
1
502
5321889
Front Cover
1
503
5321891-3
Back Cover
1
504
5321893-2
Upside Covers
2
505
5321895
Below front and back
covers
1
506
5321896
Below side covers
2
240
242
Table of Contents
Default Chapter
13
Certified Electrical Contractor Statement - for USA Only
13
Damage in Transportation
13
Omission and Errors
14
Service Safety Considerations
15
Legal Notes
16
Trademarks
16
Table of Contents
17
Chapter 1 - Introduction
23
Overview
24
Contents in this Chapter
24
Manual Overview
25
Contents in this Manual
25
Typical Users of the Proprietary Service Manual
26
Venue 50 Models Covered by this Manual
27
Important Conventions
28
Conventions Used in Book
28
Standard Hazard Icons
30
Product Icons
32
Label Icon Description
32
Labels Locations
36
Safety Considerations
37
Contents in this Section
37
Introduction
37
Human Safety
38
Mechanical Safety
40
Electrical Safety
42
Battery Safety
43
Dangerous Procedure Warnings
45
Lockout/Tagout (LOTO) Requirements
46
Returning Probes and Repair Parts
47
EMC, EMI and ESD
48
What Is EMC
48
Compliance
48
Electrostatic Discharge (ESD) Prevention
49
Customer Assistance
50
Contact Information
50
Phone Numbers for Customer Assistance
51
System Manufacturer
51
Chapter 2 - Site Preparations
53
Contents in this Chapter
54
General Requirements
55
Contents in this Section
55
Ultrasound System Environmental Requirements
55
Electrical Requirements
58
EMI Limitations
60
Probes Environmental Requirements
62
Facility Needs
63
Contents in this Section
63
Purchaser Responsibilities
64
Required Facility Needs
65
Desirable Features
65
Recommended and Alternate Ultrasound Room Layout
66
Networking Setup Requirements
68
Environmental Dangers
71
Patient Environment IEC60601-1 and ANSI AAMI ES60601-1
71
Chapter 3 - System Setup
73
Overview
74
Contents in this Chapter
74
Setup Reminders
75
Average Setup Time
75
Setup Warnings
75
Receiving and Unpacking the Equipment
78
Contents in this Section
78
Receiving the Venue 50
79
Unpacking the Equipment
80
Moving into Position
93
Packing the Equipment
93
Preparing for Setup
94
Verify Customer Order
94
Physical Inspection
94
EMI Protection
94
Completing the Setup
95
Purpose of this Section
95
Contents in this Section
95
Mounting the System to Docking Station/Cart
96
Connecting Probes
97
Completing the Setup
97
Power on / Boot up
100
Power Shut down
100
System Configuration
101
System Specifications
101
Electrical Specifications
102
Approved Peripherals
103
Connecting Cables
104
Peripheral/Accessories Connector Panel
105
Available Probes
126
Software Options Configuration
127
Software Version Check-Out
127
Paperwork after Setup
128
User's Manual(S)
128
Product Locator Installation Card
128
Chapter 4 - General Procedures and Functional Checks
129
Overview
130
Contents in this Chapter
130
Equipment Required
130
General Procedures
131
Overview
131
Power On/Boot up
132
Power Shut down
135
Adjusting the Display Monitor
135
Functional Checks
136
Overview
136
Touch Panel
137
Monitor Display
138
Performance Tests
139
Software Configuration Checks
152
Peripheral Checks
153
Chapter 5 - Components and Functions (Theory)
157
Overview
158
Contents in this Chapter
158
Block Diagram and Theory
159
Block Diagram of Venue 50 and Docking Station/Cart
159
Chapter 6 - Service Adjustments
161
Overview
162
Contents in this Chapter
162
Monitor Adjustments
163
Adjust Brightness
163
Adjust Volume
163
Adjust Monitor on Docking Station/Cart
164
Chapter 7 - Troubleshooting
167
Overview
168
Contents in this Chapter
168
Troubleshooting
169
Console Troubleshooting Trees
169
Peripheral Troubleshooting Trees
182
Battery Troubleshooting
185
Remote Service
186
Gateway Installation
186
Gateway Running
191
Remote Software Download/Reload
195
Remote Diagnostics
202
Remote Log
203
Chapter 8 - Replacement Procedures
205
Overview
206
Contents in this Chapter
206
Warnings and Important Information
207
Warnings
207
Returning/Shipping Probes and Repair Parts
209
Disassembly/Re-Assembly
210
Warning and Caution
210
Tools Needed for Servicing Venue 50
211
Docking Station Desk Support Assy
212
Docking Cart Plastic Shelf
213
Docking Cart Printer Shelf
214
Loading Base Image Software
217
Purpose of this Section
217
Data Management - Moving All Images
217
Recording Important Settings and Parameters
218
Loading the System Software
219
Used Media and Used Parts Disposal
227
Chapter 9 - Renewal Parts
229
Overview
230
Contents in this Chapter
230
List of Abbreviations
231
Renewal Parts Lists
232
Power Cables
233
Top Assy
235
Middle Cover Assy
236
Bottom Assy
237
Docking Station Assy
239
Docking Cart Assy
241
Accessories and Kits
245
Probe
246
Manuals
247
Chapter 10 - Care and Maintenance
249
Overview
250
Periodic Maintenance Inspections
250
Contents in this Chapter
250
Warnings
251
Why Do Maintenance
252
Keeping Records
252
Quality Assurance
252
Maintenance Task Schedule
253
How Often Should Maintenance Tasks be Performed
253
Tools Required
255
Standard GE Tool Kit
255
GE-2 Tool Kit
257
Special Tools, Supplies and Equipment Used for Maintenance
258
System Maintenance
259
Preliminary Checks
259
Functional Checks
260
Physical Inspection
262
Optional Diagnostic Checks
262
Probe Maintenance
263
Battery Performance Maintenance
265
Electrical Safety Tests
266
Overview
266
Safety Test Overview
268
Leakage Current Limits
270
Outlet Test - Wiring Arrangement
272
Grounding Continuity
273
Chassis Leakage Current Test
274
Probe Leakage Current Test
277
When There's too Much Leakage Current
280
AC/DC Fails
280
Enclosure Fails
280
Probe Fails
281
Peripheral Fails
281
Still Fails
281
New Unit
281
Inspection Paperwork
282
Ultrasound Inspection Forms
282
Index
285
