Acoustic Output
Vscan Air – User Manual 8-9
Direction GP092020-1EN Rev 18
Acoustic Output Reporting Tables for Track 3/EN/IEC 60601-2-37
NOTE: These acoustic output reporting tables are produced according
to IEC 62359 Ed.2.
NOTE: The Acoustic Output tables are in English only.
Transducer Model: Curved array transducer
Operating Mode: black and white (including harmonic)

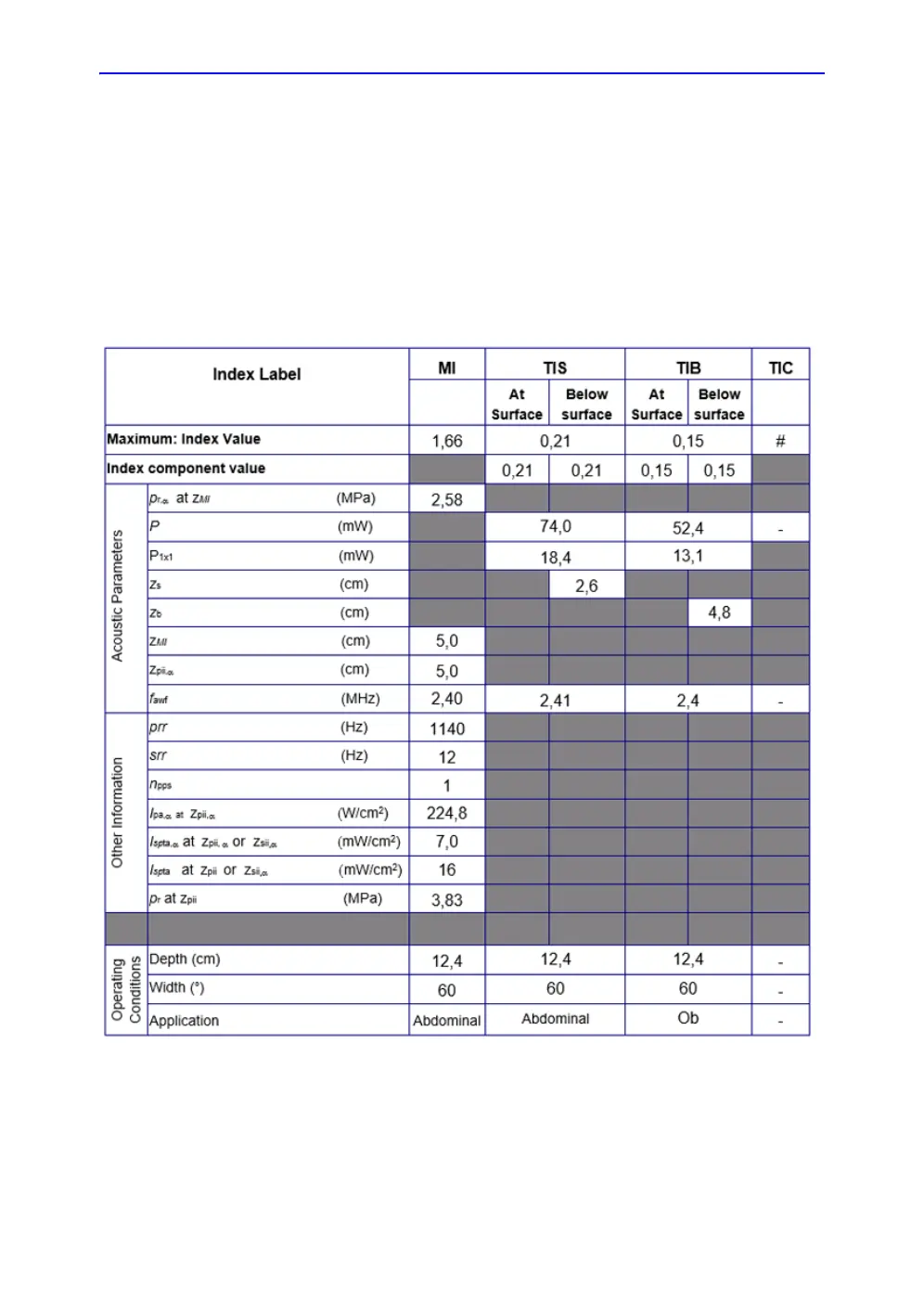

Figure 8-2. Curved array transducer - black/white (including harmonic)
NOTE: This transducer does not have a preset optimized for
Transcranial/Neonatal cephalic use.
