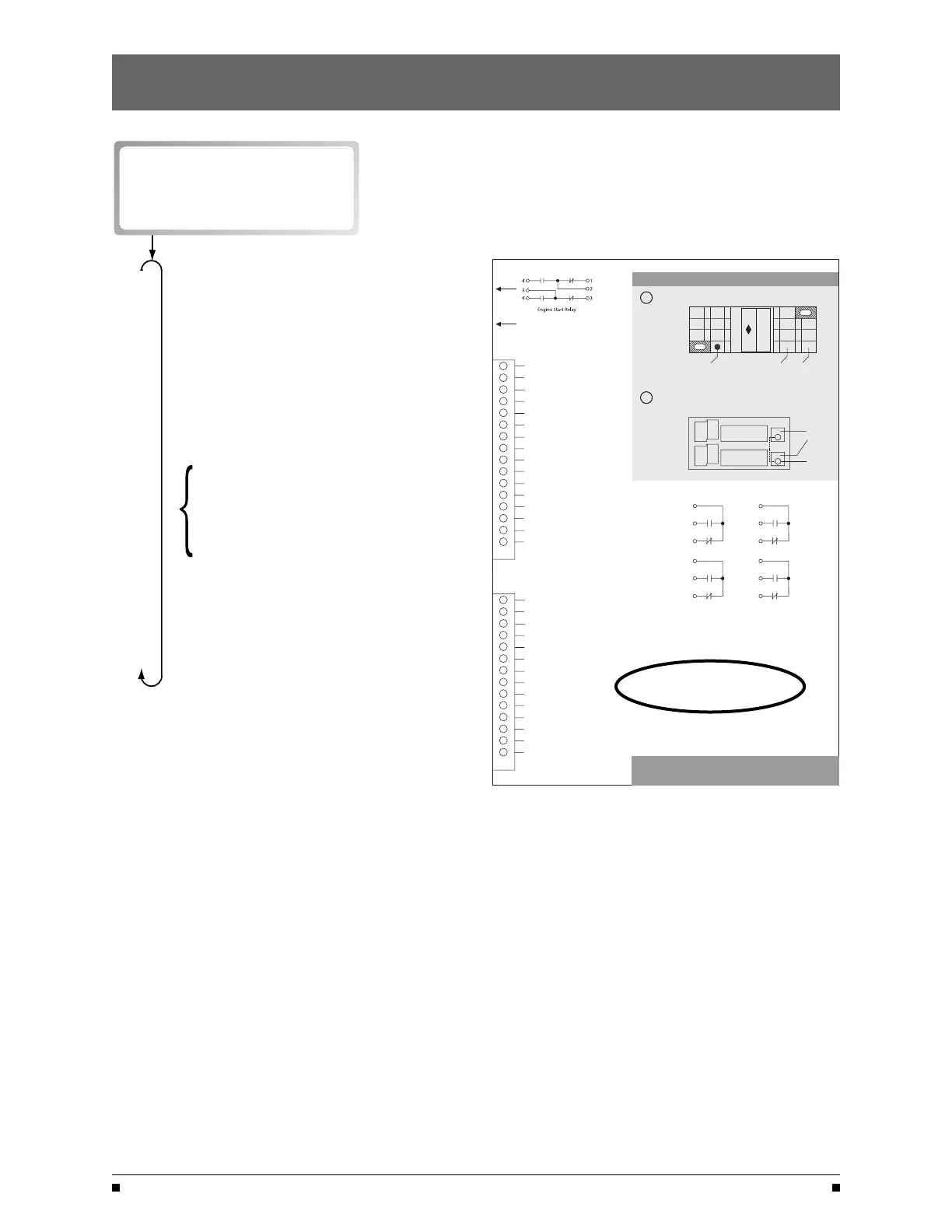

Entelli-Switch 250 User Setup - System Info
—PHASE TO PHASE VOLTAGE, S1 & S2
—FREQUENCY INDICATION FOR S1 & S2
(K/P) (pg.10)
—PLANT EXERCISER:
Next Impending Exerciser
(shows only if set)
—SYSTEM INFO:
Serial #: Unit Serial #
Rev #: Software Revision #
Event Log:
Sequentially Numbered Log
of 16 events that track
date, time, reason and action taken
Data: Total Life Transfers (N2P)
Days Powered Up
Total Transfers to S2
Total S1 Failures
Time S1 available in Hrs
Time S2 available in Hrs. (N1P)
—CHANGE USER ACCESS CODE
S1 OK
01: 50
FRI 31 MAY 2003
MORE TEST
Network Communications
(Option)
11
12
13
R1
Output
5
6
7
R1
Output
14
15
16
R2
Output
8
9
10
R2
Output
Contact Rating: 10A @ 277VAC or 30VDC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PROG 1
PROG 2
GRD (Input Sink)
LS OUT
NIA OUT
ELEV. PRE. OUT
ALARM OUT
STE OUT
MOTOR DISC. OUT
TMS IN
INHIB. > S1
INHIB. > S2
LS IN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
+12V (Output Source)
LN OUT
L4 OUT
L3 OUT
L2 OUT
L1 OUT
YN IN
YE IN
TSNL IN
Q2/TSL IN
S12 IN
S5 IN
11
12
13
5
6
7
14
15
16
8
9
10
R1
1
2
R2
3
4
Output Contacts
Output Contacts
{
{
From J2/J4
Output
J4-3
414
13
12 11 10
9
123
567
8
J2-3 N.O. N.C.
To J2/J4 Input
Customer
Input
Voltage
{
WARNING
1 Controller inputs must be relay isolated.
2 Controller ouputs have limited source capability.
Use only GE Zenith - specified output modules.
Entelli-Switch 250
TM
Lithium Battery Exerciser Battery
Replacement - K-4100 (BR2032)
Service Life - 10 Years
+
+
During normal operation
User Access Code Default - 121212
Product Information www.geindustrial.com
24-Hour Service (773) 299-6600
J4
*
J2
*
* Input and output availability
subject to factory configuration.
View System Data
Enter six digit access code
(The factory assigned six-digit access code
is located on the back of the controller)
ZTS / ZTSD Operation and Maintenance Manual (71R-3000)
GE Zenith Controls
