GE ZTS Series User Manual


Replacement Parts (cont’d)

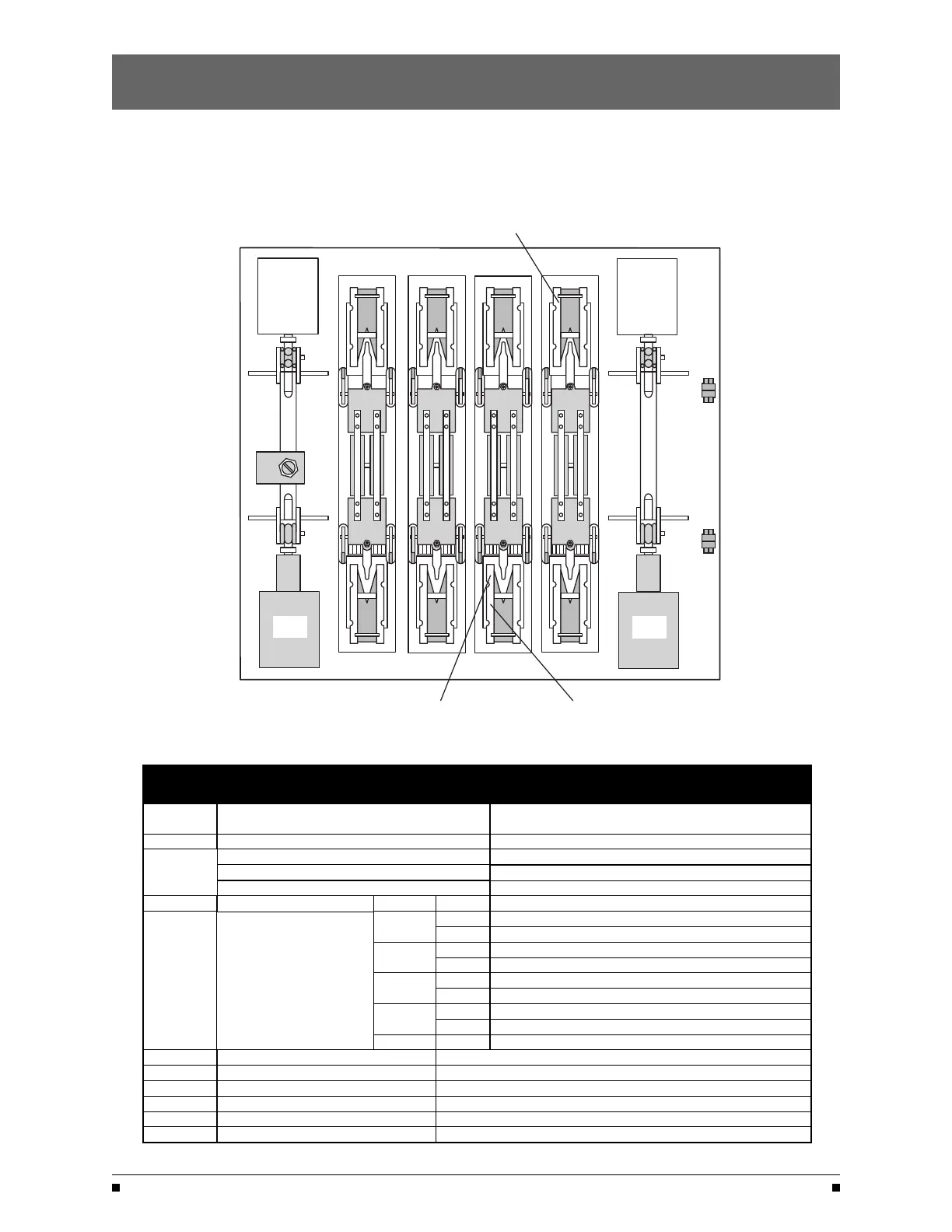

Delayed Transition — 4000 Amps
ARC GRID
ASSEMBLY
STATIONARY
N3
N2
N1
E1
CN
CN
E2
E3
NN
EN
CE
CE
RN
RE
Figure 26
MOVABLE
CONTACT
CONTACT
TAG DESCRIPTION
STOCK NUMBERS
N 1,2,3, N
E 1,2,3, N
Cable Connection Lug
S1511F (3)
Optional
T 1,2,3, N
Wire Size
(12) #2-600 MCM
Stationary Contact Assembly Kit 23P-1655
Arc Grid Assembly Kit
23P-1171
Movable Contact Assembly Kit 23P-1640
CN/CE
Main Operating Coils
Coil Volts Poles
240
3 K-2215
4 K-2215
208
3 K-2227
4 K-2227
575/600
3 K-2217
4 K-2217
480
3 K-2214
4 K-2214
416 3 SPO
SN/SNO CCN Cut-out Switch 23P-1568
SE/SEO CCE Cut-out Switch 23P-1569
A3 Emergency Position Aux Contact (Qty 1) 23p-1356 (Qty 2) 23p-1357 (Qty 3) 23p-1353 (Qty 4) 23p-1355
A4 Normal Position Aux Contact (Qty 1) 23p-1352 (Qty 2) 23p-1353 (Qty 3) 23p-1357 (Qty 4) 23p-1359
DS Disconnect Switch Operator L-4009; ; Contact Block L-1020
RN, RNO, RE, REO
Rectifier 23P-1473 (Up to 240V); 23P-1582 (Up to 600V)
ZTS / ZTSD Operation and Maintenance Manual (71R-3000)
GE Zenith Controls
34
