GE ZTS Series User Manual

Replacement Parts (cont’d)

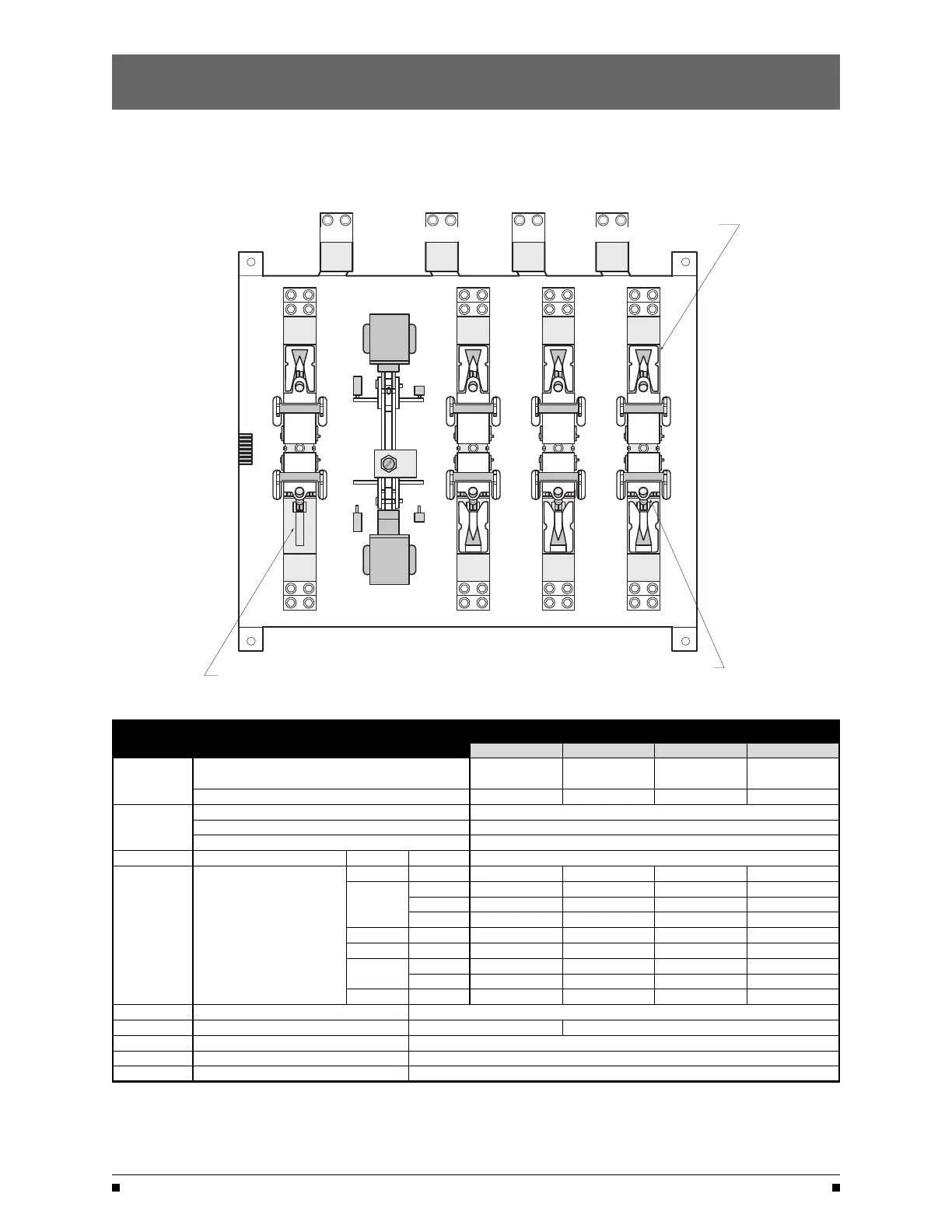

Standard Transition — 600 to 1200 Amps
DS
A3 SE
A4
SN
CN
CE
A3
A4
MOVABLE CONTACT
ARC GRID
STATIONARY CONTACT
(ARC GRID REMOVED FOR CLARITY)
N3
E3
N2
E2
N1
E1
NN
EN

Figure 19
TAG DESCRIPTION
STOCK NUMBERS BY AMPERAGE
600 800 1000 1200
N 1,2,3, N
E 1,2,3, N
T 1,2,3, N
Cable Connection Lug
S1393F
(2)
S1392F
(4)
S1392F
(4)
S1392F
(4)
Wire Size #2-600 MCM #2-600 MCM #2-600 MCM #2-600 MCM
Stationary Contact Assembly Kit Consult Factory
Arc Grid Assembly Kit 23P-1366
Movable Contact Assembly Kit Consult Factory
CN/CE Main Operating Coils Coil Volts Poles
120 2 K-2090F K-2073F K-2073F
K-2073F
240
2 K-2092F K-2070F K-2070F
K-2070F
3 K-2078F K-2070F K-2070F K-2070F
4 K-2091F K-2074F K-2074F K-2074F
208 3,4 K-2091F K-2074F K-2074F K-2074F
575/600 3,4 K-2095 K-2155 K-2155 K-2155
480
3 K-2080F K-2071F K-2071F K-2071F
4 K-2079F K-2071F K-2071F K-2071F
416 3 K-2080F K-2071F K-2071F K-2071F
SN CCN Cut-out Switch 23P-1333
SE CCE Cut-out Switch 23P-1327 23P-1452
A3 Emergency Position Aux Contact (Qty 1) 23p-1327 (Qty 2) 23p-1328 (Qty 3) 23p-1334 (Qty 4) 23p-1336
A4 Normal Position Aux Contact (Qty 1) 23p-1333 (Qty 2) 23p-1334 (Qty 3) 23p-1328 (Qty 4) 23p-1330
DS Disconnect Switch Operator L-4009; ; Contact Block L-1020
ZTS / ZTSD Operation and Maintenance Manual (71R-3000)
GE Zenith Controls
28
