SEC.
PRI.
1
2
3

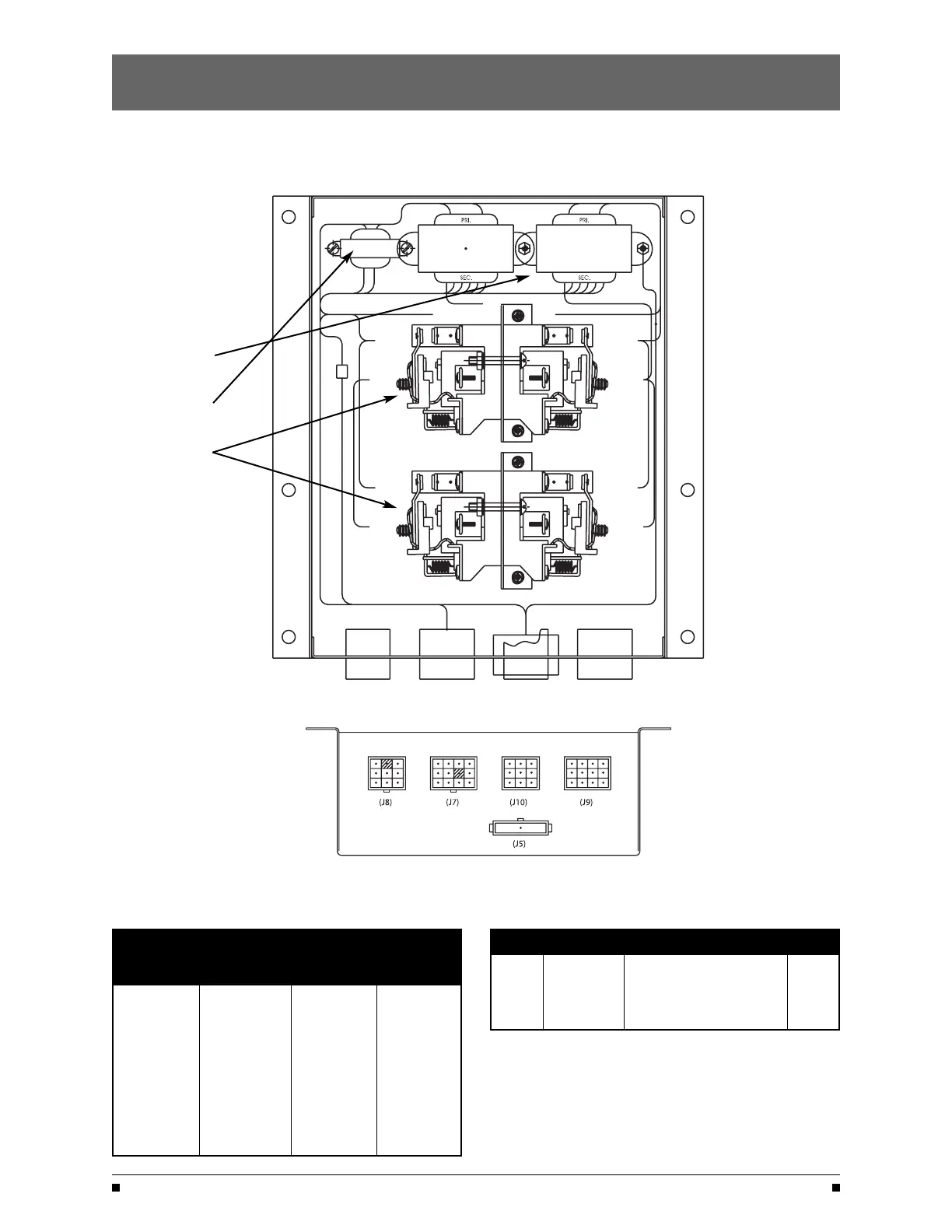

Figure 14
Transformer Usage
Bill of Material
R/T Box Primary 1 VA 25 VA
Assembly Voltage XFMR XFMR
Part No. at 50/60 Hz Part No. Part No.
50P-1034 120V K-3216 K-3224
50P-1035 208-220V K-3217 K-3225
50P-1036 230-240V K-3218 K-3226
50P-1037 277V K-3219 K-3227
50P-1038 380-400V K-3220 K-3228
50P-1039 416-440V K-3221 K-3229
50P-1040 460-480V K-3222 K-3230
50P-1041 575-600V K-3223 K-3231
Item Part No. Description Qty
1 See Chart Transformer (25 VA) 2
2 See Chart Transformer (1 VA) 2
3 K-1260 Coil Control Relay (24V) 4
ZTS / ZTSD Operation and Maintenance Manual (71R-3000)
GE Zenith Controls
22
