GE ZTS Series User Manual


Replacement Parts (cont’d)
Standard Transition — 1600 to 3000 Amps
CN
CE
DS
RN
RE
A3 SE
A4
SN
E3
N3
E2
N2
E1
N1
EN
NN
ARCH GRID ASSEMBLY
MOVEABLE CONTACT
STATIONARY CONTACT

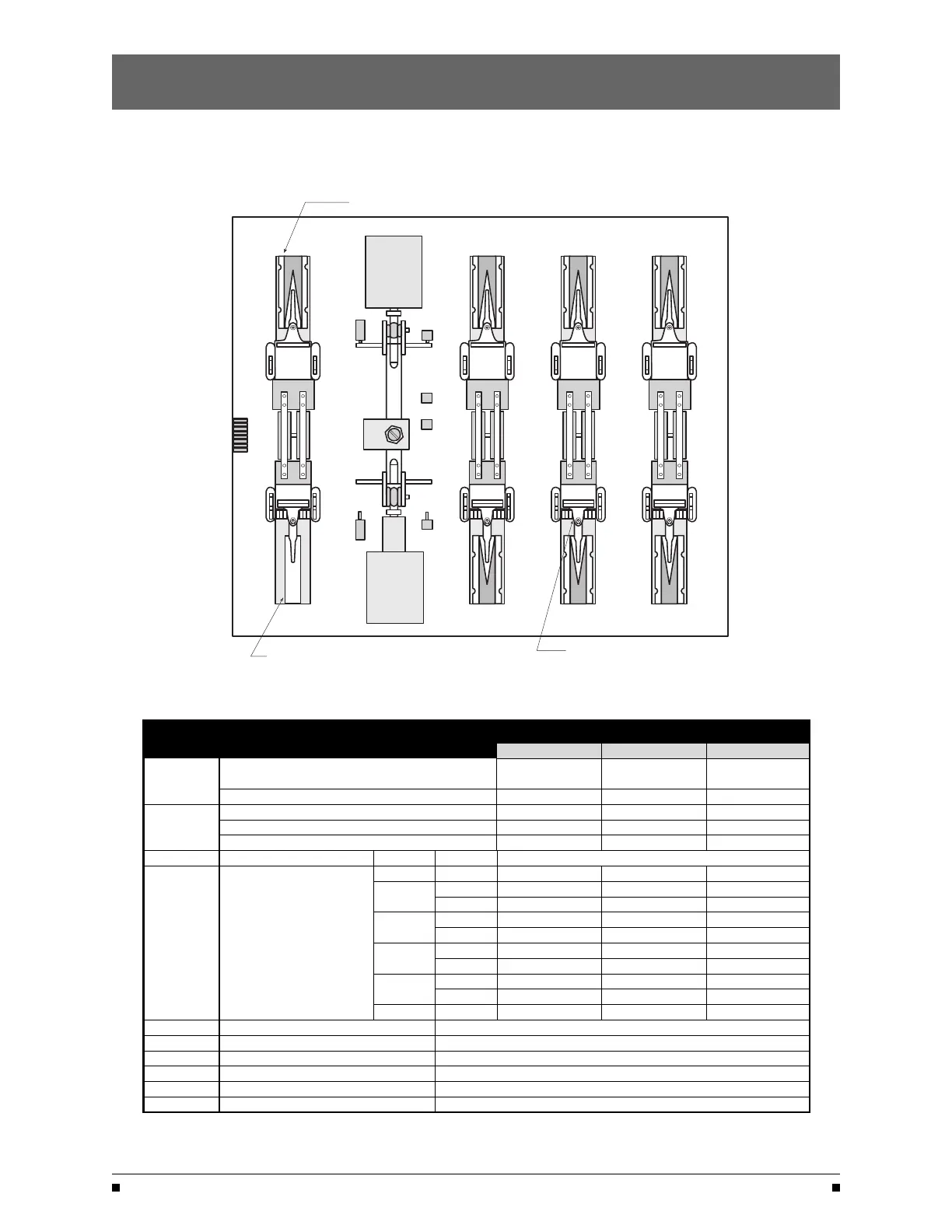

Figure 20
(ARCH GRID REMOVED FOR CLARITY)
TAG DESCRIPTION
STOCK NUMBERS BY AMPERAGE
1600 2000 3000
N 1,2,3, N
E 1,2,3, N
T 1,2,3, N
Cable Connection Lug
S1126F (2)
Optional
S1126F (2)
Optional
S1126F (2)
Optional
Wire Size (8) #2-600 MCM (8) #2-600 MCM (8) #2-600 MCM
Stationary Contact Assembly Kit 23P-1594 23P-1594 23P-1594
Arc Grid Assembly Kit 23P-1171 23P-1171 23P-1171
Movable Contact Assembly Kit 23P-1400 23P-1400 23P-1400
CN/CE Main Operating Coils Coil Volts Poles
120 2 SPO SPO SPO
240
2,3 K-2123F K-2123F K-2123F
4 K-2127F K-2127F K-2127F
208
3 K-2125F K-2125F K-2125F
4 K-2128F K-2128F K-2128F
575/600
3 K-2153F K-2153F K-2153F
4 K-2154F K-2154F K-2154F
480
3 K-2120F K-2120F K-2120F
4 K-2130F K-2130F K-2130F
416 3 K-2126F K-2126F K-2126F
SN CCN Cut-out Switch 23P-1352
SE CCE Cut-out Switch 23P-1356
A3 Emergency Position Aux Contact (Qty 1) 23p-1356 (Qty 2) 23p-1357 (Qty 3) 23p-1353 (Qty 4) 23p-1355
A4 Normal Position Aux Contact (Qty 1) 23p-1352 (Qty 2) 23p-1353 (Qty 3) 23p-1357 (Qty 4) 23p-1359
DS Disconnect Switch Operator L-4009; ; Contact Block L-1020
RN, RE Rectifier 23P-1473 (Up to 240V); 23P-1582 (Up to 600V)
GE Zenith Controls
ZTS / ZTSD Operation and Maintenance Manual (71R-3000)
29
