Articulated Arm - Horizontal Drifting
3-5
Articulated Arm - Horizontal Drifting
1. Turn OFF the power switch.
2. Disconnect the external power source:
– FOR A SYSTEM WITH A LINE CORD (120 V ac only), unplug the
line cord.
– FOR A HARD-WIRED SYSTEM, disconnect the mains supply
(external power source), and use a meter to verify the mains supply is
disconnected.
3. Slide off the end cap cover from the end of the Horizontal Arm.

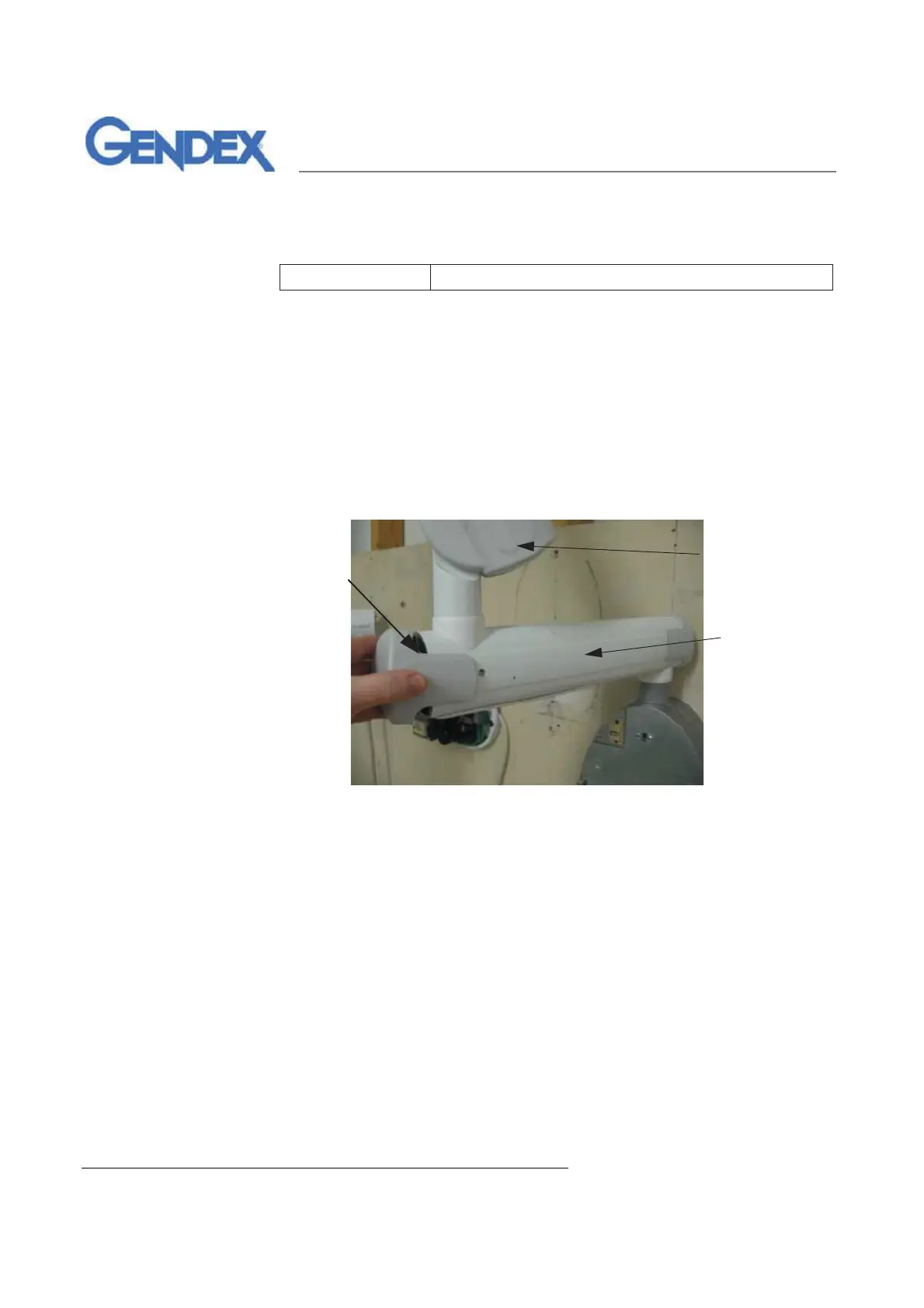

Figure 3-4 Removing the End Cap Cover
(Continued)
Tools Required: 4 mm Allen Wrench
To Next Page
