Gendex Expert DC Service Manual

Horizontal Arm
032-0207-EN Rev 0
6-4
Horizontal Arm

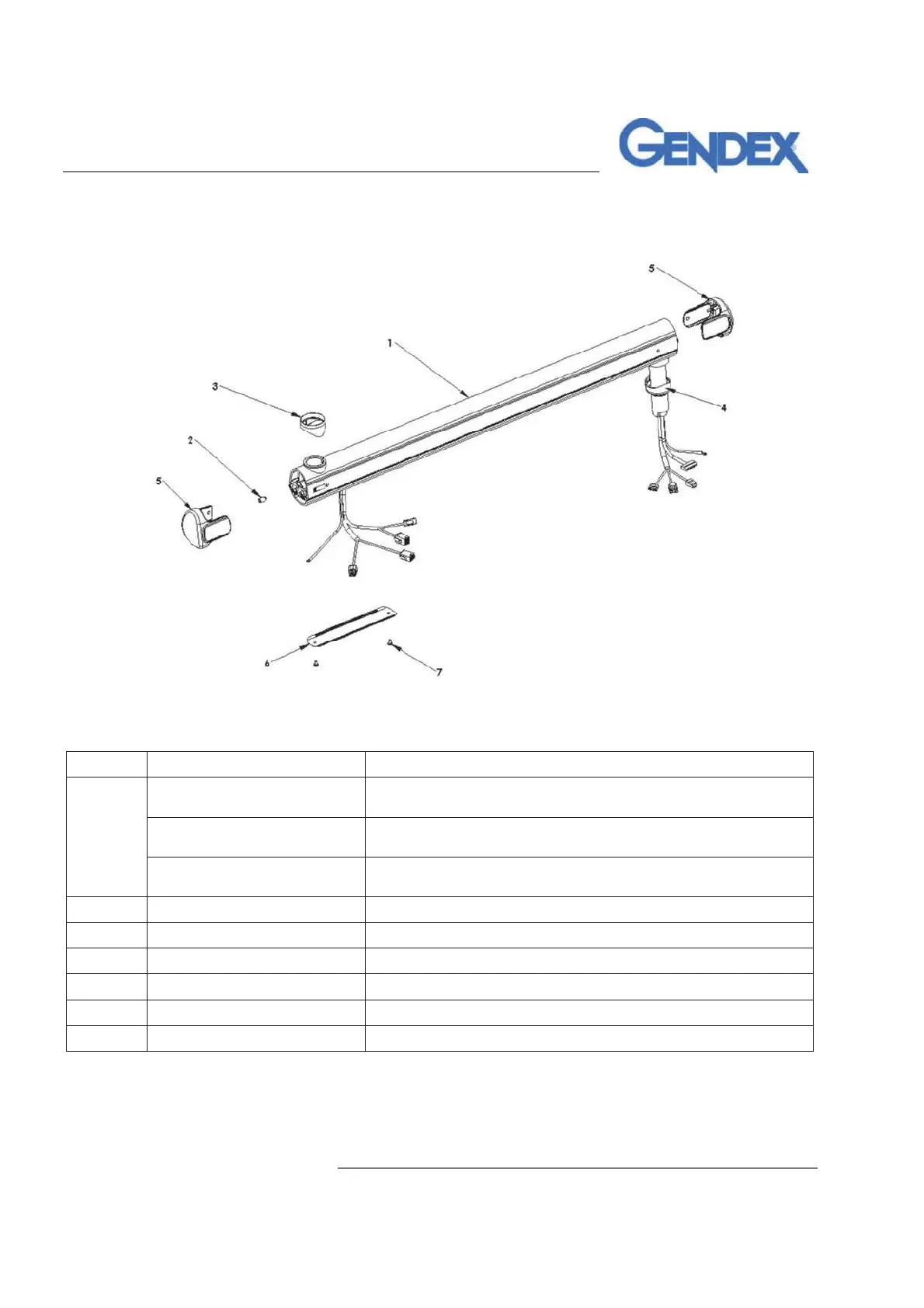

Figure 6-3 Horizontal Arm Diagram
Table 6-2 Horizontal Arm Description
Item Part No. Description
1 112-1193G1
Assy, Horizontal Arm, Expert, 75" (191cm)
reach
112-1193G2
Assy, Horizontal Arm, Expert, 65" (165cm)
reach
112-1193G3
Assy, Horizontal Arm, Expert, 55" (140cm)
reach
2
09-06-080012-05
Nylon Tipped Set Screw
3
303-0125P1
Joint Arm Cover, Articulated Arm Side
4
303-0124P1
Joint Arm Cover, Converter Side
5 303-0126P1 Cap, End, Horizontal Arm
6 303-0106P2 Cover Wire Access
7 08-10-040008-01 Screw, M4 x 8, PPHDMS
Printed on: 20 Apr 2012, 11:34:10 am; Printed by: UWE.ZELLER
