Articulated Arm - Vertical Drifting
3-9
Inner Section
The inner section of the Articular Arm is the section nearest the fork of the
Tubehead.

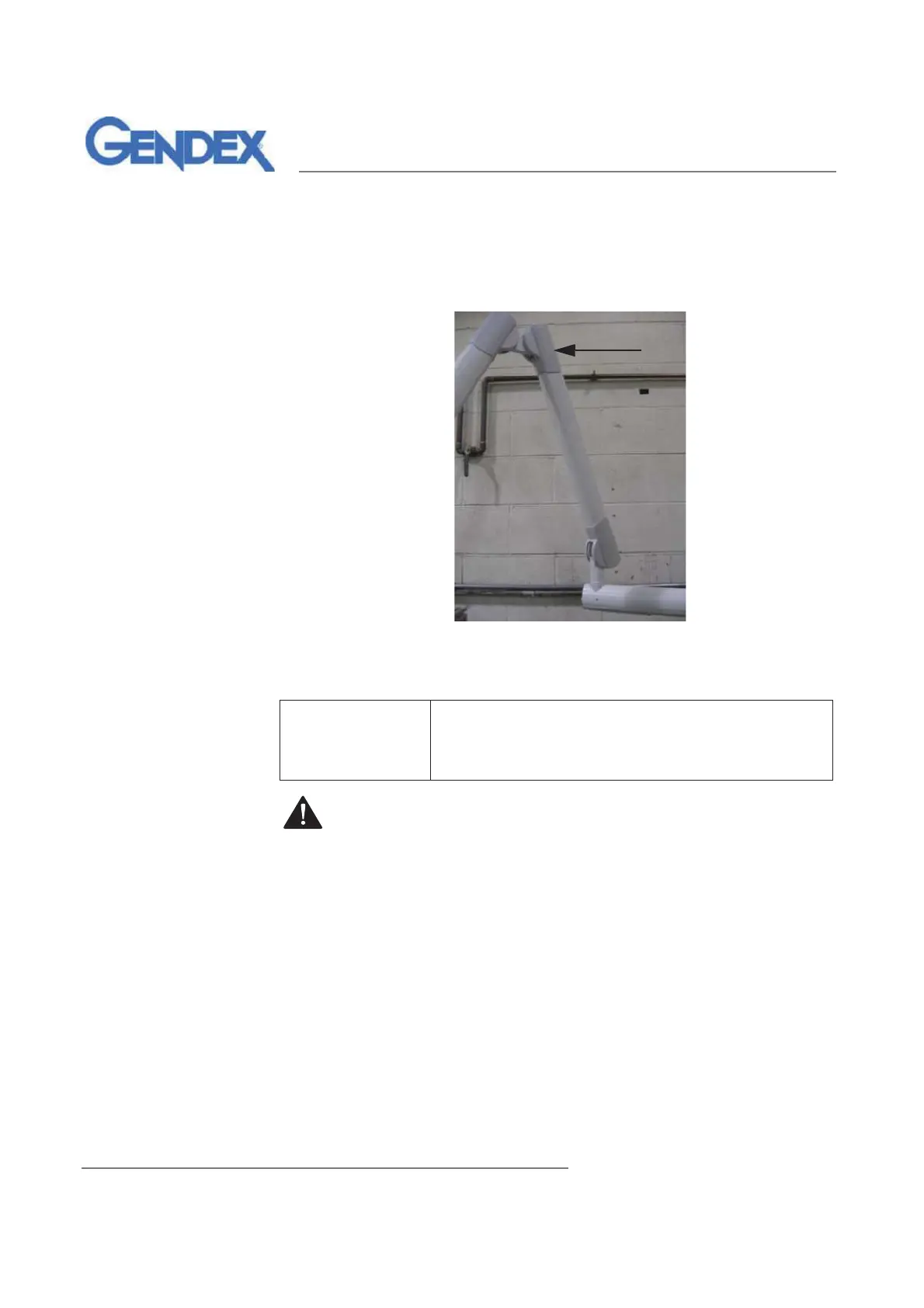

Figure 3-8 Locating the Inner Section of the Articulated
Arm
Ensure that you follow the procedure referenced in the following step.
This equipment must always be electrically disconnected from the
mains electrical supply (external power source) before beginning any
procedure.
1. Follow the steps outlined in Opening an End of the Articulated Arm on
page 1-9 to remove the trim cover from the end of the inner section of
the Articulated arm.
2. Position the inside section of the Articulated Arm at approximately a
45° angle to the Horizontal Arm.
The angle of the arm allows access to the adjusting nut (see Figure 3-9).
(Continued)
Tools Required 7 ½" (190 mm) long 5/16" (8 mm) Allen Wrench
- or -
8” (203 mm) long 8 mm T-handle Allen Wrench
Small Flat Head Screwdriver
