- 15 - Hardware Installation

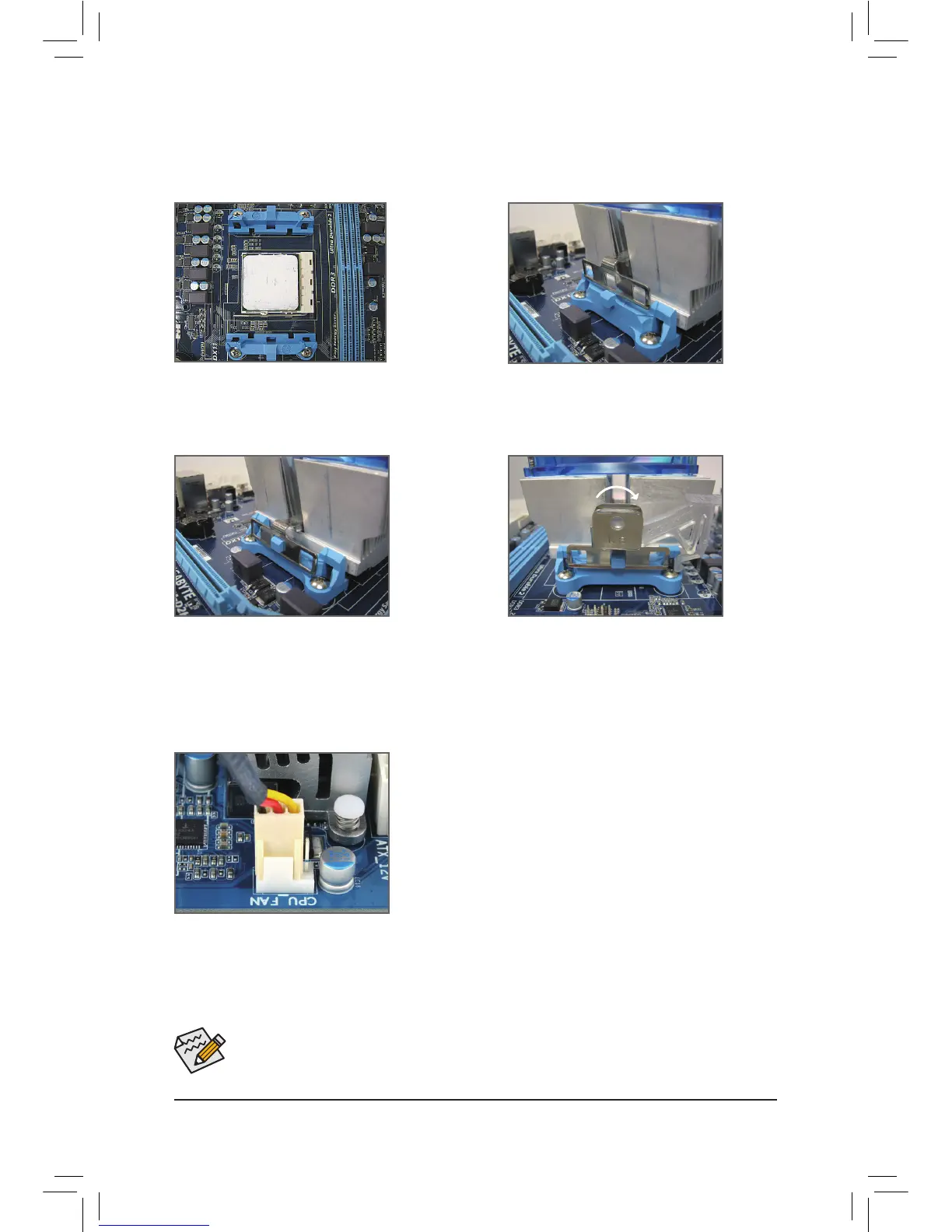

1-3-2 Installing the APU Cooler
Follow the steps below to correctly install the APU cooler on the APU. (The following procedure uses the GI-
GABYTE cooler as the example.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed APU.
Step 2:
Place the APU cooler on the APU.
Step 3:
Hook the APU cooler clip to the mounting lug
on one side of the retention frame. On the other
side,push straight down on the the APU cooler
clip to hook it to the mounting lug on the reten-
tion frame.
Step 4:
Turn the cam handle from the left side to the
right side (as the picture above shows) to lock
into place. (Refer to your APU cooler installation
manual for instructions on installing the cooler.)
Step 5:
Finally, attach the power connector of the APU cooler to the APU fan
header (CPU_FAN) on the motherboard.
Use extreme care when removing the APU cooler because the thermal grease/tape between the
APU cooler and APU may adhere to the APU. Inadequately removing the APU cooler may damage
the APU.
