- 23 - Hardware Installation

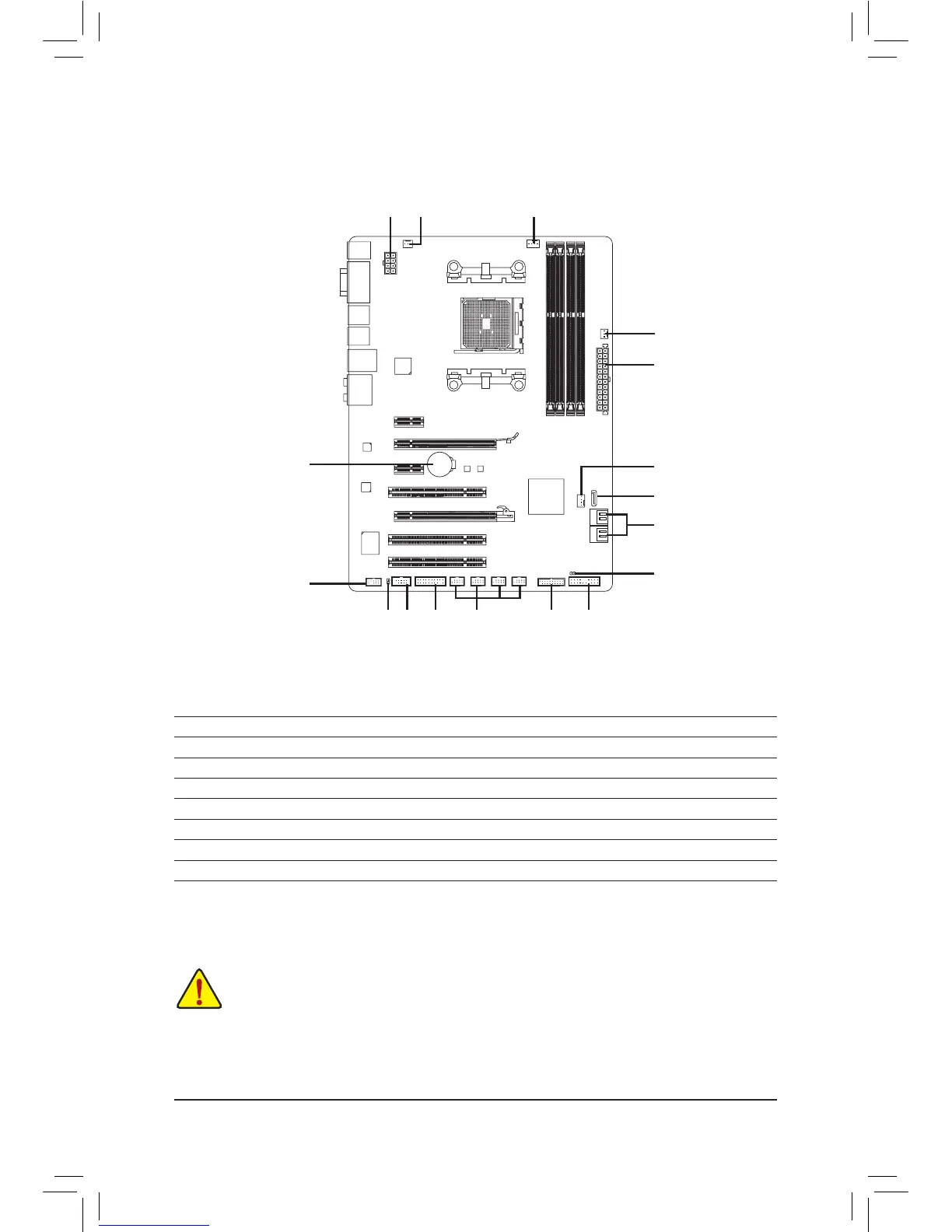

1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1
4
5
2
12
13
9
3
7
8
11
10
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN/SYS_FAN2
5) PWR_FAN
6) BAT
7) SATA3_0/1/2/3/4
8) CLR_CMOS
9) F_PANEL
10) F_AUDIO
11) SPDIF_O
12) F_USB1/F_USB2/F_USB3/F_USB4
13) F_USB30
14) COM
15) TPM
4
7
6
14 15
To Next Page
