Gigabyte GA-MA785GT-UD3H User Manual

- 17 - Hardware Installation

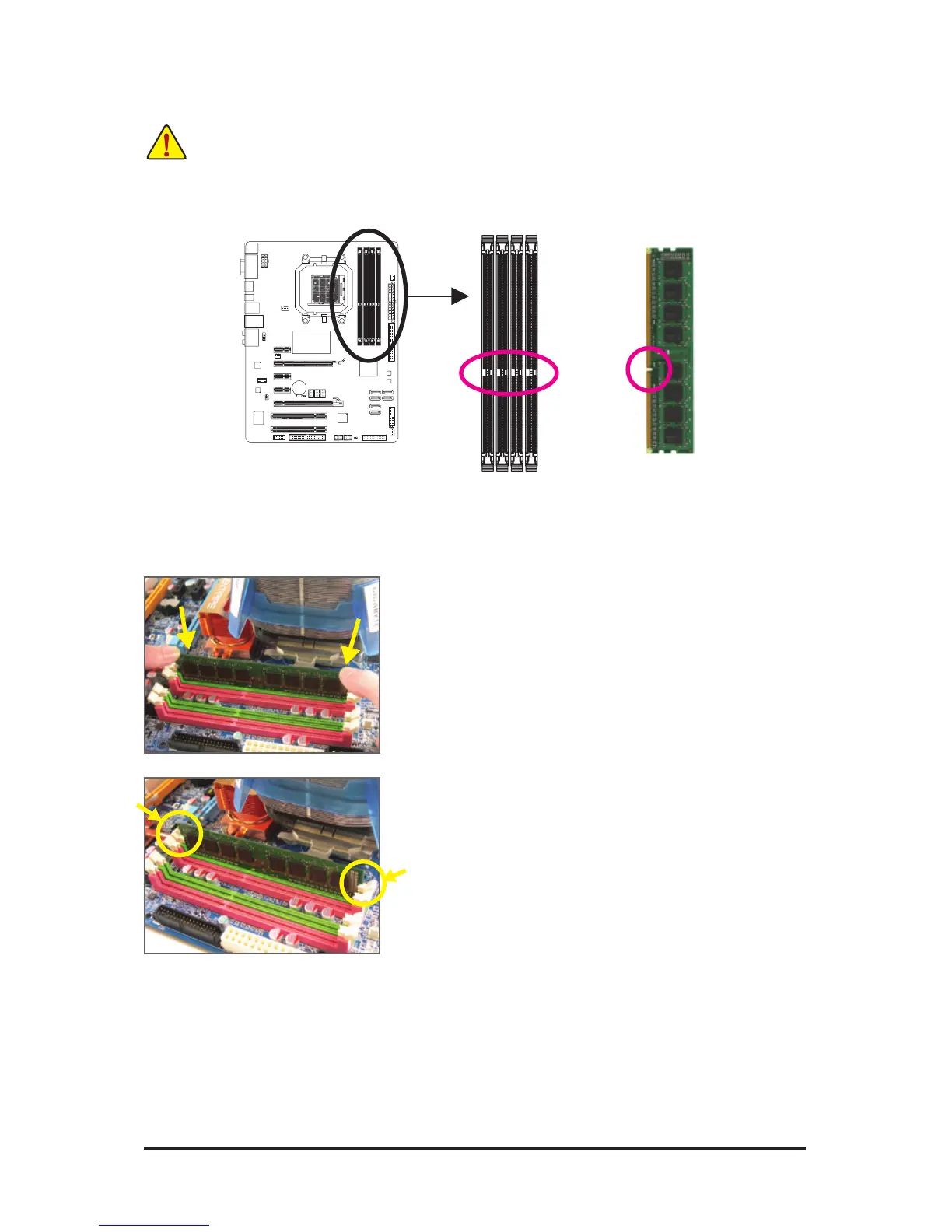

1-4-2 Installing a Memory
Notch
DDR3 DIMM
A DDR3 memory module has a notch, so it can only t in one direction. Follow the steps below to correctly
install your memory modules in the memory sockets.
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory module
on the socket. As indicated in the picture on the left, place your n-
gers on the top edge of the memory, push down on the memory and
insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when the
memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to install
DDR3 DIMMs on this motherboard.

Gigabyte GA-MA785GT-UD3H Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA connectors	6
Number of Parallel ATA connectors	1
Controller interface type	SATA
Controller 2nd interface type	IDE
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/ XP
RAID levels	0, 1, 1+0, JBOD
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	229 mm
Width	305 mm
