Gigabyte GA-MA785GT-UD3H User Manual

Appendix - 90 -

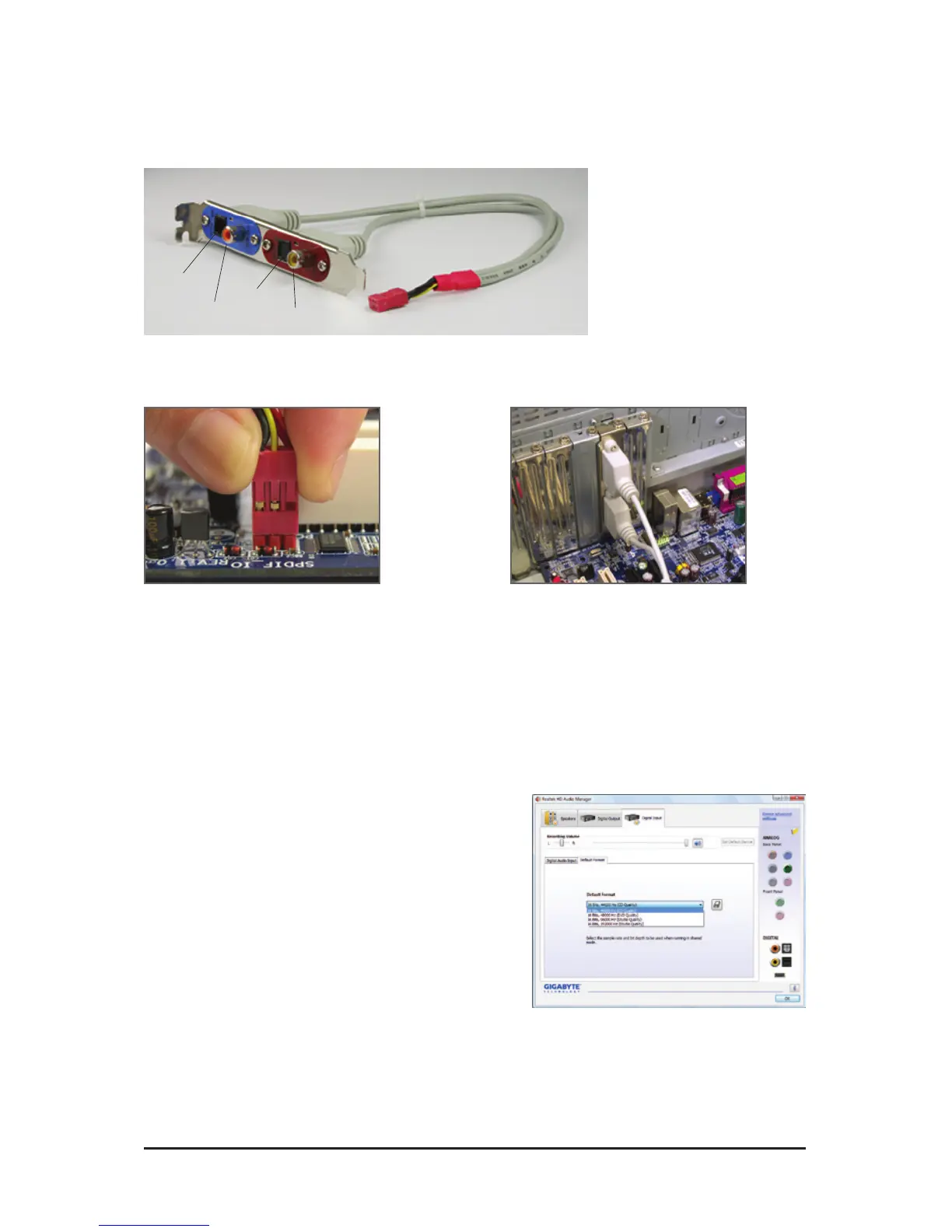

5-2-2 Conguring S/PDIF In/Out
The S/PDIF In and Out cable (optional) provides S/PDIF In and S/PDIF Out functionalities.
(Note) The actual locations of the SPDIF In and SPDIF Out connectors may differ by model.
Coaxial
S/PDIF Out
Optical
S/PDIF Out
Optical
S/PDIF In
Coaxial
S/PDIF In
Step:
After connecting the S/PDIF In device, access the Digital In-
put screen. Click the Default Format tab to select the default
format. Click OK to complete.
A. Installing the S/PDIF In and Out Cable:
B. Conguring S/PDIF In:
The S/PDIF In jacks on the SPDI/F In and Out cable allow you to input digital audio signals to the computer
for audio processing.
Step 1:
First, attach the connector at the end of the cable
to the SPDIF_IO header on your motherboard.
Step 2:
Secure the metal bracket to the chassis back
panel with a screw.

Gigabyte GA-MA785GT-UD3H Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA connectors	6
Number of Parallel ATA connectors	1
Controller interface type	SATA
Controller 2nd interface type	IDE
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/ XP
RAID levels	0, 1, 1+0, JBOD
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	229 mm
Width	305 mm
