Gigabyte GA-MA785GT-UD3H User Manual

- 93 - Appendix
5-2-4 Conguring Microphone Recording

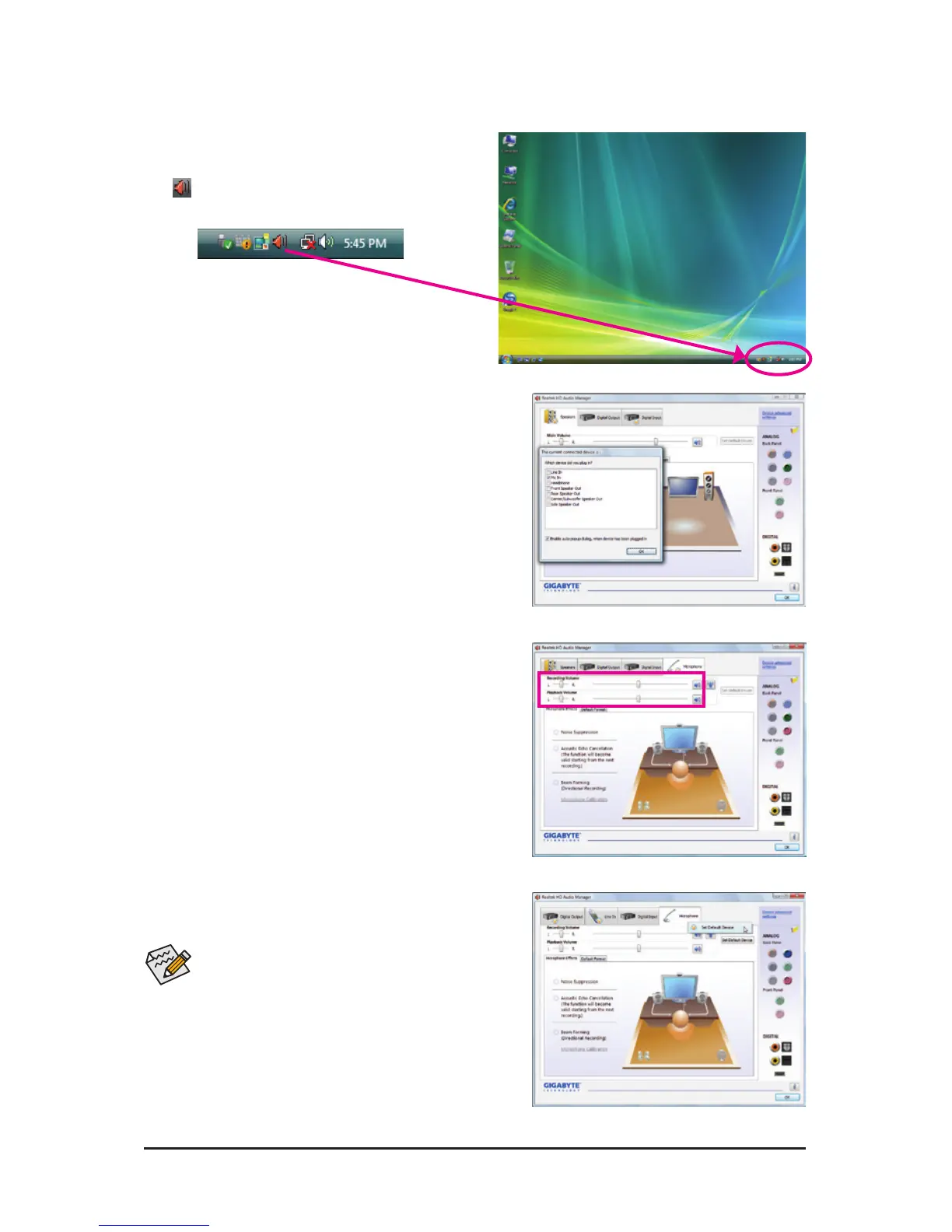

Step 1:
After installing the audio driver, the HD Audio Manager
icon will appear in the notication area. Double-click
the icon to access the HD Audio Manager.
Step 2:
Connect your microphone to the Mic in jack (pink) on
the back panel or the Mic in jack (pink) on the front
panel. Then congure the jack for microphone function-
ality.
Note: The microphone functions on the front panel and
back panel cannot be used at the same time.
Step 3:
Go to the Microphone screen. Do not mute the record-
ing volume, or you'll not be able to record the sound.
To hear the sound being recorded during the recording
process, do not mute the playback volume. It is recom-
mended that you set the volumes at a middle level.
If you want to change the current sound input
default device to microphone, right-click on Mi-
crophone and select Set Default Device.

Gigabyte GA-MA785GT-UD3H Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA connectors	6
Number of Parallel ATA connectors	1
Controller interface type	SATA
Controller 2nd interface type	IDE
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/ XP
RAID levels	0, 1, 1+0, JBOD
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	229 mm
Width	305 mm
