Gigabyte GA-MA785GT-UD3H User Manual

- 23 - Hardware Installation

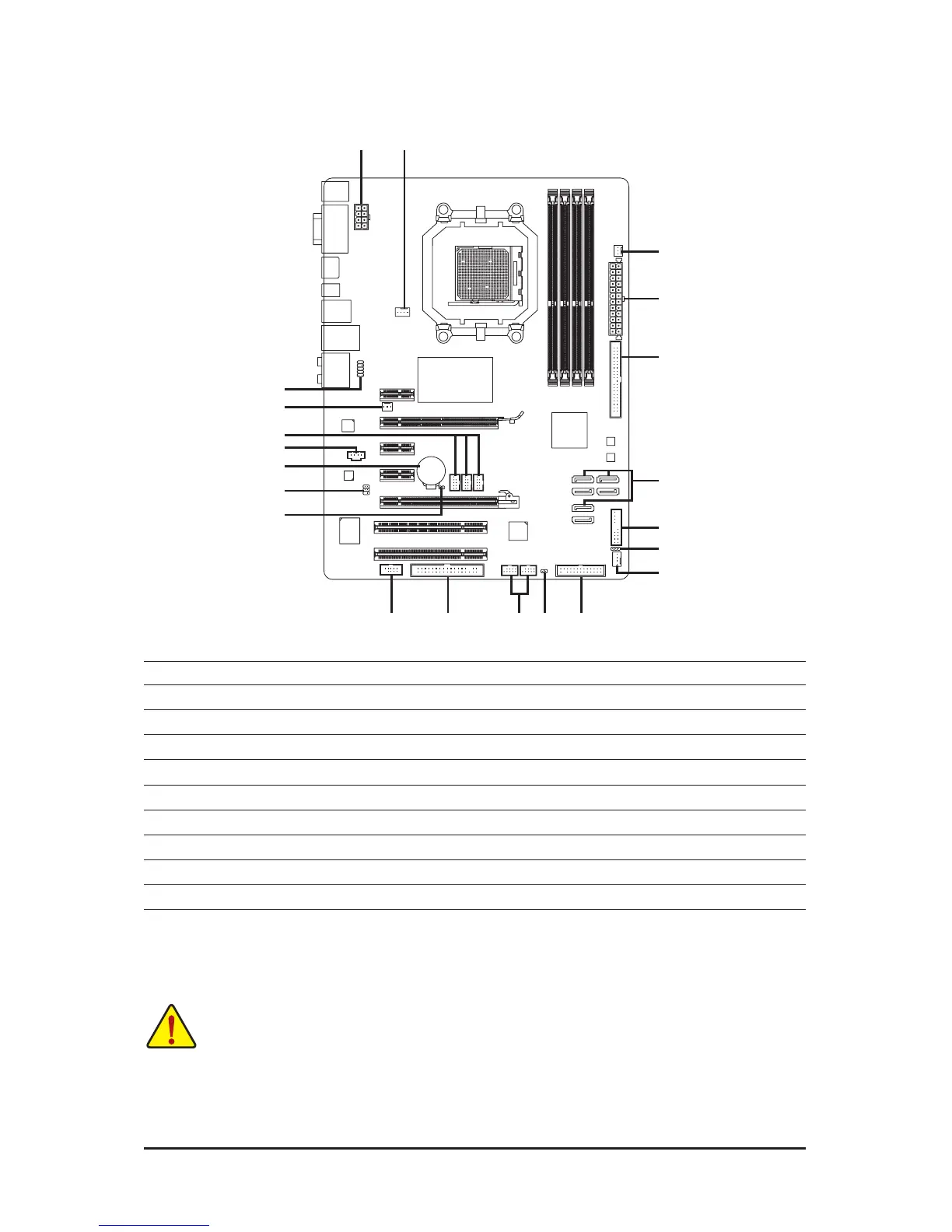

1-8 Internal Connectors
1
5
3
2
8
19
7
9
11
4
18 6
12
14
10
4
16
13
15
17
20
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0/1/2/3/4/5
9) PWR_LED
10) BATTERY
11) F_PANEL
12) F_AUDIO
13) CD_IN
14) SPDIF_IO
15) F_USB1/F_USB2/F_USB3
16) F_1394_1/F_1394_2
17) LPT
18) COM
19) CI
20) CLR_CMOS
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

Gigabyte GA-MA785GT-UD3H Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA connectors	6
Number of Parallel ATA connectors	1
Controller interface type	SATA
Controller 2nd interface type	IDE
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/ XP
RAID levels	0, 1, 1+0, JBOD
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	229 mm
Width	305 mm
