Hardware Installation - 16 -
1-4 Installing the Memory
DDR3_1
DDR3_2
Due to CPU limitation, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of
the same capacity, brand, speed, and chips be used.
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
• Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one direc-
tion. If you are unable to insert the memory, switch the direction.

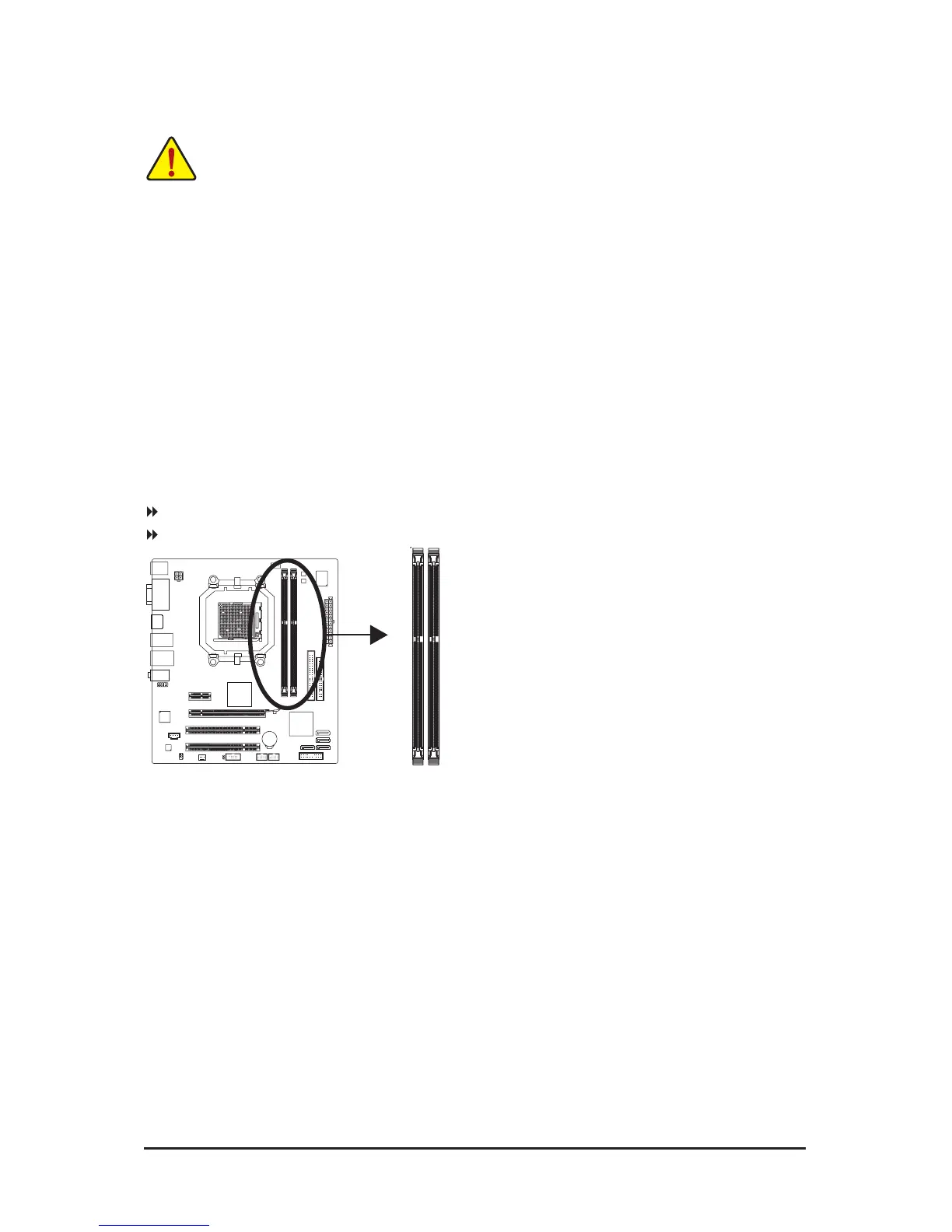

1-4-1 Dual Channel Memory Conguration
This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the
memoryisinstalled,the BIOSwill automaticallydetect thespecications andcapacity ofthememory. En-
abling Dual Channel memory mode will double the original memory bandwidth.
The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as
following:
Channel 0: DDR3_1
Channel 1: DDR3_2
