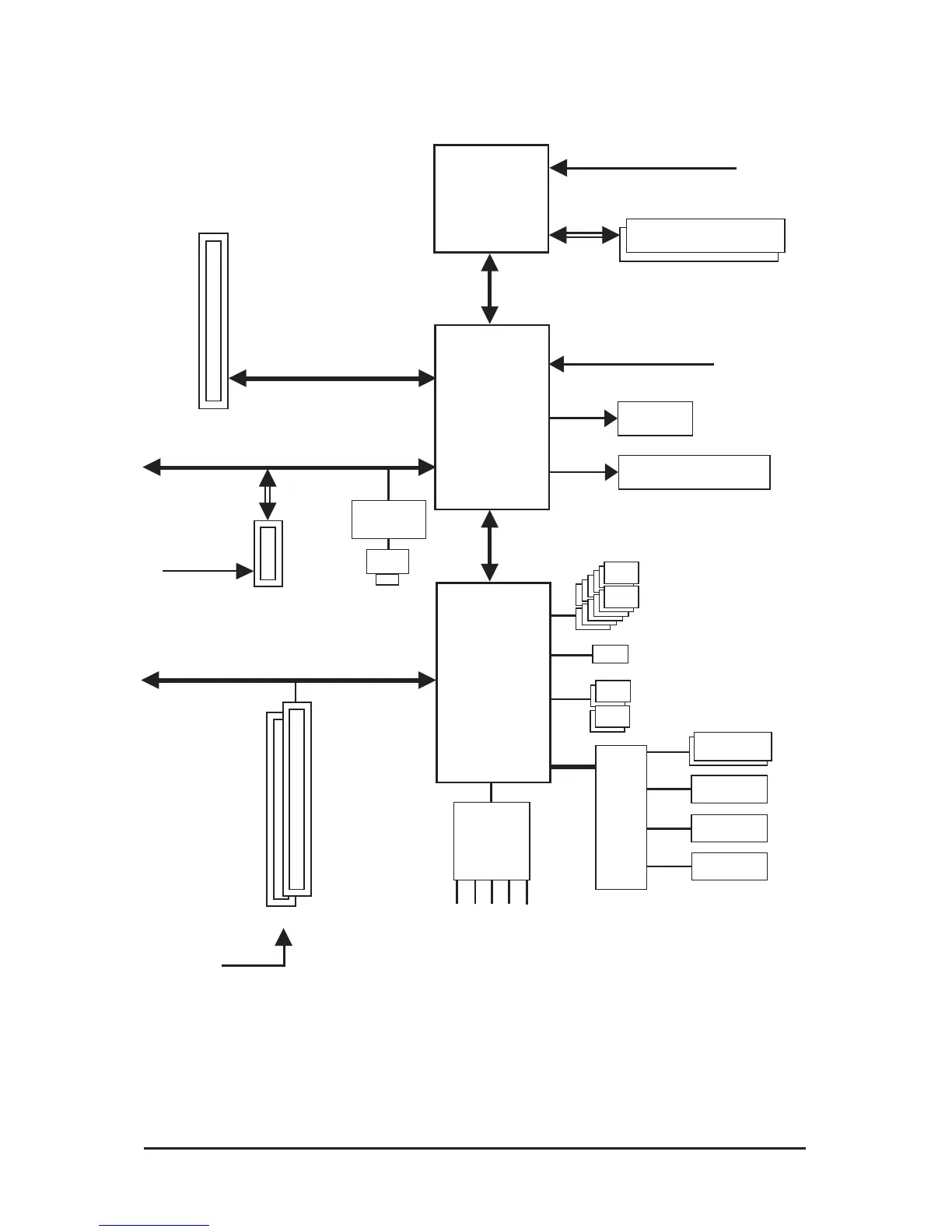

Block Diagram
j
Only for GA-MA78LM-S2H
(Note) Simultaneous output for DVI-D and HDMI is not supported.
AM3 CPU
Hyper Transport Bus
AMD 760G
AMD SB710
2 PCI
PCI Bus
PCI CLK
(33 MHz)
PCIe CLK
(100 MHz)
PCI Express Bus
IT8718
Floppy
CPU CLK+/- (200 MHz)
ATA-133/100/66/33 IDE Channel
Dual BIOS
COM Port
LPC
Bus
1 PCI Express x1
RTL8111D
DDR3 1333/1066/800 MHz
Dual Channel Memory
PCIe CLK
(100 MHz)
1 PCI Express x16
4 SATA 3Gb/s
LAN
RJ45
x1
GFX CLK (100 MHz)
D-Sub
DVI-D or HDMI
j
(Note)
PCI Express x16
PS/2 KB or Mouse
12 USB Ports
Line Out
MIC
Line In
S/PDIF In
S/PDIF Out
CODEC
