Gigabyte GA-MA78LMT-S2 User Manual

- 23 - Hardware Installation

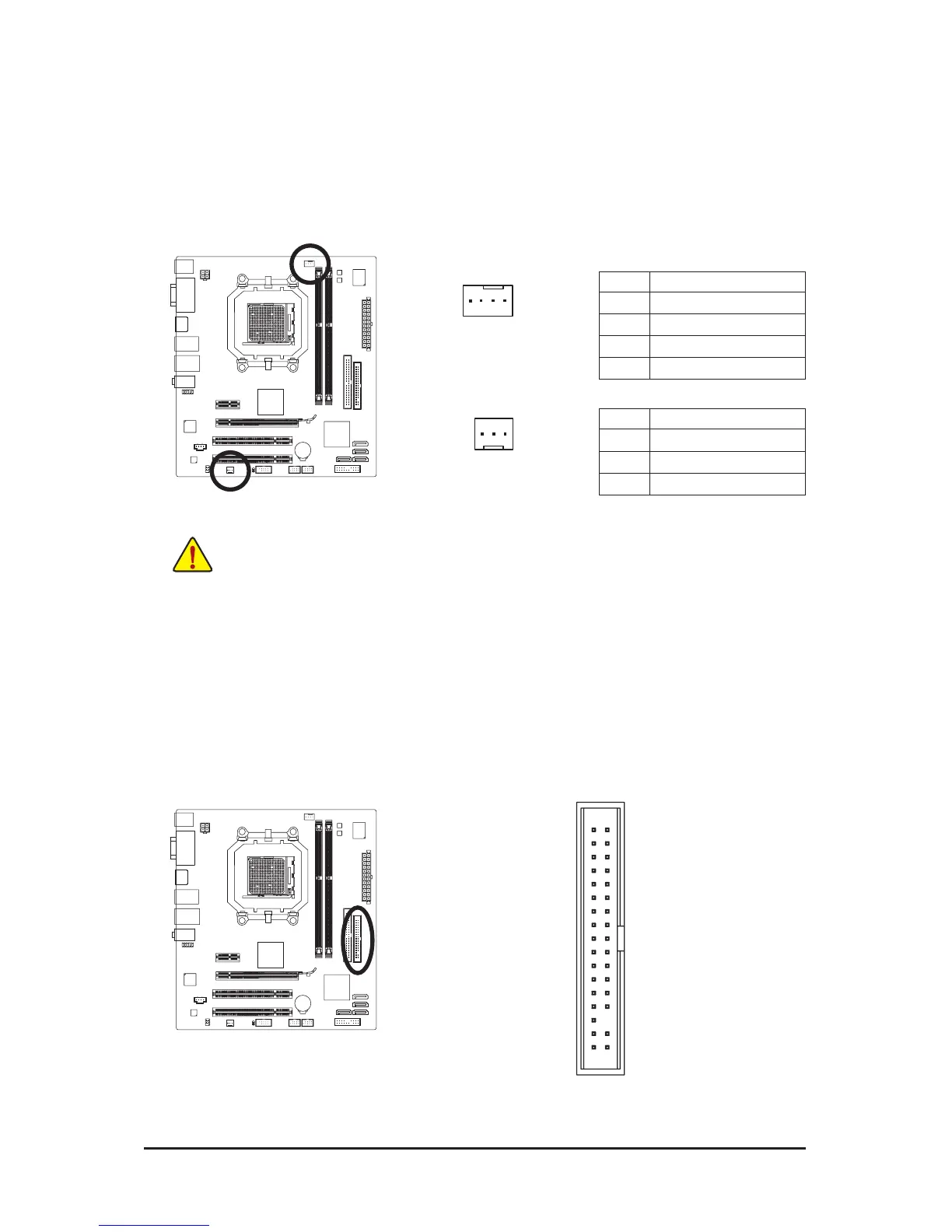

3/4) CPU_FAN/SYS_FAN (Fan Headers)
The motherboard has a 4-pin CPU fan header (CPU_FAN) and a 3-pin (SYS_FAN) system fan headers.
Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect
it in the correct orientation (the black connector wire is the ground wire). The motherboard supports CPU
fan speed control, which requires the use of a CPU fan with fan speed control design. For optimum heat
dissipation, it is recommended that a system fan be installed inside the chassis.
CPU_FAN:
PinNo. Denition
1 GND
2 +12V / Speed Control
3 Sense
4 Speed Control
CPU_FAN
1
• Be sure to connect fan cables to the fan headers to prevent your CPU and system from over-
heating. Overheating may result in damage to the CPU or the system may hang.
• These fan headersare not conguration jumper blocks. Do not place a jumper cap on the
headers.
5) FDD (Floppy Disk Drive Connector)
 Thisconnector is used to connect a oppy disk drive.The types of oppy disk drives supported are:
360KB,720KB,1.2MB,1.44MB,and2.88MB.Beforeconnectingaoppydiskdrive,besuretolocate
pin1oftheconnectorandtheoppydiskdrivecable.Thepin1ofthecableistypicallydesignatedby
astripeofdifferentcolor.Forpurchasingtheoptionaloppydiskdrivecable,pleasecontactthelocal
dealer.
1
2
33
34
SYS_FAN
SYS_FAN:
PinNo. Denition
1 GND
2 +12V
3 Sense
1
