Gigabyte GA-MA790XT-UD4P User Manual

GA-MA790XT-UD4P Motherboard - 30 -

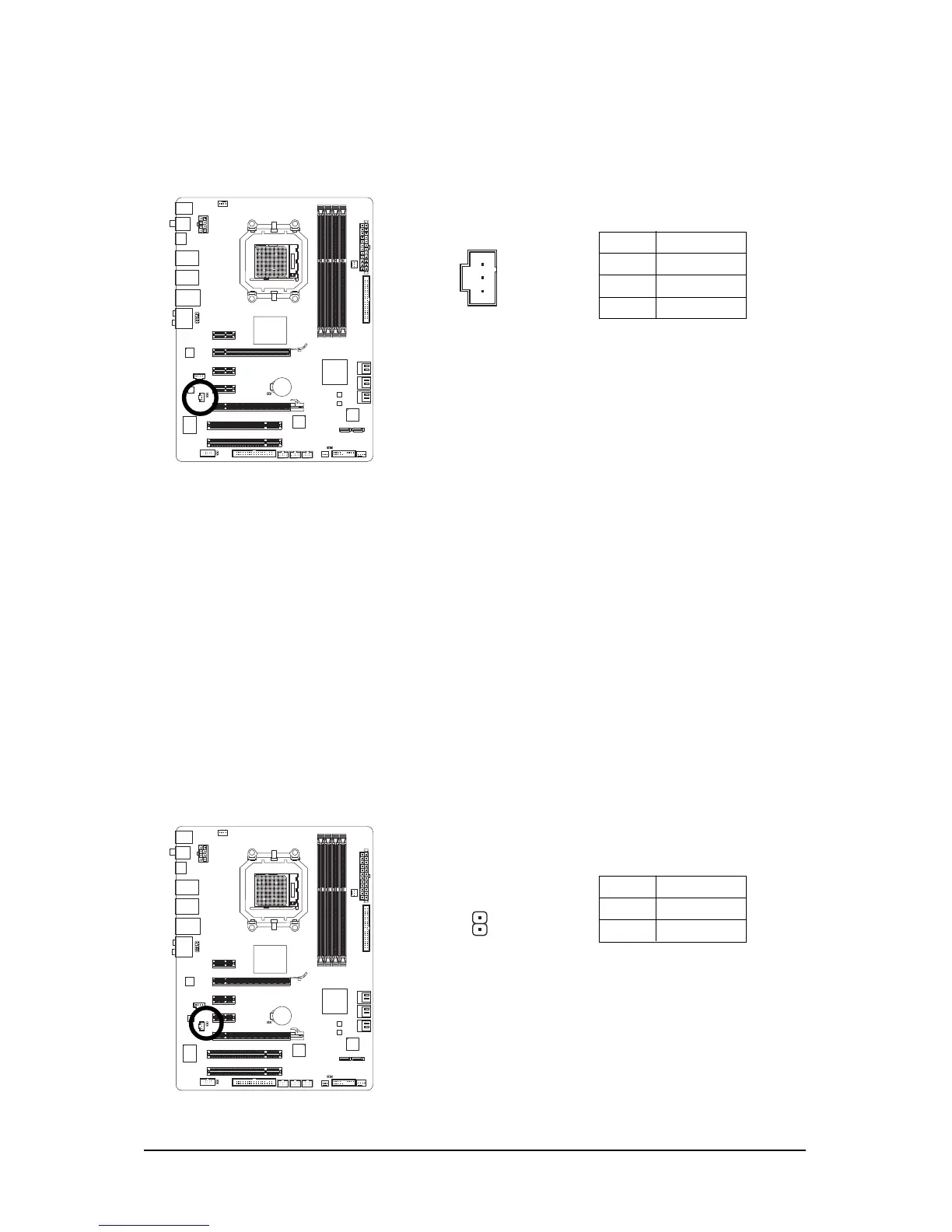

14) SPDIF_IN (S/PDIF In Header, Red)
This header supports digital S/PDIF in and can connect to an audio device that supports digital
audio out via an optional S/PDIF in cable. For purchasing the optional S/PDIF in cable, please
contact the local dealer.
15) SPDIF_OUT (S/PDIF Out Header)
This header supports digital S/PDIF out and connects a S/PDIF digital audio cable (provided by
expansion cards) for digital audio output from your motherboard to certain expansion cards like
graphics cards and sound cards. For example, some graphics cards may require you to use a
S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if
you wish to connect an HDMI display to the graphics card and have digital audio output from the
HDMI display at the same time. For information about connecting the S/PDIF digital audio cable,
carefully read the manual for your expansion card.
Pin No. Definition
1 SPDIFO
2 GND
Pin No. Definition
1 Power
2 SPDIFI
3 GND
1
1

Gigabyte GA-MA790XT-UD4P Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	2
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	8
Controller interface type	SATA
Controller 2nd interface type	IDE
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Audio chip	Realtek ALC889
Motherboard chipset	AMD 790X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/ XP
PCI Express x1 slots	3
RAID levels	0, 1, 5, 10, JBOD
LAN controller	Realtek RTL8111DL
Networking features	10/100/1000 Mbit/s

Weight and Dimensions

Depth	233 mm
Width	305 mm
