Appendix- 97 -
(Note) The actual locations of the SPDIF In and SPDIF Out connectors may differ by model.

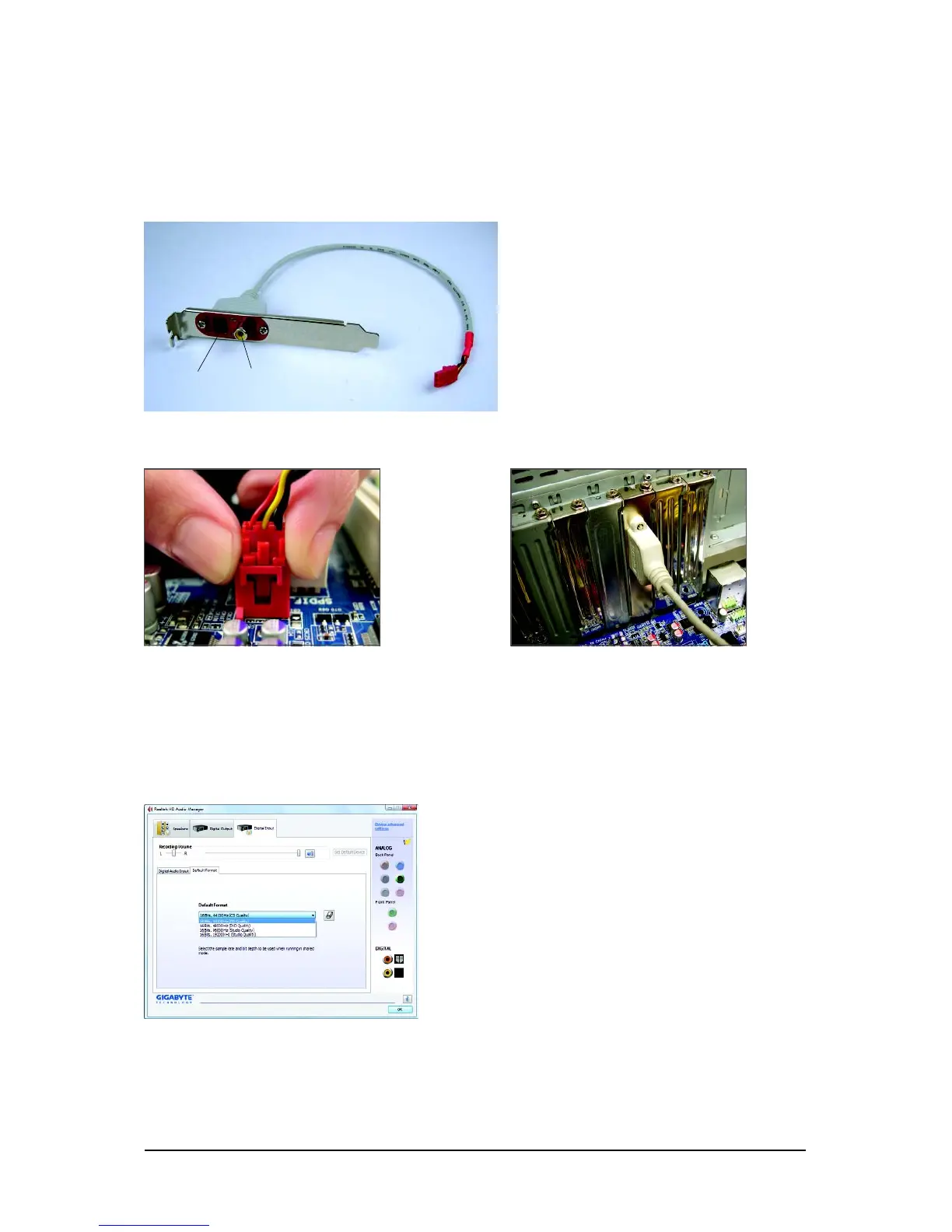

1. Installing the S/PDIF In Cable:
2. Configuring S/PDIF In:
On the Digital Input screen, click the Default Format tab to select the default format. Click OK to complete.
Step 1:
First, attach the connector at the end of the cable
to the SPDIF_I header on your motherboard.
Step 2:
Secure the metal bracket to the chassis back
panel with a screw.
Coaxial
S/PDIF In
Optical
S/PDIF In
S/PDIF In Cable
5-2-2 Configuring S/PDIF In/Out
A. S/PDIF In:
The S/PDIF in cable (optional) allows you to input digital audio signals to the computer for audio
processing.

Gigabyte GA-MA790XT-UD4P Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	2
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	8
Controller interface type	SATA
Controller 2nd interface type	IDE
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Audio chip	Realtek ALC889
Motherboard chipset	AMD 790X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/ XP
PCI Express x1 slots	3
RAID levels	0, 1, 5, 10, JBOD
LAN controller	Realtek RTL8111DL
Networking features	10/100/1000 Mbit/s

Weight and Dimensions

Depth	233 mm
Width	305 mm
