Global Power Technologies ASSEMBLY AND INSTALLATION
302842 Rev0 | Sentinel Page 16 of 61
3.3 ASSEMBLY
WARNING!
The Sentinel
weighs approximately 93 lb. [42.2 kg]. Make sure that the platform,
pole, or wall fasteners can support this weight.
The Sentinel
TEG comes with a mounting bracket to easily attach the main assembly to a pole or wall.
Separate this mounting bracket, with the supporting plywood, from the back of the Sentinel TEG by
removing those four BUTTON SOCKET CAP 1/4-28 machine screws (Refer to Figure 6, two short 1/4-
28 x 7/16 screws are fastened on the mounting crossbar, and two long 1/4-28 x 5/8 screws are
fastened on the other end of the mounting bracket). Keep these 4 machine screws for mounting.
Remove the supporting plywood from the mounting bracket.
3.3.1 POLE MOUNT

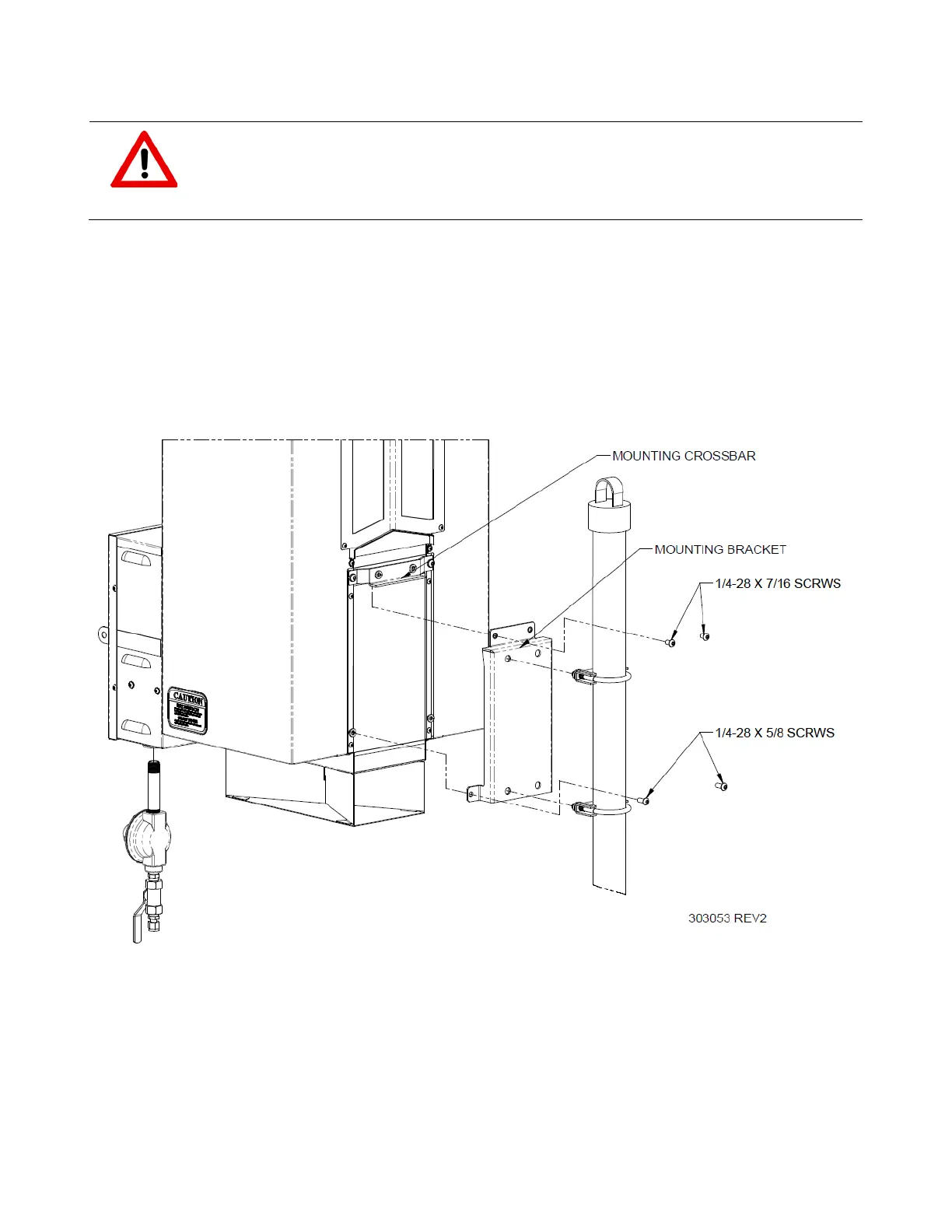

Figure 6 – Mounting the Sentinel TEG
