Graco Reactor E-20 Series User Manual

Parts
312066ZAD 65

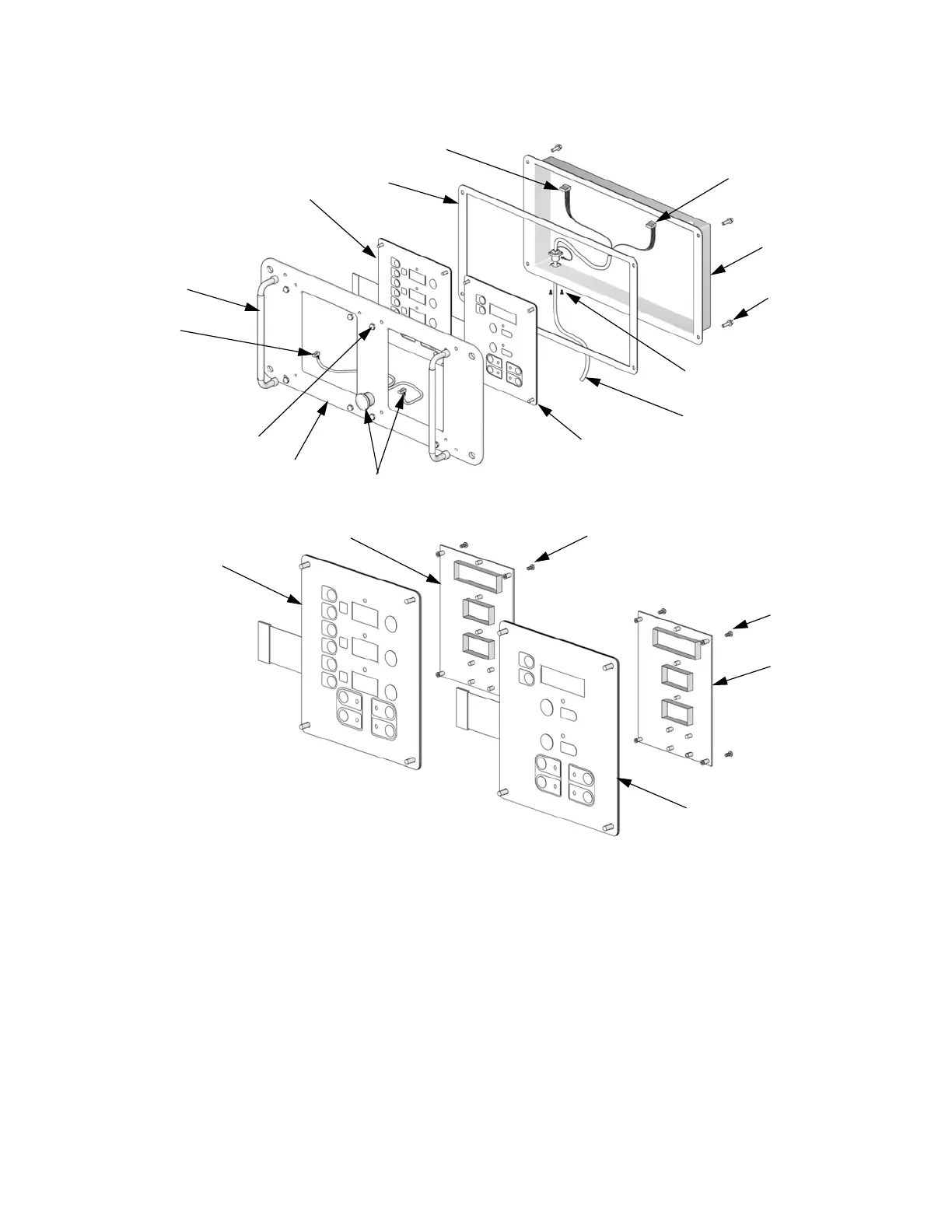

Display
--- Not for sale.
ti2574a
502
501
503
504
505
506
507
508
510
511
512
506
511
ti3172a
501a
501c
501b
502b
502c502a
20 (Ref)
Ref. Part Description
Qty
.
501 24G884 DISPLAY, pressure; includes
501a-501c
1
501a 24G882 .BOARD, circuit
1
501b 246478 .SWITCH, membrane
1
501c 112324 .SCREW
4
502 24G883 DISPLAY, temperature; includes
502a-502c
1
502a 24G882 .BOARD, circuit
1
502b 246479 .SWITCH, membrane
1
502c 112324 .SCREW
4
503 15B293 GASKET
1
504 15B292 COVER
1
505 15B291 PLATE
1
506 246287 HARNESS, wire, red stop button
1
507 117499 HANDLE
2
508 117523 NUT, cap; 10-24
8
510 --- SCREW, machine, pan-hd; M5 x
0.8; 16 mm
4
511 15B386 CABLE, display
1
512 195853 SCREW, machine; M2.5 x 6
2
Ref. Part Description
Qty
.
