248669 Conversion Kit
312066ZAD 73
248669 Conversion Kit
Convert and phase E-XP2 to and E-30 with 15.3 kW of
heat by changing displacement pumps, bearings, and
changing the Motor Control DIP settings to that of an
E-30. For removal and installation of displacement
pumps and bearings, see Pump Removal (page 27)
and Pump Installation (page 29). For changing Motor
Control DIP settings, see Motor Control Board, page
37.
Ref. Part Description
Qty
.
65 118463 ELBOW, swivel; 3/4 npt(m) x 1 in.
npt(f)
2
303 245927 HOUSING, bearing 2
306A 246832 PUMP, displacement, component
A; see 309557
1
306B 245972 PUMP, displacement, component
B; see 309577
1
316 193394 NUT, retaining 2

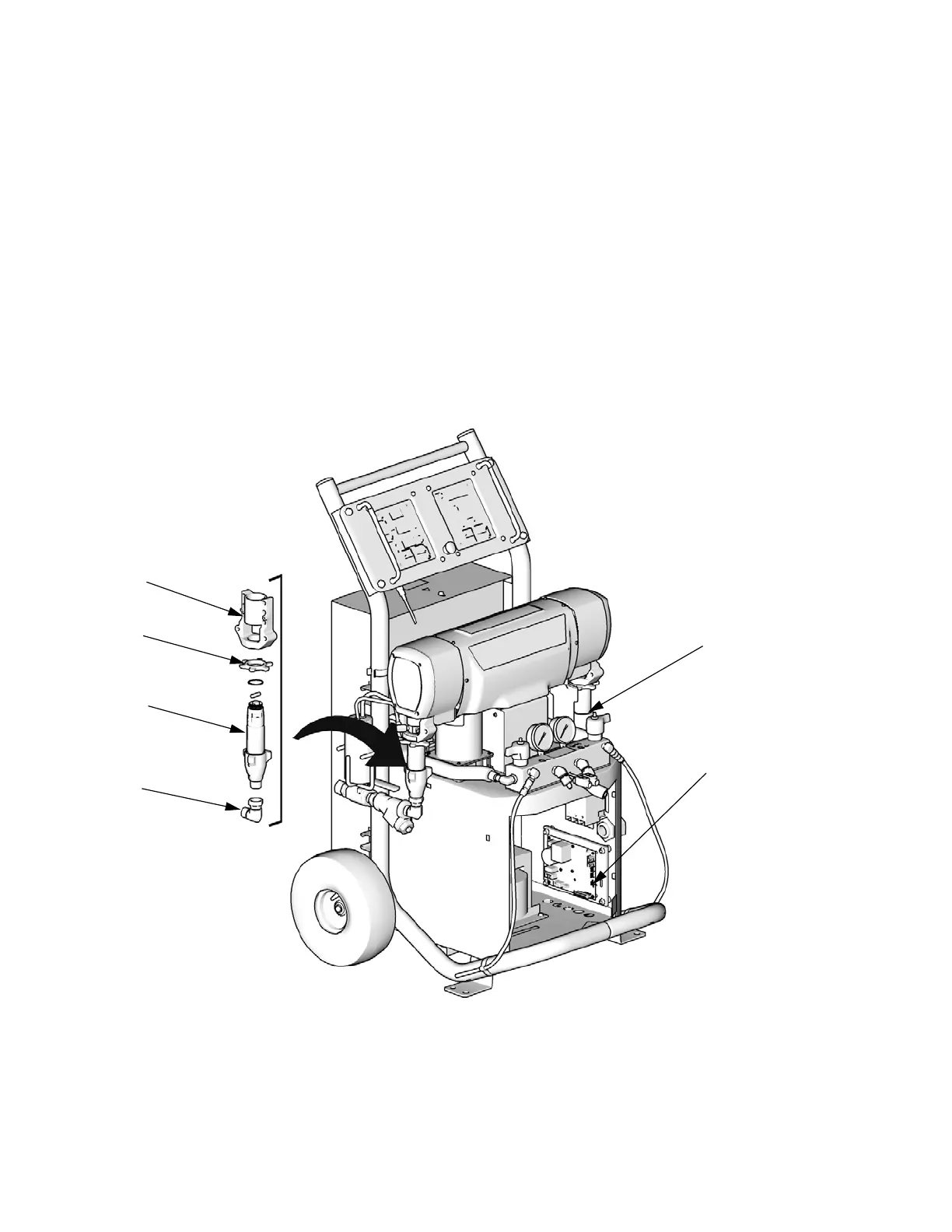

TI10966a
303
316
306B
65
306A
24G881 Motor
Control Board
DIP Switch
(SW2) need to
be set for an
E-30. 1,2,3, ON -
4OFF.See page
37.
