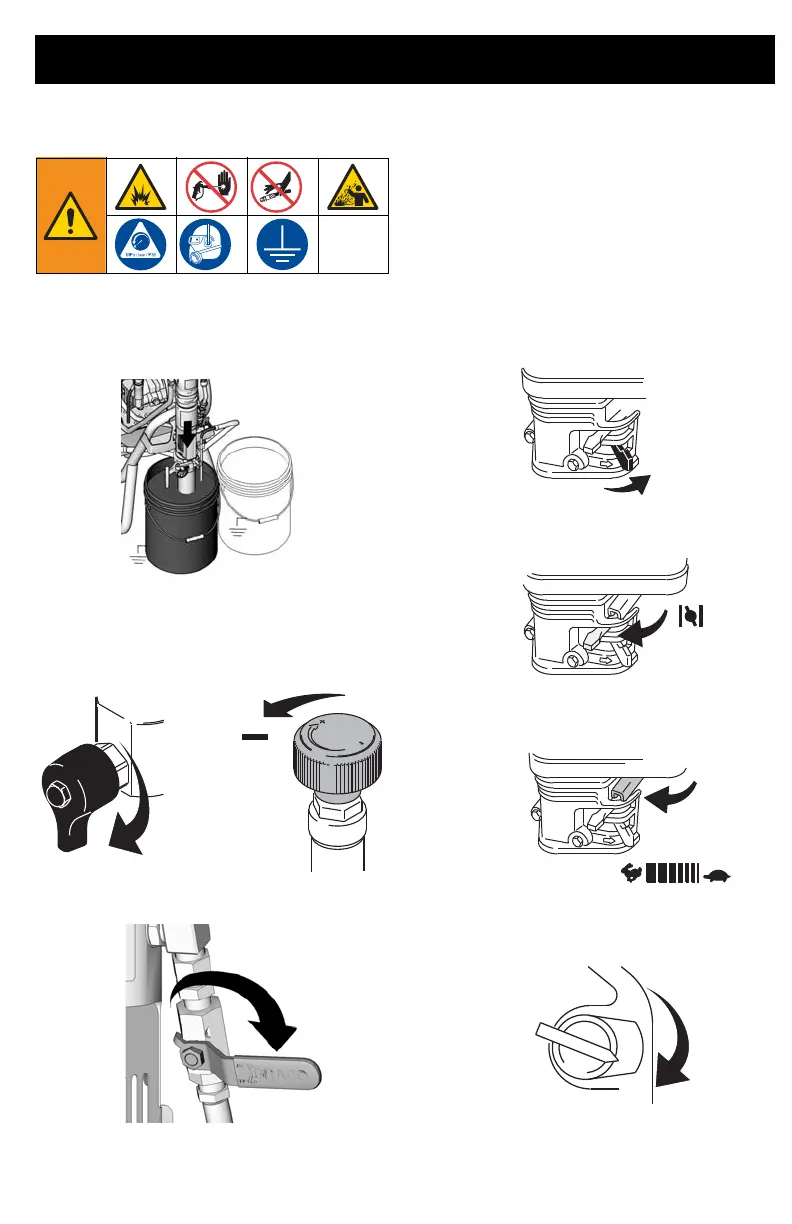

Startup (Gas Models)
1. Place displacement pump in grounded
metal pail partially filled with flushing
fluid. Attach ground wire to pail and to
earth ground.
2. Turn prime valve down to DRAIN
position. Turn pressure control
counterclockwise to lowest pressure.
3. Set hydraulic pump valve OFF.
4. Start engine.
a. Move fuel valve to open.
b. Move choke to closed.
c. Set throttle to fast.
d. Set engine switch to ON.
ti9692a
WLE
ti9686a
ti5248a
ti5249a
ti5250a
ti5262a
