Graco Standard Series User Manual

Parts
334606B 59

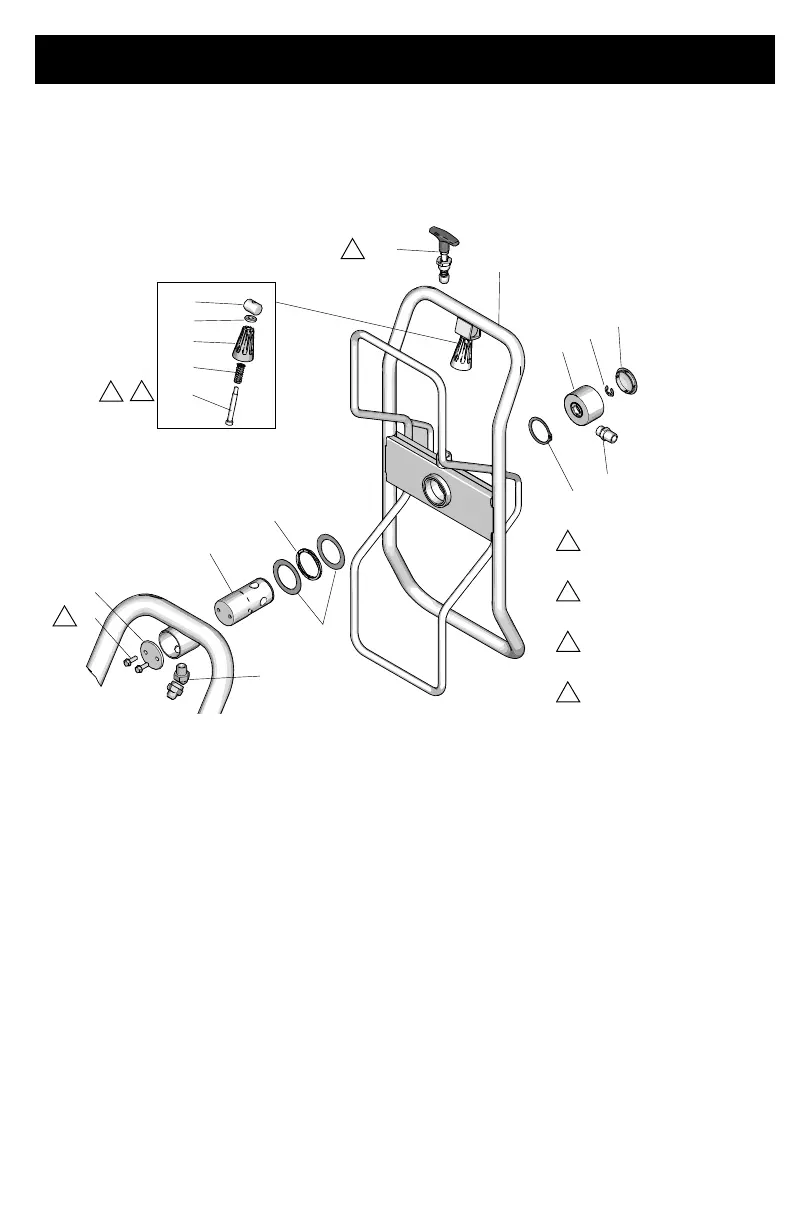

Parts - Hose Reel
ProContractor Series Only
Parts List - Hose Reel (ProContractor Sprayers)
Ref. Part Description Qty.
6 161889 FITTING, union swivel
45°
1
8 260212 SCREW, hex washer
hd
2
9 16C975 PLATE, pivot mount 1
201 24E016 TUBE, hose reel, pivot 1
203 122607 WASHER, flat 2
204 122534 SPRING, wave 1
205 24B691 REEL, hose 1
206 122524 RING, retaining,
external
1
208 24B248 CAP, swivel, complete 1
209 122347 RING, retaining,
external
1
210 122787 CAP 1
211 24E400 PIN, pop, lock out 1
212 278085 HANDLE, swivel 1
213 122518 SCREW, shoulder, sch 1
214 122542 SPRING 1
215 122669 WASHER, flat 1
216 15X618 NUT, swivel, handle 1
221 162485 ADAPTER (models
24W942, 24W962)
1
116756 ADAPTER (models
24W966, 24W968)
1
159239 ADAPTER (models
24W966, 24W968)
1
Ref. Part Description Qty.
ti25338a
210
209
208
221
206
205
211
216
215
212
214
213
203
204
201
9
6
8
2
3
4
1
Torque to 120-130 in-lbs
(13.6-14.7 N·m)
Torque to 25-35 ft-lbs
(33.9-47.5 N·m)
Torque to 130-150 in-lbs
(14.7-16.9 N·m)
Loctite 277
1
2
3
4
