Startup (Electric Models)
24 334606B

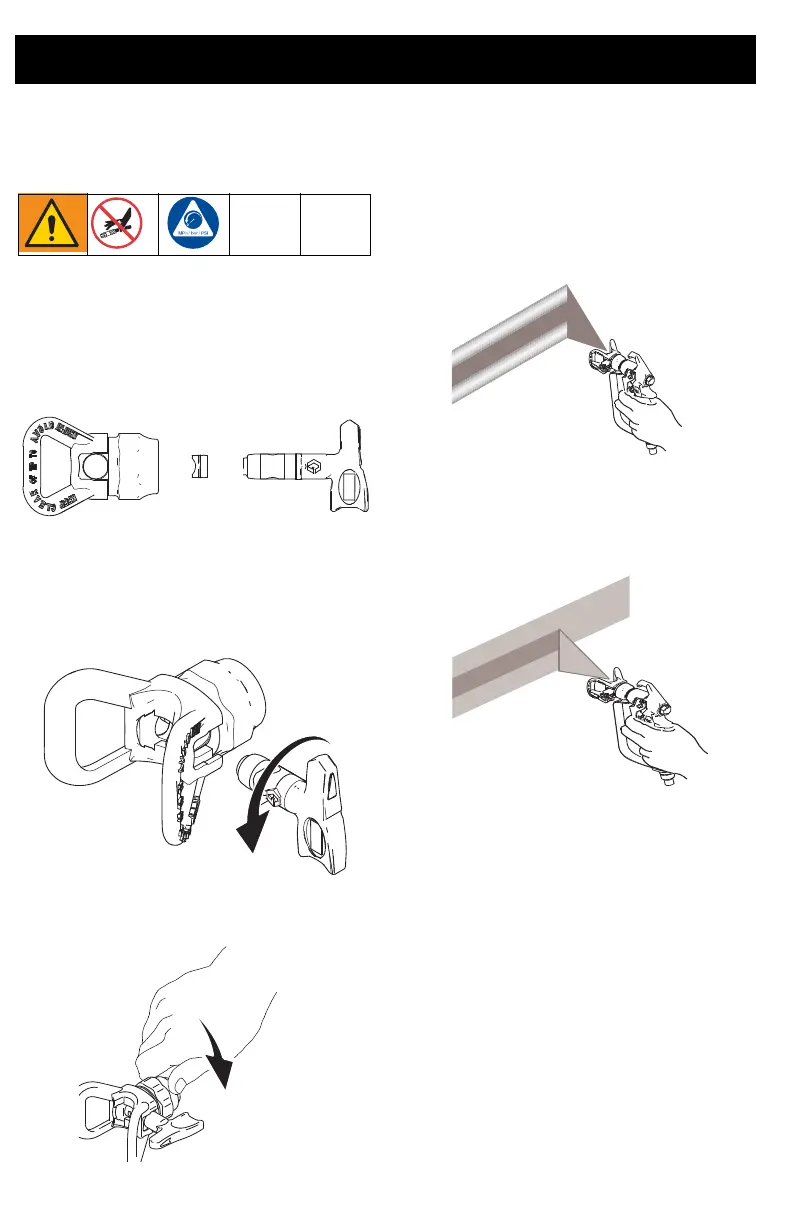

Switch Tip
™
and Guard
Assembly
1. Perform Pressure Relief Procedure,
page 15.
2. Engage gun trigger lock. Insert Switch
Tip. Insert seat and OneSeal™.
3. Insert Switch Tip and face forward.
4. Screw assembly onto gun. Tighten.
Spray
1. Spray test pattern. Increase pressure to
eliminate heavy edges. Use smaller tip
size if pressure adjustment can not
eliminate heavy edges.
2. Hold gun perpendicular, 10-12 in. (25-30
cm) from surface. Spray back and forth.
Overlap by 50%. Trigger gun after
moving and release before stopping.
m
ti13023a
ti13024a
ti2710a
ti13030a
ti13025a
