Graco Standard Series User Manual

Parts
58 334606B
Parts
DutyMax EH/GH
™
230DI Sprayer - Spray Gun and Hose
DutyMax EH/GH
™
300DI Sprayer - Spray Gun and Hose
Ref. Part No. Description
Qty.
202a 240797 HOSE, grounded, nylon; 3/8 in.
ID; cpld 3/8-18 npsm; 50 ft (15
m); spring guards both ends
2
202b 241735 HOSE, grounded, nylon; 1/4 in.
ID; cpld 1/4 npt(m) x 1/4
npsm(f); 3 ft (0.9m); spring
guards both ends 3300 psi (227
bar, 22.7 MPa)
1
202c 241705
GUN, spray, texture, Includes
RAC
©
Tip Guard and LTX531
Spray Tip Cylinder, See 308491 for
parts
1
202d 159841 ADAPTER, 3/8 x 1/4 in. npt 1
202e 239663 SWIVEL, straight 1
202f 162485 ADAPTER, nipple 2
Ref. Part No. Description Qty.
225a 159239 FITTING, nipple, pipe, rdcg 3
225b 191239 HOSE, cpld, 3/8 in. x 11 ft 10 in. 1
225d 245820
KIT, accessory, gun 1
225f 278499 HOSE, cpld, 1/2 in. x 50 ft,
3300 wp
2
225g 158491 FITTING, nipple 1
225h 159239 FITTING, nipple 1

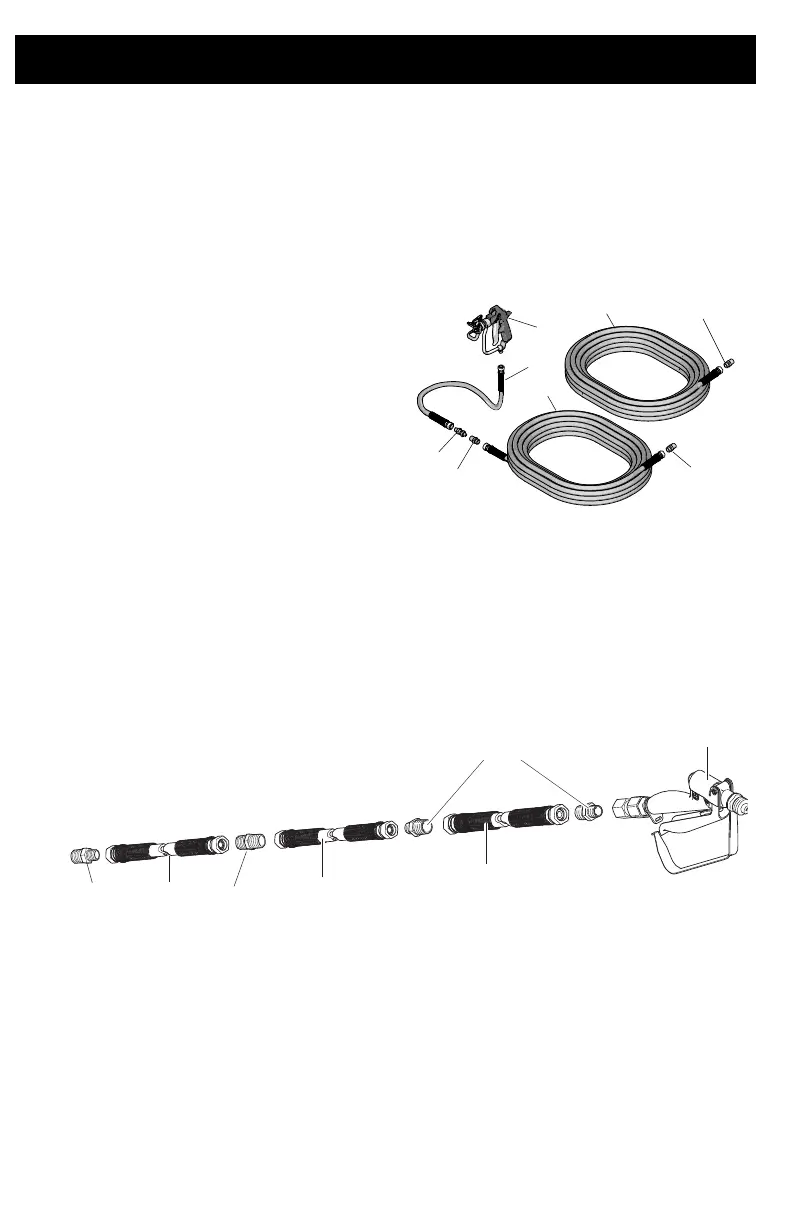

ti25484a
202a
202b
202c
202d
202e
202f
202f
202a
225f
225d
225b
225a225a
225f
225h
225g
ti25483a
