Gree GMV-224WL/C-X User Manual

DC Inverter Multi VRF System
7
4 Installation Instruction
Note: Graphics here are only for reference. Please refer to actual products. Unspecified
dimensions are all in mm.
4.1 Dimension of Outdoor Unit and Mounting Hole

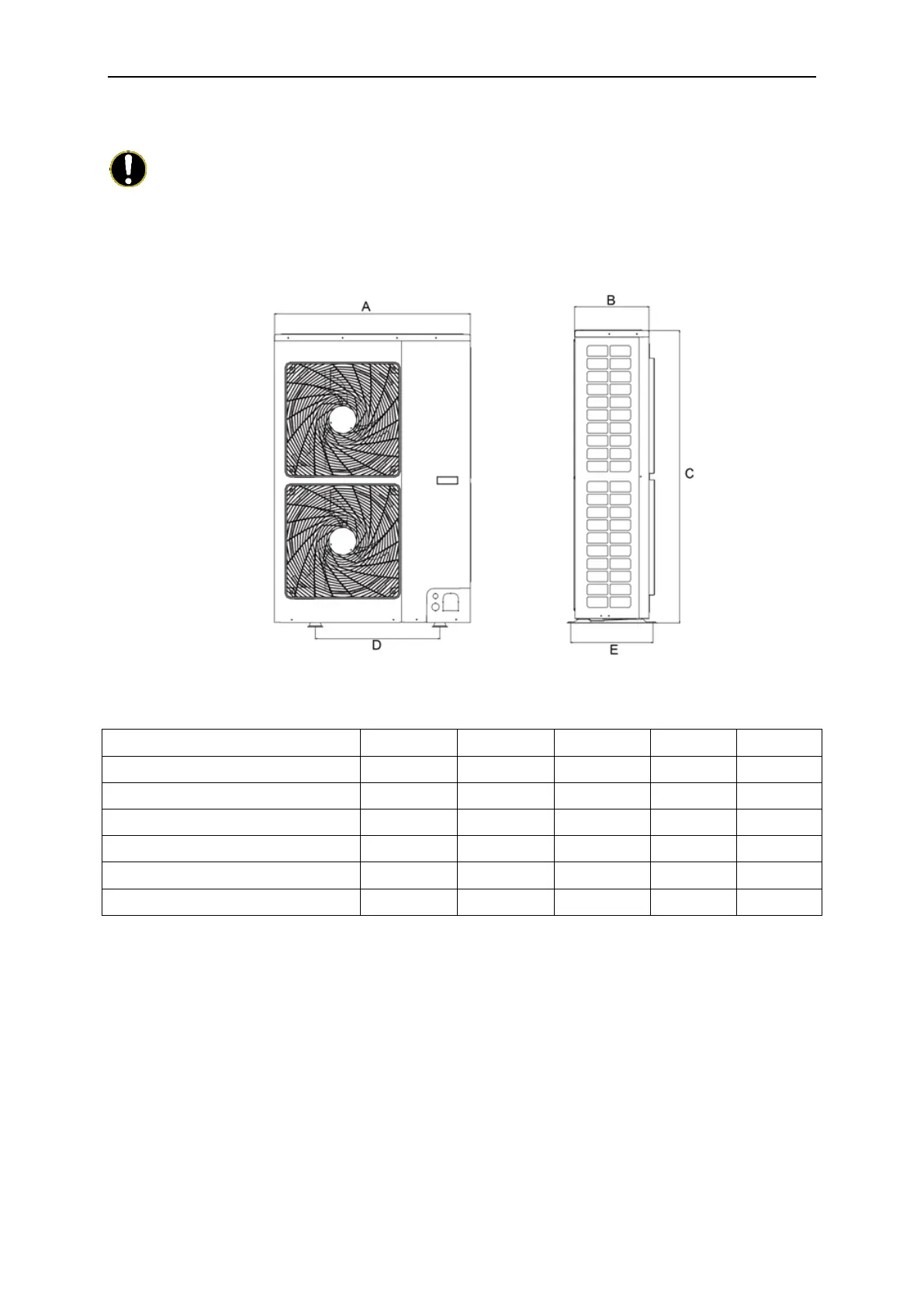

Unit Outline and Installation Dimension（mm）
Fig.3
in mm
型号
A
B
C
D
E
GMV-H224WL/A-X
940
320
1430
632
350
GMV-H280WL/A-X
940
460
1615
610
486
GMV-H335WL/A-X
940
460
1615
610
486
GMV-224WL/C-X
940
320
1430
632
350
GMV-280WL/C-X
940
460
1615
610
486
GMV-335WL/C-X
940
460
1615
610
486
