Gree GMV-224WL/C-X User Manual

DC Inverter Multi VRF System
8
4.2 Connection Pipe

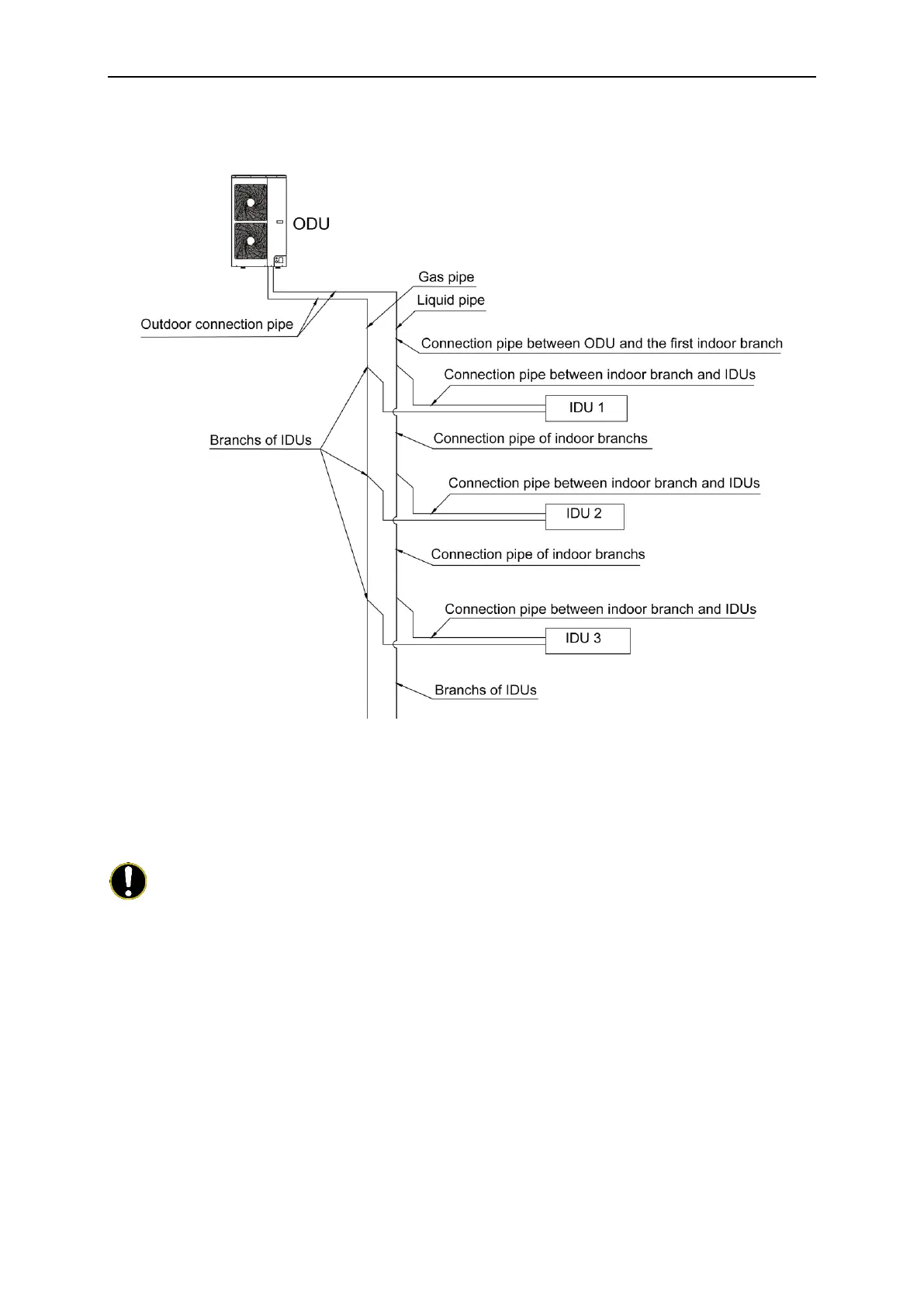

4.2.1 Schematic Diagram of Piping Connection
Fig.4
4.2.2 Allowable Length and Height Difference of Connection Pipe
Y type branch joint is adopted to connect indoor and outdoor units. Connecting method is
shown in the figure below:
Note：Equivalent length of one Y-type branch is 0.5m.
