GREE DC Inverter Side Discharge VRF Ⅱ for North America
111
Name
Function introduction
PFC module
Four diodes and two MOS pipe are
intergrated inside the PFC module. It will
transform AC input power into DC power.
Meanwhile, MOS pipe is controlled by PWM
wave. Pressure will be increased by
induction.

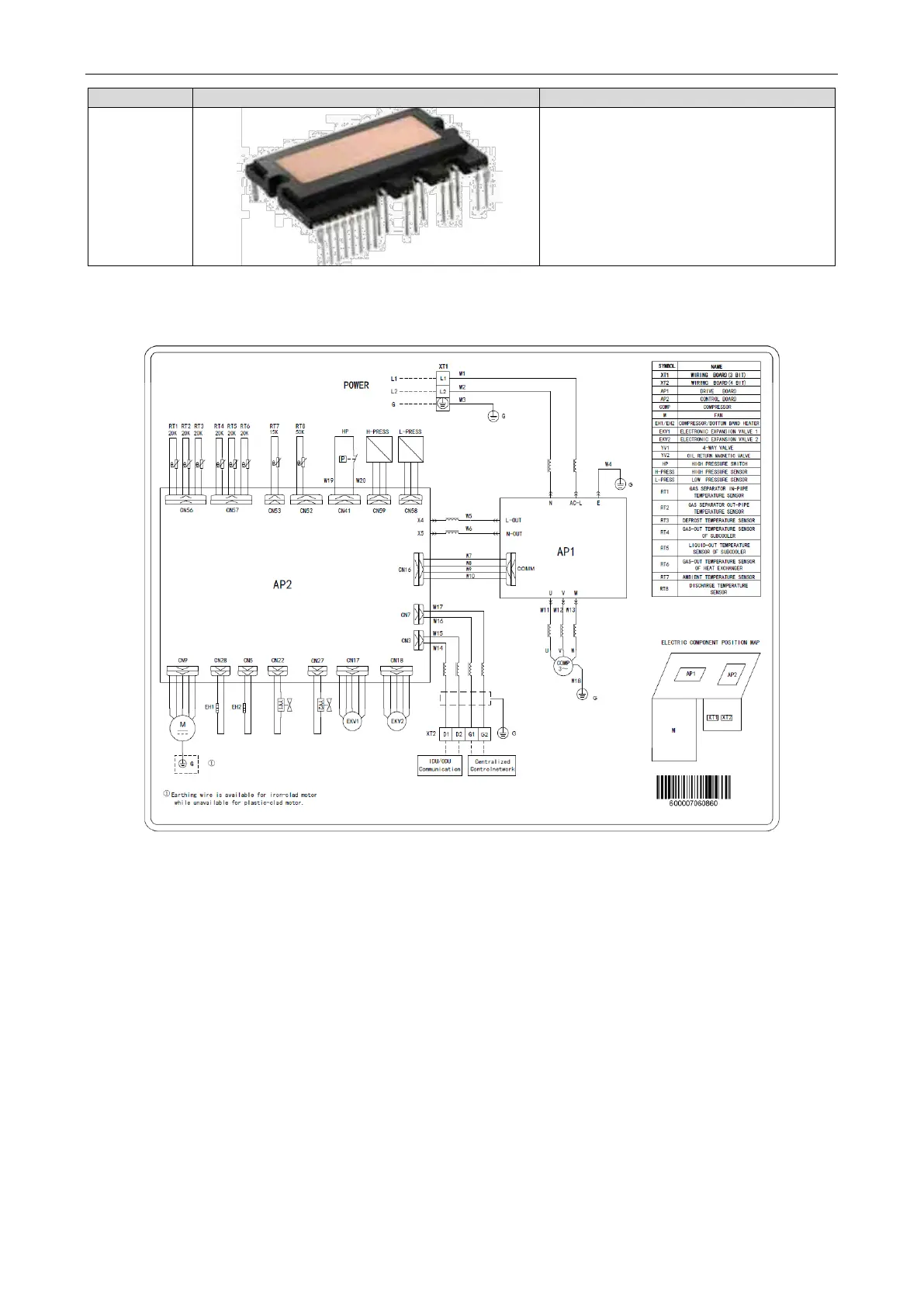

3.3 Circuit diagram
GMV-24WL/C-T(U)
、
GMV-28WL/C-T(U)
